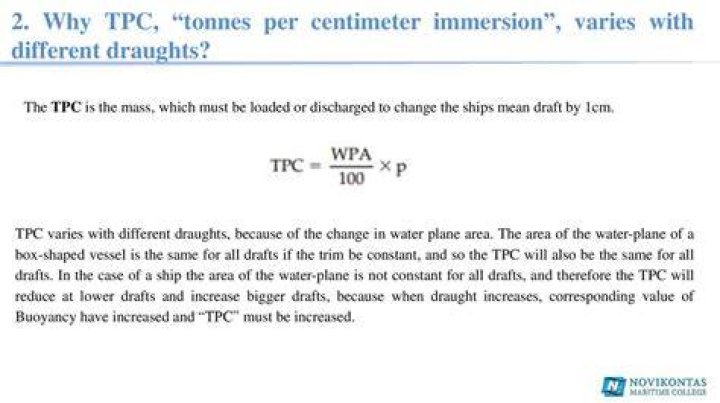

The TPC varies with the draught and with the water density. ... The area between the TPC curve and the draught axis to any given draught represents the displacement of the ship at that draught, while its centroid represents the vertical position of the centre of buoyancy.

What is TPC in fresh water allowance?

where, TPC = the tonnes per centimetre immersion.

What is the relationship between the displacement and mean draught?

Displacement is the volume of water the vessel displaces. Draught relates to the depth of water required for a vessel to float freely and is measured vertically from the underneath side of the keel to the waterline.

What does TPC mean in shipping?

Abstract. This chapter discusses tonnes per centimeter (TPC) and displacement curves. The TPC is the mass that must be loaded or discharged to change the ship's mean draft by 1 cm.

What is TPC in stability?

What is TPC ( Tonnes Per Centimeter )? The TPC for any given draught is the weight that must be loaded or discharged to change the ship's mean draught by one centimetre.

TPC - tonnes of cargo per centimeter of draft.

How is DWA calculated?

The amount of the DWA is simply a fraction of the FWA as shown, in this case 3/5ths or 15/25ths of the FWA value.

Why the draught of a ship decreases when it passes from fresh water to seawater and vice versa?

Sarathchandran Rajan. To maintain the reserve buoyancy vessels are only allowed to load up to the summer load line at sea water. When the vessel moves from saltwater to fresh water due to the difference in density the vessel will sink so that summer loadline will submerge below water line.

Can displacement be curved?

Displacement Curves

A displacement curve is one from which the displacement of the ship at any particular draft can be found, and vice versa. The draft scale is plotted on the vertical axis and the scale of displacements on a horizontal axis.

Why the draught of a ship decreases when it passes from fresh water to sea water?

The draft will change because the ship must displace the same mass of water, which no longer has the same density. ) must change; therefore, the ship's draft will change automatically. If a ship goes from fresh water to salt water, buoyancy will increase and the draft will decrease.

What is DWA and FWA?

By. The Fresh Water Allowance is the number of millimetres by which the mean draft changes when a ship passes from salt water to fresh water, or vice versa, whilst floating at the loaded draft. FWA(in mm) = Displacement (in tonnes)/(4*TPC) DOCKWATER ALLOWANCE(DWA)

What is loll in ship stability?

Angle of loll is the state of a ship that is unstable when upright (i.e. has a negative metacentric height) and therefore takes on an angle of heel to either port or starboard. ... When this occurs, the vessel goes to neutral equilibrium, and the angle of heel at which it happens is called angle of loll.

What is transverse stability?

Transverse Stability is the ability of the vessel to return to vertical when she has been heeled. The heeling could be because of an external force including the action of the sea and swell. It is always necessary to maintain stability even when a vessel has altered distribution of weights within the ship.

What is km in ship stability?

KM is the distance from the keel to the metacentre. Stable floating objects have a natural rolling frequency, just like a weight on a spring, where the frequency is increased as the spring gets stiffer. ... Metacentre is determined by the ratio between the inertia resistance of the boat and the volume of the boat.

What is the displacement of a ship?

The displacement of a ship, D, is defined as the number of tones of water it displaces. The volume of displacement, V, is the underwater volume of a ship afloat i.e. the volume below the waterline.

What is difference between distance and displacement?

Distance is a scalar quantity that refers to "how much ground an object has covered" during its motion. Displacement is a vector quantity that refers to "how far out of place an object is"; it is the object's overall change in position.

Can velocity be negative?

An object which moves in the negative direction has a negative velocity. If the object is slowing down then its acceleration vector is directed in the opposite direction as its motion (in this case, a positive acceleration).

What is ascent time?

time of ascent is time taken by particle to reach it's highest position when thrown vertically upwards. time of decent is time taken by particle to return from Max height to initial position. Time of of flight is the the time for particle remains in air Or it is the sum of time of ascent and time of decent.

Why does the position of the ship is higher on the sea water?

This is because the weight of sea water is more than that of a fresh water due to dissolved salts and minerals. Therefore a ship ( miniature or real ) will float a little deeper in river then that at sea.

When a ship enters from river to sea it rises upwards Why?

A ship rises a little when enters the sea from a river. Because of salinity, seawater has more density than river water. In the sea, the more buoyant force is exerted upon the ship than in the river.

What is the difference between water draft and air draft?

Air draft (or air draught) is the distance from the surface of the water to the highest point on a vessel. This is similar to the "deep draft" of a vessel which is measured from the surface of the water to the deepest part of the hull below the surface, but air draft is expressed as a height, not a depth.

What is TPC tons per centimeter?

By. The Tonnes Per Centimetre Immersion(TPC) for any draft is the mass which must be loaded or discharged to change a ship's mean draft in salt water by one centimetre. The TPC varies with the draught and with the water density.

What is Dock water?

When a vessel moves from salt water to water of lower density it will increase its draught and vice versa. The amount of change is known as the “dock water allowance”.
