Explanation: Tolerances are provided to the parts because variations in the material properties introduce errors and production machines themselves have inherent inaccuracies.

What is a bilateral tolerance Mcq?

Bilateral Tolerance is concerned with equal variations in both the directions either plus or minus.

What is a bilateral tolerance?

Bilateral tolerance is the term used when the tolerance zone is distributed from the target value or true profile in both directions. Bilateral tolerances allow equal variation on each side of the target. ... The tolerance zone for this case can be visualized as the space between the two concentric arcs shown in blue.

What are functional dimensions?

Functional dimensioning (FD) is a dimensioning system designed to define the dimensions of an element so that its function (e.g., sliding of the piston in its support or a drawer) can be ensured regardless of the incoming part and the receiving one.

Which of the following is not true about interchangeability?

Which of the following option is incorrect about interchangeability? Explanation: An interchangeable part is one that can be replaced with a similar part manufactured to the same drawing. It can be used in mass production with an economic oriented approach. Assembly time decreases as mating parts are interchangeable.

How to choose tolerance value for the dimension: Engineering Limits & Tolerance

Why tolerances are given to parts?

Explanation: Tolerances are provided to the parts because variations in the material properties introduce errors and production machines themselves have inherent inaccuracies. Another reason to introduce tolerance is that it is not possible to make perfect settings by operator so some tolerances are provided.

What are the main consideration for deciding the limits of particular part?

Explanation: The main considerations for deciding the limits of a particular part are interchangeability, functional requirement and economics. There should be an option to replace the part in case of any defect and the system should have proper tolerance towards the replacement.

What is tolerance of limits and fits system?

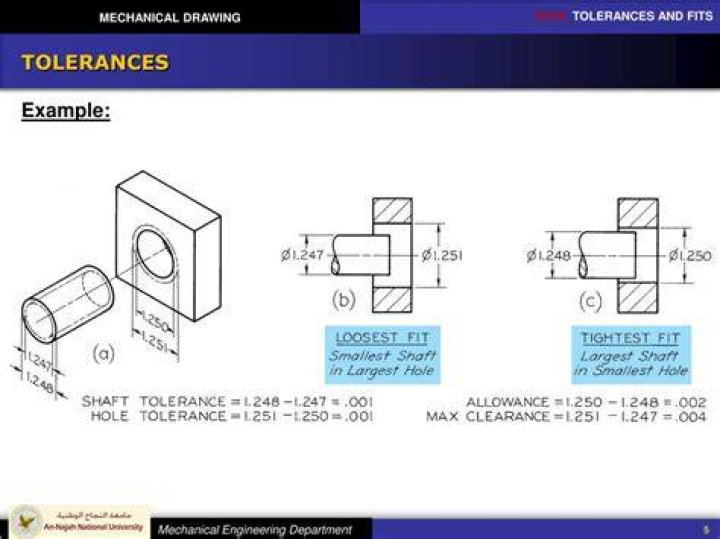

Tolerance is defined as the total permissible variation of a size. It is the difference between maximum limit and minimum limit of size. 1.2 Fits. When two parts are to be assembled the relation resulting from the difference between their sizes before assembly is called a fit.

What is bilateral tolerance Examveda?

In a bilateral system of tolerance, the tolerance is allowed on Both sides of the nominal size. Bilateral Tolerance is concerned with equal variations in both the directions either plus or minus.

What is limit system?

In mechanical engineering System of limits or Limit System is a concept of controlling the sizes of machine elements while manufacturing each component. ... So limit system enables how much amount of deviation is acceptable.

Why are tolerances important in manufacturing?

This is why tolerances are important in manufacturing. Tolerances determine exactly how much room for error you have when you manufacture each part. When you appreciate the vital role that tolerances play in the manufacturing process, you'll design higher quality products and make fewer costly manufacturing mistakes.

How are tolerances determined?

The tolerance is the difference between the maximum and minimum limits.” This can be shown as upper and lower limits (0.2500over0. 2498) or an allowable amount above and below a nominal dimension (0.2500+0.0000over−0.0002, 0.2499 ±0.0001). ... Conversely, a smaller tolerance band is considered a “tighter” tolerance.

Why is unilateral tolerance preferred over bilateral?

In contrast to bilateral, a unilateral tolerance will allow the deviation to extend from one side of the true profile line or the other. ... Beside that is the amount of tolerance that determines which side of the true profile line to which the zone will extend.

What is 8s tolerance?

1 : capacity to endure pain or hardship : endurance, fortitude, stamina. 2a : sympathy or indulgence for beliefs or practices differing from or conflicting with one's own. b : the act of allowing something : toleration.

How many grades of tolerances are there according to BIS system fits and tolerances?

As per BIS system of Limits and fits, there are 18 grades of tolerances represented by number symbols from IT01, IT0, IT1 to 16.

How many grades of tolerances does the ISO Mcq?

Detailed Solution. Explanation: Limits and fits comprise 18 grades of fundamental tolerances for both shaft and hole, designated as IT01, IT0 and IT1 to IT16. These are called standard tolerances.

Which tolerance is provided during mostly?

Mostly unilateral tolerance is provided in drilling as dimension is allowed to vary in one direction only.

What is natural tolerance?

Natural tolerances are expectations regarding deviations, represented by control limits set at three times the standard deviation above and below the mean. When in place, the limits demonstrate a 99.73% chance that any given result will occur between the given control limits.

How many grades of tolerances are there in the Indian standard system?

NOTE - The IS0 system provides for a total of 20 standard tolerance grades of which grades IT1 to IT18 are in general use and are given in the main body of the standard. Grades IT0 and ITOl, which are not in general use, are given in annex A for information purposes.

What are the 3 types of tolerances?

These are grouped into form tolerance, orientation tolerance, location tolerance, and run-out tolerance, which can be used to indicate all shapes.

Why are limits and fits important?

Limits and Fits are used to define tolerances for mating parts. Limits are most commonly used for cylindrical holes and shafts, but they can be used for any parts that fit together regardless of the geometry. A limit is the upper and lower tolerance for a shaft or hole.

What is interference fit tolerances?

Conversely, an interference fit is a fit where there will always be overlap in the joint between the specified mating shaft/hole, even at the minimum material condition values allowed by the shaft and maximum value allowed by the hole tolerance values (i.e., the largest hole and the smallest shaft).

Why is there a need to select and limit a research topic?

The research process is more relevant if you care about your topic. Narrow your topic to something manageable. If your topic is too broad, you will find too much information and not be able to focus.

What are your considerations when looking for a particular information?

Answer: When we look for a particular information we must consider the source of the information if it is reliable or trustworthy, the author where the information came from, and lastly the spelling and the use of correct punctuation marks and grammar.

What is equal to the differences of the two limits of size of the part?

Tolerance: It is the difference between the maximum limit of size and the minimum limit of size.
