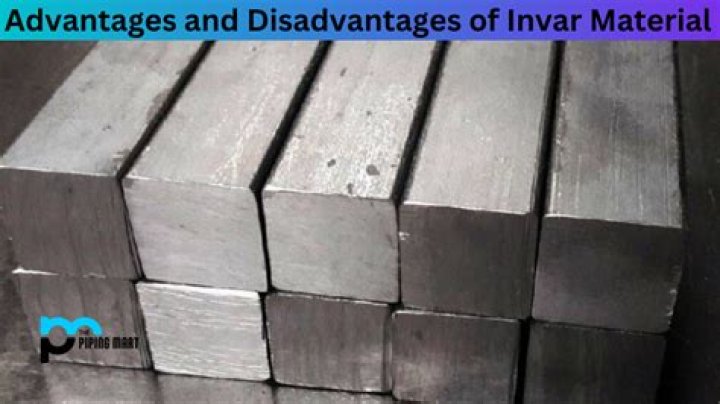

Invar alloys are widely known and utilized because they exhibit a coefficient of thermal expansion (CTE) that is close to zero. The fact that Invar maintains this low CTE over room temperature has made it one of the most effective alloys for use in precision instruments.

What precision instruments are made of Invar steel?

Invar is used where high dimensional stability is required, such as precision instruments, clocks, seismic creep gauges, television shadow-mask frames, valves in engines and large aerostructure molds. One of its first applications was in watch balance wheels and pendulum rods for precision regulator clocks.

What is the use of Invar steel?

Invar, alloy of iron that expands very little when heated; it contains 64 percent iron and 36 percent nickel. Invar was formerly used for absolute standards of length measurement and is now used for surveying tapes and in watches and various other temperature-sensitive devices.

Why pendulum of a clock is made up of Invar?

Invar is a nickel-iron alloy which is known for its low coefficient of thermal expansion. Since, its length remains almost constant for temperature change, therefore it is used to make the clock's pendulum.

Why are measuring tapes prepared from alloy Invar?

Invar, an alloy of nickel and steel having a very low coefficient of expansion, resolved the thermal expansion problem associated with the use of other metal rods and tapes for distance measurement. ... The alloy was named invar, from invariable, to reflect its low coefficient of expansion.

The Material Science of Metal 3D Printing

What is Invar tape made of?

Invar is a 36% nickel & 64% steel alloy which has the lowest thermal expansion among all metals and alloys in the range from room temperature up to approximately 230°C.

Which metal is used to manufacture the metallic tape?

Metallic Tape is reinforced with copper wires to prevent stretching or twisting of fibers. They are available in many lengths but tapes of 20 m and 30 m are more commonly used. Steel Tape is made of steel ribbon varying in width from 6 mm to 16 mm.

What is invar Why is invar used in making pendulum clocks Class 7?

Invar is an alloy which has a small coefficient of linear expansion. The length of a pendulum made of invar does not change with temperature and hence the time period of oscillation remains the same. Hence the time shown by the clock is accurate. That's why 'invar' is used for making the pendulum of a clock.

Is invar magnetic?

Invar, also known as Nickel Alloy 36, is a nickel-iron alloy noted for its uniquely low coefficient of thermal expansion. ... Invar is therefore always magnetic in the temperature range in which it exhibits the low expansion characteristics. Invar is the standard alloy for low expansivity up to 400 ^oF.

What metals are used in clocks?

Brass, an alloy of copper and zinc, is traditionally used to manufacture plates, bridges, various components and bearings for clocks and watches.

What is Invar alloy why is it made and how is it made?

Invar is derived from word invariable. It is an alloy which is made from nickel and iron. It has low coefficient of thermal expansion. So there will not be linear expansion of pendulum due to the rise in temperature.

What is Hastelloy made of?

Hastelloy® (milled by Haynes) is a nickel-molybdenum alloy. There are many different grades of Hastelloy®, many of which are nickel-chromium-molybdenum alloys. Each of these grades has been optimized for a specific purpose, but all of them are highly resistant to corrosion.

Why Invar steel is not affected by temperature?

Fe-Ni alloys containing nickel concentration minimum 35 percent exhibit an exclusive low thermal expansion coefficient and their size is almost constant at and around room temperature. Hence they are known as INVAR alloys. ... It offers to stabilize the austenite and hence reduces the critical temperature.

What is Kovar and Invar?

Kovar is a nickel-iron-cobalt alloy known for its excellent thermal expansion characteristics. Invar is a nickel-iron alloy that exhibits superior dimensional stability across. extreme temperatures.

What makes the Super Invar resist thermal expansion?

Invar. Invar is made up of nickel and iron and is classified as a low expansion alloy. It has one of the lowest thermal expansion rates, exhibiting near zero coefficient, which makes it suited to applications where it is required to maintain constant dimensions in changing temperatures.

Is Invar stainless steel?

Invar is a 36% nickel-iron alloy which has the lowest thermal expansion among all metals and alloys in the range from room temperature up to approximately 230°C. The Invar alloy is ductile and easily weldable, and machinability is similar to austenitic stainless steel.

Is Invar a ceramic?

Solid-State Materials, Including Ceramics and Minerals

For example, Invar is an alloy (Fe₆₅Ni₃₅) that is considered to have zero thermal expansion at room temperature. Its low thermal expansion behavior arises due to magnetostriction.

Is copper a steel or iron?

Steel is a metal alloy, whereas Copper occurs naturally, as one of the few metals that exists as an element in its natural form in the world. Steel consists of iron and varying amounts of carbon; on the other hand, copper is a chemical element with the symbol Cu, and atomic number 29.

What material is the pendulum of clock and why?

Steel is used for the pendulum rod in simple ordinary clocks because it is cheap and has relatively low thermal expansion. Wood is sometimes recommended because of its low linear thermal expansion coefficient along the grain, but it is an inherently unstable material.

Which of the following alloy is used for making clock pendulum?

Thus, invar is used in the pendulum of the clock. Invar, also known as Nickel Alloy 36, is a nickel-iron alloy noted for its uniquely low coefficient of thermal expansion.

Why do clocks have pendulums?

pendulum, body suspended from a fixed point so that it can swing back and forth under the influence of gravity. Pendulums are used to regulate the movement of clocks because the interval of time for each complete oscillation, called the period, is constant.

What steel are tape measures made of?

Blade material: The three materials most commonly used for tape measure blades are steel, stainless steel and fiberglass. Steel blades are durable, practical and economical.

What steel is used in tape measure?

Whilst the majority of tape measures sold today have a steel blade, tapes are also available in a variety of other materials, ideally suited to particular environments, applications or even personal preferences. Stainless steel tapes, for example, are corrosion resistant and ideal for use around water.

Who invented the tape measure?

On July 14, 1868, a Connecticut man named Alvin J. Fellows patented the spring-click tape measure.
