Bus network topologies are used when a small, cheap and often temporary network is needed that does not rely on very high data-transfer speeds. They may be used in locations such as a laboratory or office.

Where is bus topology used?

A bus topology is used in a LAN (Local Area Network) where different nodes are linked to a particular cable otherwise a single backbone. A coaxial cable/RJ-45 cable is used to connect different devices. In a bus topology, when the cable has any problem then the entire network will not work.

Why bus topology is best?

Advantages of Bus Topology :

It works very efficient well when there is a small network. Length of cable required is less than a star topology. It is easy to connect or remove devices in this network without affecting any other device. Very cost-effective as compared to other network topology i.e. mesh and star.

Why terminators are used in bus topology?

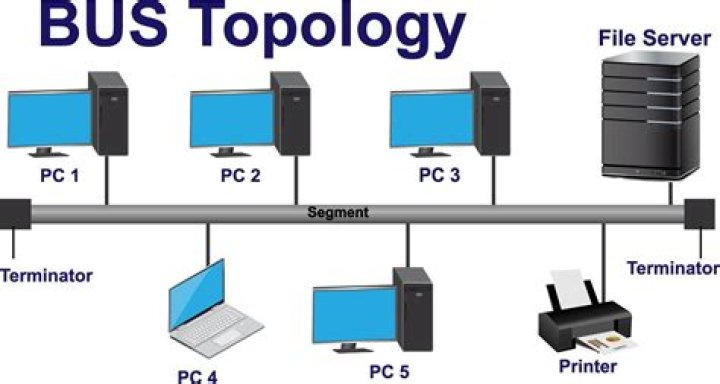

A bus topology consists of a central cable — known as the backbone — that is used to connect all the devices. Terminators are used at the end of the cable, so that the electrical signal does not bounce back. In a bus topology, the signal sent via the main cable reaches all the connected devices.

What are the advantages of using a common bus?

• Versatility:
• New devices can be added easily.
• Peripherals can be moved between computer.
• Low Cost:
• A single set of wires is shared in multiple ways.

Bus Topology

How does bus topology works?

In a bus topology , all nodes in the network are connected directly to a central cable that runs up and down the network - this cable is known as the backbone . Data is sent up and down the backbone until it reaches the correct node.

Do we still use bus topology?

If the bus topology has two endpoints then it is referred to as a linear bus topology. Smaller networks with this type of topology use a coaxial or RJ45 cable to link devices together. However, the bus topology layout is outdated and you're unlikely to encounter a company using a bus topology today.

How does bus topology transmit data?

Bus Topology

When a workstation has to send data, it transmits packets with destination address in its header along the bus. The data travels in both the directions along the bus. When the destination terminal sees the data, it copies it to the local disk.

Which cable is used in bus topology?

Bus topologies use coaxial cable. Bus topology sections are connected with BNC connectors. T connectors are often used to connect the computer to the trunk cable. The T connector can connect the computer to two sections of cable with the bus extending in both directions.

What equipment is used in a bus topology?

Alternatively referred to as line topology, bus topology is a network setup where each computer and network device is connected to a single cable or backbone. Depending on the type of computer network card, a coaxial cable or an RJ-45 network cable is used to connect them together.

Is bus topology point to point?

Network topology can be categorize in 2 main categories on the basis of connection: Point-to-point: a dedicated link between two devices. ... Bus Topology is a common example of Multipoint Topology.

How do bus networks work?

A bus network is a local area network (LAN) topology in which each node -- a workstation or other device -- is connected to a main cable or link called a bus. ... A bus network topology is simple and reliable. If one station fails to operate, the rest of the stations can still communicate with each other.

What is bus technology?

In computer architecture, a bus (shortened form of the Latin omnibus, and historically also called data highway) is a communication system that transfers data between components inside a computer, or between computers. ... and software, including communication protocols.

Why bus is used in computer?

Buses are used to send control signals and data between the processor and other components.

What are bus devices?

(1) A bus is a network topology or circuit arrangement in which all devices are attached to a line directly and all signals pass through each of the devices. Each device has a unique identity and can recognize those signals intended for it.

Why is bus essential for computer system?

The bus provides a communication path for the data and control signals moving between the major components of the computer system.

What are the advantages and disadvantages of a bus network?

• Easy to connect a computer or peripheral to a linear bus.
• Requires less cable length than a star topology.
• Entire network shuts down if there is a break in the main cable.
• Difficult to identify the problem if the entire network shuts down.
• Not meant to be used as a stand-alone solution.

What is the meaning of bus topology?

Bus topology is a specific kind of network topology in which all of the various devices in the network are connected to a single cable or line. In general, the term refers to how various devices are set up in a network.

Why bus topology is better than point topologies?

In comparison to the point to point topology, it's clear that bus topology possesses major advantages, for instant point to point topology can provide access to only two nodes whereas bus topology allows multiple nodes communication.

Why is bus topology slow?

if the main cable fails or gets damaged the whole network will fail. as more workstations are connected the performance of the network will become slower because of data collisions.

What are the advantages of topology?

Due to its centralized nature, the topology offers simplicity of operation. It also achieves isolation of each device in the network. Adding or removing network nodes is easy, and can be done without affecting the entire network. Due to the centralized nature, it is easy to detect faults in the network devices.

How many computers can be connected in bus topology?

In a bus topology, only one host can transmit data at a time only when the bus is free. In a star network, data should pass through the central hub before reaching the receiver node.

What is the speed of bus topology?

Functionality of Bus Network:

The information travels through the cable in both directions at an approximate speed of 10/100 Mbps or has resistance at its two ends (terminator). Network data sent in the form of electronic signals to all computers in the network.

Which topology is best?

A full mesh topology provides a connection from each node to every other node on the network. This provides a fully redundant network and is the most reliable of all networks. If any link or node in the network fails, then there will be another path that will allow network traffic to continue.

Who invented the bus topology?

Robert Metcalfe and his associates invented Ethernet in 1972 (see “Ethernet Prepositions”). The original Ethernet was a coax bus topology with a bit rate of 2.94 Mbits/s. During the next 10 years, it evolved into a 10-Mbit/s coax bus, and a frame format and protocol emerged.
