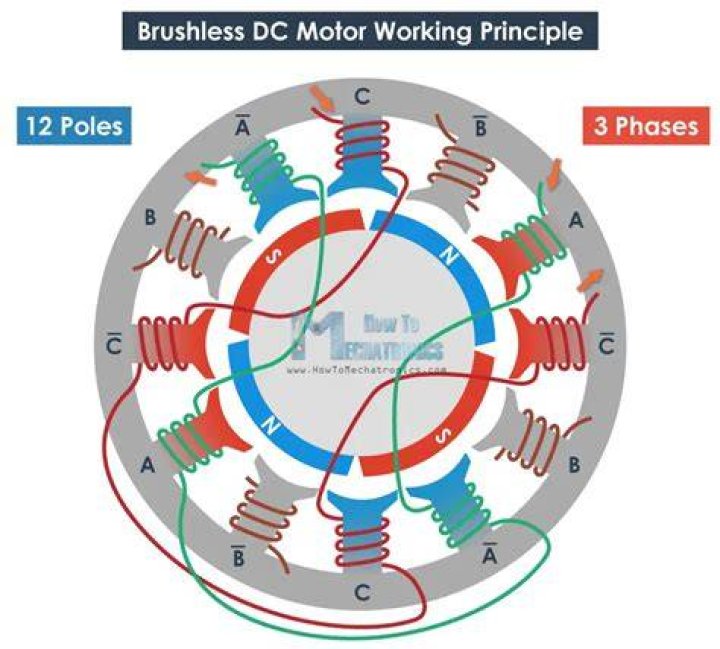

BLDCs use three wires which are driven by the ESC with a phase-shifted AC waveform. Each wire's waveform is shifted by 120 degrees from the other two. This is because BLDC motors are indeed three-phase AC motors, each with usually more than one actual coil per phase.

What are the 3 wires on an electric motor?

For a standard 3-wire motor, the lead wire colors are typically white, red, and black. Black is always connected to neutral (N). Both white and black are connected to the 2 terminals of the dedicated capacitor.

Can I run a brushless motor without ESC?

No, you can't. A brushless DC motor is very similar to a three phase AC induction motor. You need to use a brushless DC motor controller (ESC) designed to generate the rotating field.

Why is my brushless motor cogging?

One common cause of cogging is that the startup current settings are not set appropriately. This is especially true in applications where startup occurs under load. Increasing the power going into the motor at startup can give the motor the 'extra kick' that it needs to avoid cogging.

Can a brushless motor have 2 wires?

So tiny brushless motors do exist with 2 wires because they have an internal ESC . They can get away with this because of their low power demands.

What order do wires go on a brushless motor?

What is a 3 phase brushless DC motor?

A brushless DC (BLDC) motor is a rotating electric machine, where the stator is a classic 3-phase stator like that of an induction motor, and the rotor has surface-mounted permanent magnets; see Figure 2-1.

How many wires does a 3 phase motor have?

The three-phase system has four wires. Three are conductors and one is neutral. You can set up a three-phase system as a single-phase one, but you can't do the reverse.

Can you wire a 3 phase motor wrong?

If a 3-phase motor rotates in the wrong direction, you can swap any two leads to change to the desired direction. One way to test motor direction is to take your best guess on how to connect the leads, then run the motor and note the direction it spins. If you're wrong, you undo two leads and swap the wires.

Why is my 3 phase motor running backwards?

Three-phase motors

If the motor is running the wrong direction, that means it is not in the correct phase sequence. This happens to be an easy fix: all you need to do is swap any two the power leads to flip/reverse the magnetic field, and the most common practice is to switch lines 1 and 3.

What is the color code for 3 phase wiring?

Phase 3 - Phase 3 wiring should be yellow. Neutral - Neutral wires should be grey. Ground - Ground wiring should be green, or green with a yellow stripe.

Does Tesla use brushless motors?

Today, all the hybrids are powered by DC brushless drives, with no exceptions. The only notable uses of induction drives have been the General Motors EV-1; the AC Propulsion vehicles, including the tzero; and the Tesla Roadster. Both DC brushless and induction drives use motors having similar stators.

What is a 3 phase motor?

A three-phase motor is an electric machine that transforms electric power into mechanical energy by means of electromagnetic interactions.

Why is it called 3 wire control?

The three-wire control circuit is the most widely used motor control circuit. ... This control circuit gets its name because of the auxiliary contacts that are connected in parallel with the start button. The auxiliary contacts seal in the circuit to keep the coil energized after the start push button is released.

Can you hook up a brushless motor to a brushed ESC?

With the correct firmware, a brushless ESC can operate a brushed motor, but very few companies offer that. If you found a brushless motor the same size as what's in a servo, it would work great. Otherwise just go with the $10 china brushed ESC's.

What is BLDC controller?

The brushless DC (BLDC) motor is also referred as an electronically commuted motor. ... The most common way to control a BLDC motor is to use Hall sensors to determine the rotor position. The control system senses the rotor position and the proper voltage pattern is applied to the motor.

How can I test my brushless motor without ESC?

You can certainly check brushless motor without ESC.
...
Here's my trick...

1. Disconnect motor from ESC just to be safe but not necessary.
2. Short any 2 motor wires and spin rotor head by hand.
3. Compare mechanical resistance without shorting the wires.
4. Repeat with the other 2 combos of shorting 2 wires.

Is cogging bad for motor?

This slight positional change is something that the ESC must overcome and figure out. Most ESC's have no problem overcoming the effect of cogging torque applied. Once the motor is rotating, cogging does not effect the performance any longer.

Should a brushless motor spin freely?

A brushless motor should spin freely when all the wires are separated as there is not a complete circuit. If the motor resists your rotation regardless of the wire connections, it's likely that your motor has an internal short circuit.

Can you repair a brushless motor?

Brushless motors can also be rebuilt to keep them running for years of high performance fun. Bearings are the typical failure point for brushless motors. Failing bearings usually cause the motor to run hot and may reduce performance and run time.
