“Having a larger array on a fixed-size inverter results in greater annual system production, while fixed system, permitting, interconnection and other costs stay the same, shifting financials in favor of a higher DC-to-AC ratio,” he said.

Why oversizing solar panel arrays is a smart move?

When panels are oversized the inverter will spend less time operating at lower efficiency in weak sunlight and this improved average efficiency helps compensate for electricity lost when the panel array output exceeds the inverter's capacity.

Should I oversize solar array?

Guidelines for Oversizing Inverters

When designing your system, a good rule of thumb is that your solar panels should be 10-20% larger than your inverter. In hot climates, that can be extended up to 30%, due to greater efficiency losses from heat.

Why is DC AC ratio important?

The ratio of how much DC capacity (the quantity and wattage of solar panels) is installed to the inverter's AC power rating is called the DC-to-AC ratio, or DC load ratio, ... “This allows for a greater energy harvest when production is below the inverter's rating, which it typically is for most of the day.”

What happens when a PV array power is undersized?

Undersized inverters will ramp up quicker in the mornings, and ramp down slower in the afternoons. If you graph the power output, you'll see a slightly lower peak production, but higher morning and evening production, resulting in a fatter power production curve.

Why should you oversize your solar PV panels array-Explained with examples in detail

What is inverter oversizing?

Inverter oversizing refers to adding more DC power to an inverter than it is rated for. For example, if you connect 6 kWp of DC power to a 5 kW inverter, you oversize the system by 20%.

What is solar inverter oversizing?

What is Inverter Oversizing? As we mentioned further up, oversizing solar inverters refers to when you install a solar array (that's a group of solar panels) with a higher capacity than the rated size of your inverter. Basically, you install more solar panels that your solar inverter capacity is meant to handle.

What is DC oversizing?

In many cases, oversizing the inverter, i.e. having more DC power than the inverter AC power, may increase power output in lower light conditions, thus allowing the installation of a smaller inverter for a given DC array, or alternately, installation of more DC power for a given inverter.

Why do you need an inverter for solar panels?

Our modern appliances rely on alternating current (AC) electricity. But the electricity from your solar panels comes out as direct current (DC) power. To make this solar energy usable within your home or business, you need an inverter to convert DC electricity to AC power in real time.

What is a good DC to AC ratio?

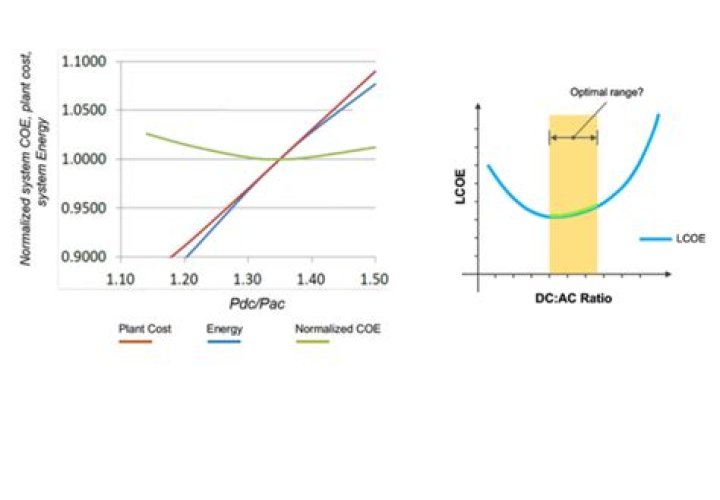

Many people think DC/AC ratios of 1.1 are ideal, with 1.2 as slightly aggressive. Instead, design values of 1.2 often result in minimal losses, while a 1.25 or 1.3 value can improve project economics, especially when a project size is constrained by the AC capacity.

Is inverter clipping bad?

As an analogy, you don't need to rent a tractor trailer truck if a simple pickup will do. Putting more money into a bigger inverter is simply not going to pay you back and thus, clipping just isn't a bad thing. (For you math geeks: The curves are parabolas.

What happens to excess solar power generated off grid?

If you produce more solar power than you use (as will be the case for many customers during daytime hours, especially in summer) then your system will feed power out to the grid. ... When this happens, your unused solar power becomes bill credits with your utility company which you can use when it's not sunny.

Is it better to get a bigger inverter?

So size does matter…. but bigger is not always better. Matching your inverter size to your load size to maximize your run time of a battery is important.

Can I oversize my solar system?

For most people, the answer is no; but, there are certainly situations in which it's a good idea to install a larger system than you currently need. ...

Why is my inverter rated lower than the solar panels?

The orientation of the solar array is also a factor in our choice of inverter size. In an array on both sides of a house where the two halves of the system are facing in opposite directions, the peak output will be much lower than if all the panels were facing in the same direction.

What is purpose of inverter?

An inverter is one of the most important pieces of equipment in a solar energy system. It's a device that converts direct current (DC) electricity, which is what a solar panel generates, to alternating current (AC) electricity, which the electrical grid uses.

Are microinverters worth it?

To sum it all up, microinverters are definitely a value-add, but are only recommended if you need to comply with rapid shutdown requirements, have panels facing multiple orientations or you have shading issues. Otherwise, the less-expensive standard inverter is usually more cost-effective.

What is difference between solar inverter and normal inverter?

The standard inverter is done primarily to convert current DC to AC. ... Solar Inverter also operates related to the regular inverter, but it has an extra feature to charge the battery using solar panels, and it runs in hybrid mode, it means it charges the battery using electricity as well as the solar panel.

What is an array in solar PV?

The Solar Photovoltaic Array

A photovoltaic array is therefore multiple solar panels electrically wired together to form a much larger PV installation (PV system) called an array, and in general the larger the total surface area of the array, the more solar electricity it will produce.

Which solar inverter is best?

• Fronius. The unique snap in design. ...
• SolarEdge. New SolarEdge HD wave solar inverters without display - System monitoring via cloud app. ...
• SMA. SMA Sunny Boy AV solar inverter. ...
• Sungrow. ...
• Huawei. ...
• FIMER. ...
• Delta. ...
• GoodWe.

Why do you Oversize an inverter?

By oversizing a PV array, the DC energy output of that array can better match the rated AC power of an inverter. This means that an inverter with a lower AC rating (hence lower cost) can be used. Consequently, this can decrease the relative cost of inverters compared to the total system cost.

Can a 5kW inverter produce more than 5kW?

A. You have a 5kW inverter. It cannot output more than 5kW. ... Oversizing panels to inverter capacity is good design.

Can I upgrade my solar inverter?

Yes, you can upgrade the inverter of an existing solar system to convert more power. ... The inverter determines how much electricity your system can handle. Whenever you are stepping up or increasing your power output, consider upgrading your inverter, too.

How is VOC max calculated?

Add the voltage increase to the Module VOC. Then divide the inverter maximum input voltage by that number. This will give you the maximum number of modules that can be wired in a series string per that inverter and specific location. The maximum number of modules in this series string is 13.
