Mostly gabions have been used for temporary flood walls, silt filtration from runoff, and stabilizing shorelines. Unlike more rigid structures, gabions can conform to subsidence and dispel energy from flowing water while being able to drain.

Where have gabions been used?

This practise of erosion control became more widespread during the 19^th century, with gabions commonly used to stabilise shorelines, banks and slopes. In medieval times, gabions were effectively used as military fortifications, mainly for the protection of artillery.

How do gabions stop erosion?

Gabion baskets placed on the outside of the river bend to prevent river bank erosion during floods. ... Gabions can flex to ground movement, dissipate energy from flowing water, and drain freely. Their strength and effectiveness may increase with time, as silt and vegetaion fill the voids, and reinforce the structure.

What is a gabion and where would you use one?

What is the Purpose of a Gabion? As the name suggests, this cage is meant to contain or trap, and they're used in the makings and maintenance of dams, foundations, pathways, trenches, sculptures, and more.

How does a gabion work?

The purpose of a gabion revetment is to provide short term (5-10 years) protection from backshore erosion by absorbing wave energy along the dune face. Their application is restricted to the upper part of sandy beaches, since they are not sufficiently durable to withstand regular direct wave action.

What is Gabion ? || Types || Applications || Advantages || Uses || By Engineering Podium

Who invented gabion?

The most common civil engineering use of gabions was refined and patented by Gaetano Maccaferri in the late 19th century in Sacerno, Emilia Romagna and used to stabilize shorelines, stream banks or slopes against erosion.

How do you keep rip rap from washing away?

Riprap should always be underlain by a filter material consisting of granular material or a nonwoven geotextile fabric to prevent underlying soil from piping through the riprap stone. The bedding or geotextile fabric must be sized properly in order to prevent erosion or undermining of the underlying soils.

How long will a gabion wall last?

A gabion wall's lifespan depends on the type of wire used and the amount of salt spray it is exposed to. “Something that is very coastal tends to rust out like any metal a little quicker,” Jurgensen says. “The further inland you go the longer these tend to last but 50 to 100 years is the typical lifespan.”

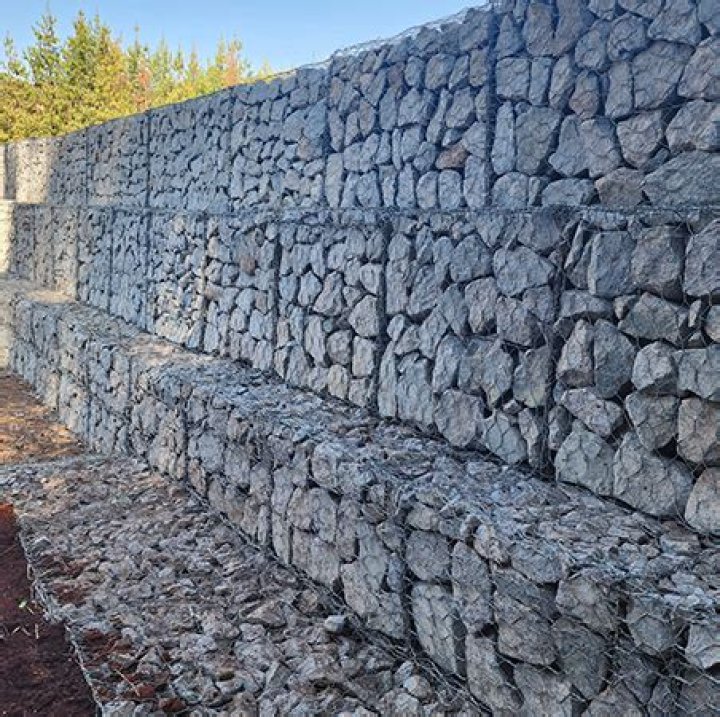

Can gabions be used as retaining walls?

What is a garden gabion wall? A popular and economical type of retaining wall. Made of large metal mesh cages filled with stone, they can be stacked on top of each other to prevent earth from falling into unwanted areas.

Are gabions effective?

Sloping gabions can provide good erosion protection for periods up to 10 years (longer if normally buried). They are often more acceptable and less costly than rock armour. When carefully built and placed they can blend into the dune landscape, and are only exposed during eroding storms.

How much do gabion walls cost?

Gabions are an affordable retaining wall, averaging $5 to $40 per square foot. Gabion walls are blocks made from wire cages filled with rocks or crushed concrete.

Are gabion walls cheap?

According to Gabion Baskets, the industry standard is 3-foot increments. To estimate cost, figure on $35 per cubic yard (a 3-foot-square cage) for standard-gauge galvanized mesh. ... Installation: Gabions are extremely affordable for a retaining wall or stone fencing, since little excavation or land preparation is needed.

How much rock does it take to fill a gabion?

Typical 3" x 3" mesh requires a minimum of 4" rocks and limit the largest rock at 8". Use angular rocks to fit into corners and smaller rocks or used bricks and concrete materials may be inserted in the center of the structure as they will not to be seen when finished.

Can you bend gabions?

You can easily create curved gabions walls by using shorter length gabions and slightly modifying the gabions onsite allowing you to kick in the corners to obtain your desired radius. Below are some sample layouts of how to achieve a curved gabion wall.

How do I stop my gabions from bulging?

When filling the baskets it is necessary to insert a brace in the middle of the basket. This is important to stop the face bulging when filling. The higher the wall the more important this is as the more force exerted on the face.

What is gabion stone?

Gabion stone is a type of crushed stone, such as limestone, sourced from local stone quarries and used as filler for gabion boxes, baskets, and cages. ... Gabion baskets are typically filled with rocks, concrete, and sometimes other aggregates such as sand and soil.

What goes under Rip rap?

Fabric goes under the riprap to prevent soil erosion. Erosion control is why most people consider riprap shorelines in the first place. But the riprap itself is not what prevents erosion. Riprap displaces wave energy, and helps to combat ice jacking.

What is riprap shoreline?

Riprap describes a range of rocky material placed along shorelines, bridge foundations, steep slopes, and other shoreline structures to protect from scour and erosion. Rocks used range from 4 inches to over 2 feet. ... Riprap is a very durable, natural-looking treatment.

Can I put rocks on my shoreline?

Riprap, also known as rip rap, rip-rap, rock armor, armoring, or revetment, is rock or other material used to protect your shorelines against natural water and weathering damage. Common rock types used in a rip-rap solution include granite and limestone. Sandstone should NEVER be used for a project of this nature.

What are the disadvantages of gabions?

Disadvantages/Problems

Gabions are more expensive than either vegetated slopes or riprap. The wire baskets used for gabions may be subject to heavy wear and tear due to wire abrasion by bedload movement in streams with high velocity flow. Difficult to install, requiring large equipment.

What is the meaning of gabion in English?

: a basket or cage filled with earth or rocks and used especially in building a support or abutment.

What are wire baskets filled with rocks called?

What is a gabion? A modular containment system (called a gabion basket or cage) made from wire mesh and filled with rock, stone or other non-degradable materials.

Do rock walls attract snakes?

Avoid using damp mulch or large stones; try smaller pebble or river-rock instead. Also, retaining walls made of loose stone, such as limestone, or old railroad ties offer ideal hiding spots for rodents and will attract snakes. Replace with solid retaining wall bricks and seal cracks if they develop.
