Ball peen hammer It has two heads, one flat and the other, called the peen, rounded. Ball Peen Hammer is used for light tapping and hard striking purposes while punching, bending, straightening, chipping, forging, riveting and planishing.

What is a riveting hammer?

: a hammer usually wth a flat face and cross peen used for driving rivets and beating metal.

When would a riveting hammer need to be used?

A hammer having a long head, a flat face, and a narrow peen; used for swaging down rivets or beating sheet metal.

What is the name of riveting tool?

A rivet gun, also known as a rivet hammer or a pneumatic hammer, is a type of tool used to drive rivets. The rivet gun is used on rivet's factory head (the head present before riveting takes place), and a bucking bar is used to support the tail of the rivet.

Can you set rivets with a hammer?

Using a hammer to rivet is called rivet peening. ... The head of the rivet is rounded in shape with a flat shoulder that rests against the top piece of metal. All the holes must be predrilled to the exact diameter of the rivets' smooth bodies. Rivets can be made of brass, copper or steel.

Basic Riveting Fundamentals

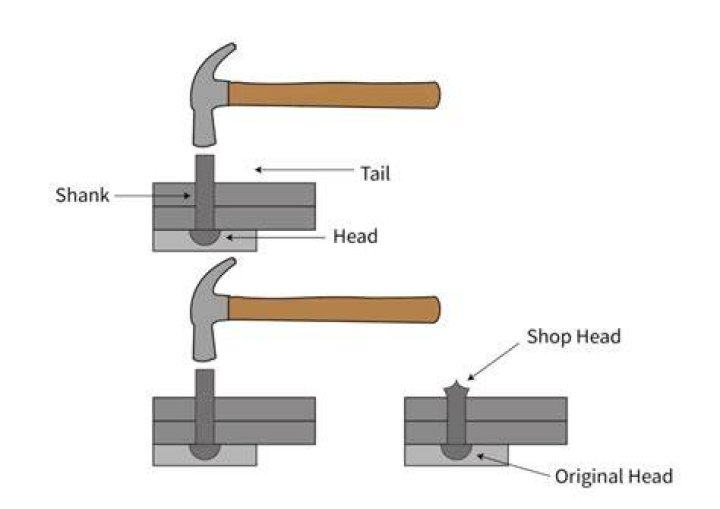

How do hammer rivets work?

The tail of the rivet (currently the headless end) is deformed with a hammer so that the original head and the new head hold the material on either side. The deformation of the tail also shortens the rivet slightly, which tightens it up on the materials.

What are the three types of rivets?

There are many types of rivets: blind rivets, solid rivets, tubular rivets, drive rivets, split rivets, shoulder rivets, tinners rivets, mate rivets, and belt rivets. Each type of rivet has unique benefits, making each ideal for a different type of fastening.

What is the purpose of a riveter?

Riveting is the permanent connection of two or more workpieces the rivet being put as a joint in a predrilled bore hole and formed on one or both ends. The riveted parts can be connected in a movable, fixed, close or fixed and close manner.

What is the purpose of drift in riveting operation?

Drifts are constructed from wood, light alloys, copper, or steel which are usually rods cut to size as for the job. Drifts can be used to remove dents from inaccessible places, for striking pins and keys out. Some drift pins are constructed with a taper, with the hammer acting on the large end of the taper.

What is a nail hammer?

A claw hammer is a tool primarily used for driving nails into, or pulling nails from, some other object. Generally, a claw hammer is associated with woodworking but is not limited to use with wood products.

What is driven rivet?

A drive rivet is a type of blind rivet with a short mandrel that protrudes from the head. Once the drive rivet is inserted into a hole, the mandrel is driven in with a hammer or other implement to flare out the end of the rivet that is inside the hole.

What is the weight of hammer used for marking purpose?

- Hand hammer (200 g - 400 g), widely used for various fitting purposes.

What is pneumatic rivet gun?

Use an air rivet gun to join & secure materials together. These guns are known as a pneumatic riveter, pneumatic pop rivet gun or air riveter, used to drive rivet pins. Our rivet gun range includes leading brands such as Bahco, RS PRO & PREVOST.

Which rivet is used in heavy structural work?

Explanation: Pan head rivet is used for girders and heavy constructional work.

Which type of rivet is mostly used?

From a structural design aspect the most important rivets are the solid and blind rivets. Solid Rivets: Most solid rivets are made of aluminum so that the shop head can be cold formed by bucking it with a pneumatic hammer.

What is the purpose of riveted joint?

Rivet joints are permanent joints used mainly for fastening sheets and shaped rolled metal. They are used in lap, abutment, and double-cover plate joints. They can still be used for constructing a metal bridge, hoisting cranes, boilers, and pressure tanks.

Which rivet is used for light assembly work?

Flat head rivets of small sizes are called 'Tinmen's rivet'. It is used in light-sheet metalwork such as the manufacture of buckets, steel boxes, and air conditioning ducts.

How rivet is used?

A rivet is a mechanical fastener with a plane unthreaded shaft that's inserted through holes to join two or more parts together. A permanently formed head at each end prevents the rivet from removal from the hole. The shaft prevents any radial movements of the components.

What is countersunk rivet?

Countersunk rivets from ITA Fasteners come with a flat head and a tubular or shank rivet running through the length of its body. ... These rivets are mainly used in applications where the head of the assembled rivet has to be flush with the top of the workpiece.

What is a peening tool?

A tubular rivet peening tool is used to set all sizes of tubular rivets. ... When struck, the tubular rivet peening tool changes the shape of the rivet post, forming metal spokes that dig into the leather for an extra-strong set.

What is riveting metal?

Riveting is a forging process that may be used to join parts together by way of a metal part called a rivet. The rivet acts to join the parts through adjacent surfaces. A straight metal piece is connected through the parts. Then both ends are formed over the connection, joining the parts securely.
