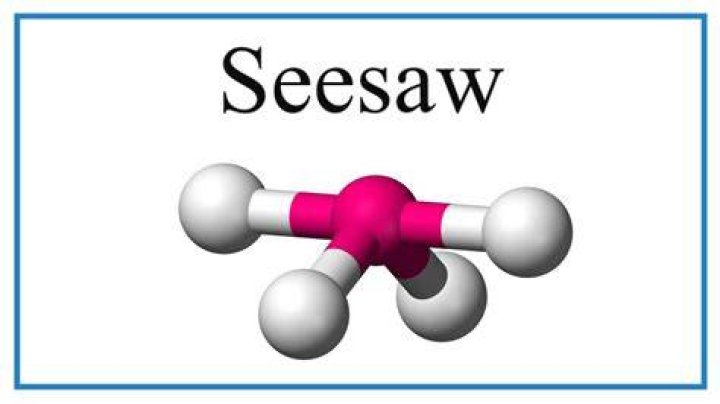

An example of a seesaw shaped molecule is sulfur tetrafluoride, or SF4. Sulfur is the central atom, two fluorine atoms are on the equatorial plane, and two are on the axial plane.

Why the shape of SF4 is seesaw?

It has a see-saw shape as it contains four bond pairs and one lone pair. The equatorial F atoms are 120 from each other., so the axial/equatorial bond angle is 90 degrees.

Is seesaw shape Polar?

In VSEPR theory, the lone pair forces the molecular geometry of SF4 into a see-saw shape. Two of the S-F bonds are pointing away from each other, and their bond dipoles cancel. But the other two S-F dipoles are pointing "down". Their bond dipoles do not cancel, so the molecule is polar.

What shape is a tetrahedral?

In geometry, a tetrahedron (plural: tetrahedra or tetrahedrons), also known as a triangular pyramid, is a polyhedron composed of four triangular faces, six straight edges, and four vertex corners.

Is SO2 a shape?

The molecular geometry of SO2 has a bent shape which means the top has less electronegativity, and the bottom placed atoms of Oxygen have more of it. So, the conclusion is, SO2 is a Polar molecule.

Stoichiometry - Chemistry for Massive Creatures: Crash Course Chemistry #6

What is the shape of SF4 and xef2?

square planar and trigonal bipyramidal.

What is the molecular shape of i3?

The shape of an I₃^- the molecule is Linear. There exist 3 Iodine atoms out of which 1 has an extra negative charge. Due to this, one extra electron, there are 3 lone pairs of electrons and 2 bond pairs, making its steric number as 5.

Why is SF4 seesaw while SiF4 is tetrahedral?

The unsymmetrical 'see-saw' structure of SF4 leads to an overall dipole, as shown. SiF4 is tetrahedral so that the individual dipoles on the Si-F bonds cancel and the molecule has no dipole moment.

What shape is ICl3?

The geometry of ICl3 is trigonal bipyramidal with a T-shaped molecular shape. ICl3 has three bond pairs and two lone pairs of electrons. Both lone pairs of electrons occupy the equatorial positions to achieve stability and minimize bond pair – lone pair repulsions.

Is nh2 linear in shape?

The overall shape would be bent (angular) with 104.5 degree bond angles due to strong lone pair-bonding pair repulsion that pushes the 2 bonding pairs closer together than they would like.

What is the molecular geometry of SF6 quizlet?

Electron Geometry of SF6 is Octahedral. Molecular Geometry of SF6 is Octahedral.

What is the molecular shape of brf5?

BrF₅ Molecular Geometry And Bond Angles

BrF₅ molecular geometry is said to be square pyramidal with a bond angle of 90^o each.

What is hybridization and shape of SF4?

SF4 molecular geometry is see-saw with one pair of valence electrons. The nature of the molecule is polar. These atoms form a trigonal bipyramidal shape. The equatorial fluorine atoms have 102° bond angles instead of the actual 120^o angle.

What are the shape of SF4 and ClF3?

The shape of the SF4 molecule should be trigonal bipyramidal but its shape is distorted trigonal bipyramidal due to loan pair of electrons. ClF3 molecule chlorine is central atom which undergoes sp3d hybridization.

What is the shape of SO2 4?

3. The 4 electron pairs are at the corners of a tetrahedron. The electron pair geometry is TETRAHEDRAL. . . . the molecular geometry is bent.

Is SO2 trigonal pyramidal?

For example, sulfur dioxide, SO2, electron-domain geometry is trigonal planar. This is because it has 3 electron domains - the 6 valence electrons for sulfur form 2 single bonds with 2 oxygen atoms and sulfur has one non-bonding lone pair. ... The polarity influences the bond angle for the bent geometry.

Which molecule is a tetrahedral?

Tetrahedral. Molecules of methane, CH₄, ammonia, NH₃, and water, H₂O, all have four electron groups around their central atom, so they all have a tetrahedral shape and bond angles of about 109.5°.

What's an example of a tetrahedral molecule?

Some examples of tetrahedral molecules include the ammonium ion, methane ion, and phosphate ion. Central atoms that are bonded to four atoms that are not tetrahedral are known as square planar molecules, which have a central atom bonded to four surrounding atoms, giving it a steric number of 6.

What is the molecular shape of PCl3 quizlet?

There are four electron domains around the central P atom in PCl3, giving it a tetrahedral electron geometry. The molecular geometry, though, is trigonal pyramidal, because one of the four electron domains is a lone pair. As a result, the bond angles will be slightly less than the tetrahedral angle of 109.5°.
