The bevel symbol's perpendicular line is always drawn on the left side, regardless of the orientation of the weld itself. The arrow points toward the piece that is to be chamfered.

What is the symbol for welding?

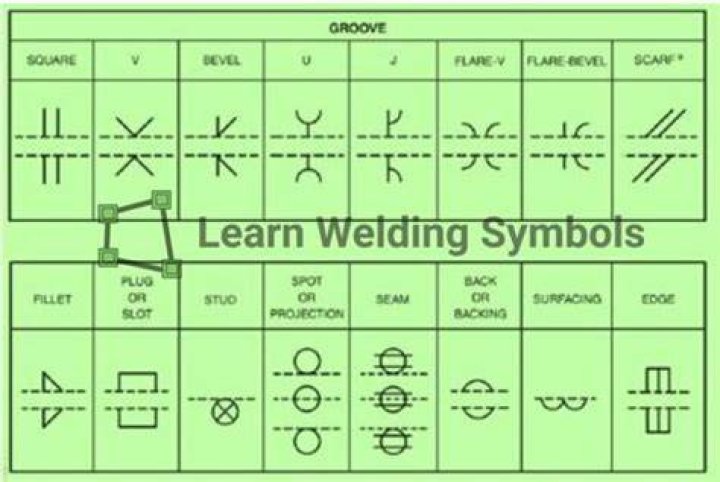

Most blueprints for a welding project heavily peppered with them. The skeleton of a welding symbol has an arrow, a leader line (attached to the arrow), a horizontal reference line, a tail, and a weld symbol (not to be confused with welding symbol, which refers to the whole thing. See symbol 1).

What does S mean in welding symbol?

z = leg length. s = penetration throat thickness. For butt joints and welds, an S with a number to the left of a symbol refers to the depth of penetration as shown in Fig. 9.

What are the different types of welding symbols?

• Arrowhead and reference line. This allows you to quickly identify that you are looking at a weld symbol. ...
• Type of weld. ...
• Placement or orientation of the weld. ...
• Weld contour. ...
• Size of weld. ...
• Supplementary symbols.

What are the 3 main components of a weld symbol?

The basic fillet weld symbol consists of a reference line, an arrow line, the tail, Weld Procedure Specification (WPS) information, and the fillet weld symbol including leg size. Some of the more common optional elements of a fillet weld symbol are shown in Figure 3.

Intro to Welding Symbols Fillet Welds

Why are welding symbols used?

Weld symbols are how the designer of a custom metal form communicates how objects should be welded to welders working the manufacturing line. Without clearly-marked weld symbols, the welder won't know where to place a weld, what type of weld should be made, and the weld size.

What is a fillet weld symbol?

The fillet weld symbol is a right triangle placed on the reference line with the perpendicular leg always on the left. The dimension specifying the leg size of a fillet weld is placed to the left of the fillet weld symbol, and on the same side of the reference line.

What are the four types of welding?

There are four main types of welding. MIG – Gas Metal Arc Welding (GMAW), TIG – Gas Tungsten Arc Welding (GTAW), Stick – Shielded Metal Arc Welding (SMAW) and Flux-cored – Flux-cored Arc Welding (FCAW). We dive deeper into each type of welding here.

What is a groove weld symbol?

Like the basic fillet weld symbol, the groove weld symbol consists of a reference line, an arrow line, the tail, Weld Procedure Specification (WPS) information, and the appropriate groove weld symbol. Groove weld symbols can be much more complex than fillet welds symbols.

What does symbol F symbol represent?

F (symbol): A much used symbol, F stands for fractional concentration; free energy; Fahrenheit; visual field; fluorine; force; filial generation, followed by subscript numerals indicating specified matings such as F1); the amino acid phenylalanine; the coefficient of inbreeding , etc.

What does G mean in welding symbol?

When a finish symbol is used, it shows the method of finish, not the degree of finish; for example, a C is used to indicate finish by chipping, an M means machining, and a G indicates grinding. ... When this symbol is placed on a welding symbol, welds are to continue all around the joint.

What is f the symbol for?

Fluorine is a chemical element with symbol F and atomic number 9.

What's the difference between a weld symbol and a welding symbol?

The weld symbol indicates the type of weld and, when used, is a part of the welding symbol. Welding Symbol: The welding symbol consists of several elements (see Figure). Only the reference line and arrow are required elements. Additional elements may be included to convey specific welding information.

What are the 5 types of welding?

MIG Welding - Gas Metal Arc Welding (GMAW) TIG Welding - Gas Tungsten Arc Welding (GTAW) Stick Welding - Shielded Metal Arc Welding (SMAW) Flux Welding - Cored Arc Welding (FCAW)

What is coded welding?

A coded welder is somebody who has taken an exam in a welding process using a certain welding configuration (Welder Approval Test). ... This means that the welder will provide a welding sample that reflects that specific job as thoroughly as possible.

What are the 4 basic welding techniques?

The four main types of welding are: Gas Metal Arc Welding (GMAW/MIG), Gas Tungsten Arc Welding (GTAW/TIG), Shielded Metal Arc Welding (SMAW), and Flux Cored Arc Welding (FCAW).

How important is welding symbols in welding operations?

Weld symbols are used to indicate the welding processes used in metal joining operations, whether the weld is localized or “all around”, whether it is a shop or field weld, and the contour of welds.

Which of the following symbol is used for seam welding?

The spot weld symbol is simply a circle that may be placed above, below, or centered on the reference line.

What is the book of welding symbols called?

Welding Symbols Quick Card: Builder's Book Inc., Builder's Book Inc., Arch. Rotimi Fafowora: 9781889892740: Amazon.com: Books.

What does the weld All Around symbol mean?

The weld-all-around symbol indicates that the weld continues completely around the perimeter of the joint, even for circular joint members. As a reference you can always take a look at figure 34A of AWS A2. 4:2012, Standard Symbols for Welding, Brazing, and Nondestructive Examinations.

What is the primary element of any welding symbol?

A standard welding symbol (fig. 3-43) consists of a reference line, an arrow, and a tail. The reference line becomes the foundation of the welding symbol. It is used to apply weld symbols, dimensions, and other data to the weld.
