Ball bearings provide very low friction during rolling but have limited load-carrying capacity. This is because of the small area of contact between the balls and the races. They can support axial loads in two directions besides radial loads. Ball bearings are used for controlling oscillatory and rotational motion.

Which type of bearing is preferred for oscillating conditions?

Needle roller bearings are ideally suited for application involving oscillatory motion such as piston pin bearings, rocker arms and universal joint, They are also suitable for continuous rotation where the load is variable or intermittent.

What bearings are best for axial load?

Bearings that can carry combined loads are most suitable for capturing axial forces. Bearings that are best able to afford axial movement are NU and N cylindrical roller bearings (fig. 4.10).

Which bearing is suitable for heavy radial load?

Explanation: For heavy Radial load Self-aligning roller bearing is used.

What is the most efficient type of bearing?

Cage design

Steel cages are the most economical types for deep-groove ball bearings, and manufacturers readily stamp them from sheet steel, form the required profile, rivet the two halves together, and insert and secure the balls. The E2 deep-groove ball bearing, on the other hand, uses a polymer cage.

Bearing type by load direction. Radial and thrust bearing explained

How do you choose a bearing type?

1. Installation space. Bearing can be installed in target equipment. ...
2. Load. Load magnitude, type and direction which applied. ...
3. Rotational speed. Response to rotational speed of equipment in which bearings will be installed. ...
4. Running accuracy. ...
5. Rigidity. ...
6. Misalignment. ...
7. Mounting and dismounting.

What is the type of bearing?

There are many different types of bearings, each used for specific purposes and designed to carry specific types of loads, radial or thrust. Here, we'll look at the 6 most popular types: plain bearings, rolling element bearings, jewel bearings, fluid bearings, magnetic bearings, and flexure bearings.

Which bearing is antifriction bearing?

The types of antifriction bearing are group by the shape of the rolling element and they are ball bearings, cylindrical roller bearings, tapered roller bearings, and needle roller bearings.

What type of bearing is best used to sustain radial and thrust loads?

Ball bearings are most common type of bearing and can handle both radial and thrust loads. Ball bearings are also known as deep-groove single-row or Conrad bearings.

What are roller bearings used for?

Roller bearings are used in all main shaft and auxiliary drive shaft applications to support pure radial load, and allow for axial shaft elongation due to temperature changes with no additional load effect on the bearing.

Which is the best bearing?

• FAG – Germany. Listed amongst the Top Ten Bearing Brands, FAG, known as the moving bearing craftsmanship,was established under the umbrella of the Schaeffler Group of Germany, manufactures moving bearing/plain bearing products and arrangements. ...
• NTN – Japan. ...
• HIWIN – Taiwan.

What is radial bearing load?

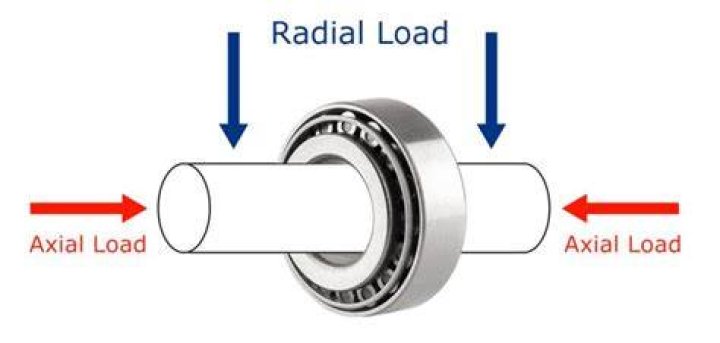

Bearing Radial Load

Bearing radial loads are forces that are perpendicular to the axis of the shaft, parallel to the bearing's radius. Some examples of a radial load on a bearing are the weight of a horizontal shaft assembly, gears, pullies or cutting tools.

Which is better ball bearing or roller bearing?

As a general rule, ball bearings are used at higher speeds and lighter loads than are roller bearings. Roller bearings perform better under shock and impact loading.

What are the anti friction bearings?

An antifriction bearing is a bearing that contains moving elements to provide a low friction support surface for rotating or sliding surfaces. Antifriction bearings are commonly made with hardened rolling elements (balls and rollers) and races.

Which of the following bearing carry thrust load in one direction?

Ball thrust bearings are designed to accommodate thrust loads in one direction.

What is deep groove ball bearing?

Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. ... The SKF bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings.

Which type of bearing can take both thrust load and radial load?

Deep groove ball bearings are the most widely used among all bearings. They can support both a radial load and a certain amount of axial load coming from both directions at the same time.

Which type of automotive bearing can withstand radial and thrust loads?

2) Tapered Roller Bearings

Tapered roller bearings can handle large radial and thrust loads. These type of bearings can be found in car hubs due to their load versatility.

What is AZ bearing?

2 Z / ZZ - Bearing with a metal seal on both sides. Z - Bearing with a metal seal on one side, one side open. E - Reinforced Design.

Why ball and roller bearing are called antifriction bearing?

The purpose of anti-friction bearing lubrication is to increase bearing life, keep the balls or rollers separated, dissipate the heat generated in and conducted into the bearing, and to prevent corrosion.

What is ball bearing and roller bearing?

A roller bearing is a cylindrical unit that is used to provide low-friction movement for a bushing or bearing block. A ball bearing is a spherical unit that accomplishes the same objective as a roller bearing. The real difference has to do with the contact surface between the bearing and the rail.

Why are Ball & Roller Bearings called antifriction bearing?

| Antifriction bearings minimize friction by removing any possible sliding between bearing surfaces and replacing all contacts with rolling interfaces. They substitute balls or rollers for a hydrodynamic or hydrostatic fluid film to carry loads with reduced friction.

What is bearing and what are the different types of bearing?

Bearings are mechanical assemblies that consist of rolling elements and usually inner and outer races which are used for rotating or linear shaft applications, and there are several different types of bearings, including ball and roller bearings, linear bearings, as well as mounted versions that may use either rolling ...

Where are bearings used?

Machines that use bearings include automobiles, airplanes, electric generators and so on. They are even used in household appliances that we all use every day, such as refrigerators, vacuum cleaners and air-conditioners. Bearings support the rotating shafts of the wheels, gears, turbines, rotors, etc.
