Applications of Multiplexers A Multiplexer is used in numerous applications like, where multiple data can be transmitted using a single line. Communication System – A Multiplexer is used in communication systems, which has a transmission system and also a communication network.

Where do we use multiplexer?

• Communication System. ...
• Computer Memory. ...
• Telephone Network. ...
• Transmission from the Computer System of a Satellite. ...
• Communication System. ...
• Arithmetic Logic Unit. ...
• Serial to Parallel Converter. ...
• Photo Credits.

Why is multiplexing used?

The advantage of multiplexing is that we can transmit a large number of signals to a single medium. ... In order to transmit various signals over the same channel, it is essential to keep the signals apart to avoid the interference between them, and then it can be easily separated at the receiving end.

Which of the following are most commonly used multiplexers?

• Basic Multiplexing Switch. ...
• 4-to-1 Channel Multiplexer. ...
• Multiplexer Input Line Selection. ...
• 4 Channel Multiplexer using Logic Gates. ...
• Multiplexer Symbol. ...
• 4-to-2 Channel Multiplexer. ...
• Digitally Adjustable Amplifier Gain.

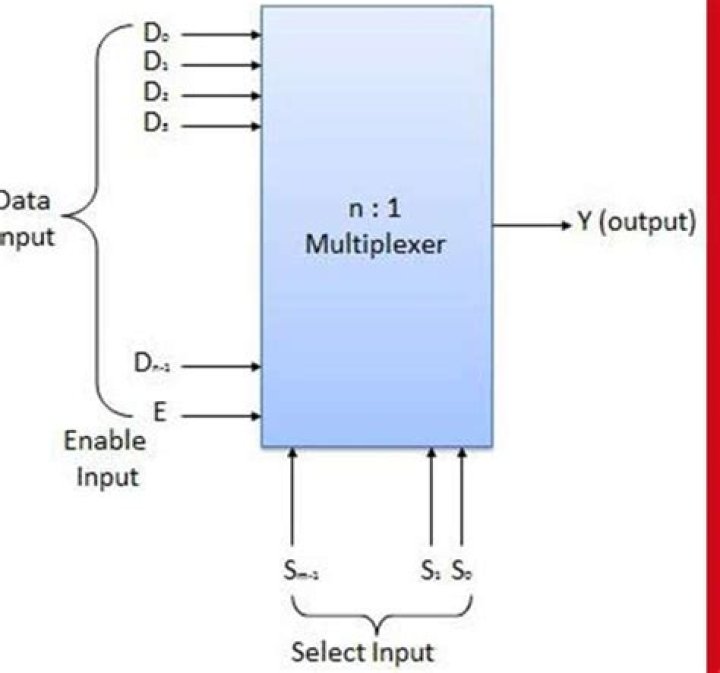

What is multiplexer with example?

Multiplexer means many into one. A multiplexer is a circuit used to select and route any one of the several input signals to a single output. A simple example of an non-electronic circuit of a multiplexer is a single pole multi-position switch. A mechanical switch cannot perform this task efficiently. ...

Introduction to Multiplexers | MUX Basic

Is multiplexer a decoder or encoder?

The digital circuits that perform encoding of digital information are called encoders while digital circuits that decode the coded digital information are called decoders. An encoder with enable pins is called multiplexer while a decoder with enable pins is called demultiplexer.

How does a multiplexor work?

A multiplexer is a system of multiple inputs and just one output to receive signals coming from multiple acquisition networks. The device transfers all input signals to a microprocessor, which receives and processes the data, transmits it to the output devices, and controls the system as a whole.

What is analog multiplexer?

An analog multiplexer (also known as a MUX or data selector) is a device used to select one of many input signals and connect that selected input to a single output / transmission line. ... In other words, a single line can be shared by multiple signals at different times.

What are the applications of decoder?

• Decoders are used to input data to a specified output line as is done in addressing core memory where input data is to be stored in a specified memory location.
• It is used in code conversions.
• In high-performance memory systems, this decoder can be used to minimize the effects of system decoding.

What is the role of multiplexer and decoder?

The main function of multiplexer basically is to connect information from one point to another point through wires while on the other hand, decoders converts the outputs for several operations such as data collection and calculations.

Which one is known as data selector?

Explanation: A digital multiplexer is a combinational circuit that selects one digital information from several sources and transmits the selected information on a single output line depending on the status of the select lines. That is why it is also known as a data selector.

What are the types of multiplexer?

There are mainly two types of multiplexers, namely analog and digital. They are further divided into Frequency Division Multiplexing (FDM), Wavelength Division Multiplexing (WDM), and Time Division Multiplexing (TDM).

What is multiplexer tree?

What is multiplexer tree? ... A number of m-to-1 multiplexers can be arranged in a tree topology to obtain a bigger n-to-1 multiplexer is called Multiplexer Tree where n>m. Bigger Multiplexer can be obtained by combining smaller Multiplexers.

Which multiplexing transmits digital?

Which multiplexing technique transmits digital signals? Explanation: Time Division Multiplexing is used to transmit digital signals. FDM and WDM techniques are used to transfer analog signals.

Which IC is used for decoder?

3 to 8 line decoder IC 74HC238 is used as a decoder/ demultiplexer. 3 to 8 line decoder demultiplexer is a combinational circuit that can be used as both a decoder and a demultiplexer. IC 74HC238 decodes three binary address inputs (A0, A1, A2) into eight outputs (Y0 to Y7).

Can multiplexer be used as decoder?

A multiplexer and a decoder can be used together to allow sharing of a data transmission line by a number of signals. In the following diagram, the Control input consists of n wires, and there are 2ⁿ data inputs and outputs. The Control input determines which of the data inputs is connected to the transmission line.

How do I combine multiple multiplexers?

To achieve the first two MUX is connected in parallel and then the output of those two are feeded as input to the 3^rd MUX as shown below. The control/select line of the first two MUX is connected together to form a single line (S₀) and then the control line of the 3^rd MUX is used as the second control/select signal.

What is 4x1 multiplexer?

4x1 Multiplexer has four data inputs I₃, I₂, I₁ & I₀, two selection lines s₁ & s₀ and one output Y. ... One of these 4 inputs will be connected to the output based on the combination of inputs present at these two selection lines. Truth table of 4x1 Multiplexer is shown below.

What is enable in multiplexer?

multiplexers usually have an ENABLE input that can be used to control the multiplexing function. When this input is enabled, that is, when it is in logic '1' or logic '0' state, depending upon whether the ENABLE input is active HIGH or active LOW respectively, the output is enabled. The multiplexer functions normally.

What is a 4 to 16 decoder?

General description. The 74HC154; 74HCT154 is a 4-to-16 line decoder/demultiplexer. It decodes four binary weighted address inputs (A0 to A3) to sixteen mutually exclusive outputs (Y0 to Y15). The device features two input enable (E0 and E1) inputs. A HIGH on either of the input enables forces the outputs HIGH.

What are the 3 types of multiplexing?

• Frequency Division Multiplexing (FDM)
• Wavelength Division Multiplexing (WDM)
• Time Division Multiplexing (TDM)
