A converging lens is thicker in the middle than it is at the edges. Parallel light rays that enter the lens converge. They come together at a point on the principal axis called the principal focus F. The centre of the lens is called the optical centre C.

What is a principal focus of a converging lens?

The principal focus is defined as the point where a beam parallel to the principal axis appears to diverge converges from a point on the principal axis after passing through the lens.

Where is the focus of a convex lens?

A principle focus of a convex lens is defined as the point on the principal axis on which the light rays coming parallel to the principal axis converge after getting refracted from the convex lens.

Where is the focus of a lens?

The focus is the point, or plane, at which light rays from infinity converge after passing through a lens and traveling a distance of one focal length. In a refractor the first lens through which light from a celestial object passes is called the objective lens.…

What is the principal axis of a converging lens?

Principal axis is the line passing symmetrically through the optical centre of the lens. Focal point, F is the point to which all rays close to and incident parallel to the principal axis converge after refraction by the lens.

Thin Lens Equation Converging and Dverging Lens Ray Diagram & Sign Conventions

Which is converging lens?

A double convex lens, or converging lens, focuses the diverging, or blurred, light rays from a distant object by refracting (bending) the rays twice. ... This double bending causes the rays to converge at a focal point behind the lens so that a sharper image can be seen or photographed.

Which of the following lenses is a converging lens?

A double convex lens is a converging lens. A double concave lens is also symmetrical across both its horizontal and vertical axis. The two faces of a double concave lens can be thought of as originally being part of a sphere.

What is principal focus in optics?

A principal focus or focal point is a special focus: For a lens, or a spherical or parabolic mirror, it is a point onto which collimated light parallel to the axis is focused. Since light can pass through a lens in either direction, a lens has two focal points – one on each side.

How many principal focuses does a lens have?

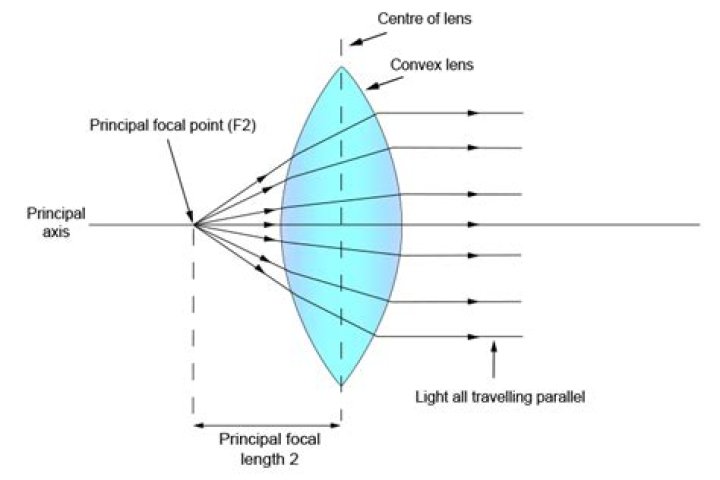

Call it the principal focus (convergence) point. However, a convex lens has two spherical surfaces and therefore it has two principal foci or two focal points. The second principal focus is that point on the principal axis from which all incoming rays, after refraction, become parallel.

What is principal focus of convex lens with diagram?

Parallel light rays that enter the lens converge . They come together at a point called the principal focus . In a ray diagram, a convex lens is drawn as a vertical line with outward facing arrows to indicate the shape of the lens. The distance from the lens to the principal focus is called the focal length .

How do you find the principal focus?

We can consider the sun's rays as all being parallel so we know where the shadow lines project back will be the principal focal point. Make an allowance for the lens centre and if you measure the distance between the lens centre and the principal focal point, you get the principal focal length.

Why is convex lens called a converging lens?

When a beam of light parallel to the principle axis strikes the lens these rays undergo refraction as they enter the lens and leave it. ... Because a convex lens concentrates the light rays that are incident on it, it is called a converging lens.

What is the focus of convex lens?

The principal focus of convex lens is a point at which the light rays travelling parallel to principal axis converge after passing through the lens.

Where are converging lenses used?

• Magnifying Glasses. The magnifying glass represents one of the simplest, most direct applications of a converging lens. ...
• Eyeglasses. A person becomes nearsighted or farsighted because the lens of the eye fails to properly focus light on the retina. ...
• Cameras. ...
• Microscopes.

What is converging and diverging lens?

Converging lenses are lenses which converge the light rays coming towards them, whereas diverging lenses are lenses which diverge the rays coming towards them. A converging lens have positive focal length. A converging lens causes exiting rays to be more convergent coming out than they were entering the lens.

Which out of these are converging lens?

It's important to remember that all the parallel rays will definitely converge to a point. However, only in the case of a Convex lens and Concave mirror, the image formed will be a real image that we can project onto a screen. Hence, they are known as converging lens and mirror respectively.

What is principal focus and secondary focus?

Primary or Principal focus is defined as the point on the principal axis of the lens at which if an object is placed, the image would be formed at infinity. On the other hand, secondary focus of a lens can be defined as a point on which parallel rays after getting refracted from the lens converge at.

Which lens has real principal focus?

A convex lens is said to have a real focus and a concave lens a Virtual Focus. Why? Convex lenses bend parallel light rays to form a point at a given distance, called the focal length.

What is principal focus Class 10?

The principal focus is the point where a beam parallel to the principal axis converges or appears to diverge from a point on the principal axis after passing through the lens.

What is principal section of lens?

1 : a plane passing through the optical axis of a crystal specifically : the principal plane that contains either the wave normal or the ray of light under discussion. 2 : a plane perpendicular to the edge of an optical prism.

Is principal focus and focus same?

What is difference between focus and principal focus? Principal focus is a point on the principal axis where the rays which are incident parallel to the principal axis meet after reflection. ... Focus is a point where rays parallel to each other meet. It is not necessary for the rays to be parallel to the principal axis.

What is meant by principal focus of a convex lens and concave lens?

The principal focus of a lens is defined as the point through which a parallel light after refraction passes through in the case of a convex lens and appears to pass through in the case of a concave lens.

Which lens is called a converging lens and B diverging lens *?

(a) A convex lens is a converging lens because it converges a parallel beam of light rays passing through it at its focus. (b) A concave lens is a diverging because it diverges the parallel beam of rays passing it.

Which of the following is a converging mirror?

Concave mirrors are converging mirrors. A concave mirror converges the parallel beam of light rays to a point, which is called its focus.

What is a converging lens short answer?

Converging lens directs light to a point at the optical center or axis of the lens. A lens that converts parallel rays of light to convergent rays and produces a real image. As long as the object is outside of the focal point the image is real and inverted.
