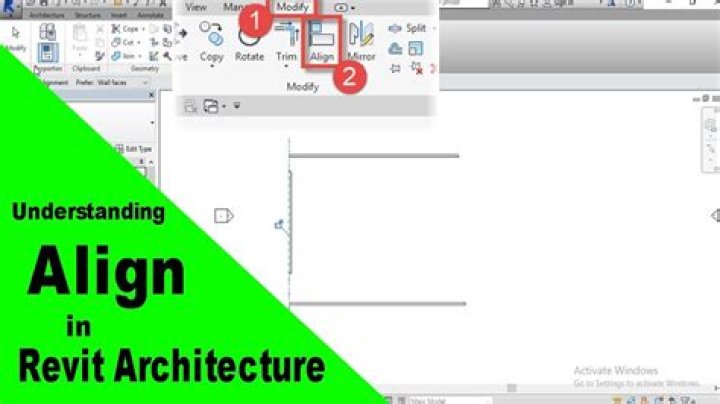

Click Modify tab Modify panel (Align). The cursor displays with the align symbol . On the Options Bar, select the desired options: Select Multiple Alignment to align multiple elements with a selected element.

How do you align in Revit?

1. Click Modify tab -> Modify panel -> Align (Keyboard Shortcut: AL)
2. The cursor appears with the align symbol.
3. When aligning walls, use the Prefer option to indicate how selected walls will be aligned: using Wall Faces, Wall Centerlines, Faces of Core, or Center of Core.

What is the Align tool in Revit?

The Align tool allows you to align, distribute or organize selected elements, annotations, tags and text along the axis you specify. Furthermore, the Arrange feature will automatically neatly place your tags around the current view.

What is the Align tool?

The align tool is used to quickly position objects aligned to each other. To use the align tool, you will first need at least two objects to align. Select all the objects to be aligned by holding shift and clicking on each object.

How do you align a sheet in Revit?

1. Open a sheet view.
2. Click View tab Sheet Composition panel (Guide Grid).
3. In the Assign Guide Grid dialog, select Create new, enter a name, and click OK.
4. Click and drag the extent controls to specify the extents of the guide grid.
5. (Optional) Drag additional views onto the sheet.

How to Use the Align Tool in Revit | Revit 2020

How do you align grid lines in Revit?

To do this, open a sheet view, then on the View tab, click Guide Grid. In the Assign Guide Grid dialog, enter a name for your grid and click OK. The grid is added to the sheet view. Select the grid to resize it, move it, or change the guide spacing.

Where is guide grid in Revit?

To do this, open a sheet view, then on the View tab, click Guide Grid. In the Assign Guide Grid dialog, enter a name for your grid and click OK. The grid is added to the sheet view. Select the grid to resize it, move it, or change the guide spacing.

Where is the Align feature on reels?

Step 1: On the Instagram Reels camera, tap the capture button at the bottom of the screen to capture your first clip. Step 2: Tap the “Align” button on the left side of the screen. This will add an overlay of your previous clip on top of the screen, which you can use to line up your next clip with the previous one.

Under which tab would you find the Align tool icon on Revit?

Examples. Click Modify tab Modify panel (Align). The cursor displays with the align symbol .

What does touch up do on Reels?

The Touch Up feature, recently made a part of Instagram's short form video sharing service Reels, is essentially a cosmetic feature that acts as a filter of sort on content. It attempts to make skin appear smoother and potentially more reminded than it actually is.

How do you make a reel longer than 30 seconds?

To access this feature, navigate to create a new Reel, then press the down button on the left side of the screen to reveal the menu. Tap “length” to toggle among options to create a 15-second, 30-second or 60-second Reel.

How do I show Reels on feed after posting?

Press “Find Hashtags” to find top Instagram hashtags. Press “Edit” to change the thumbnail / cover image. Turn on “Show in Feed” to add the Reels to your main profile grid. Optional: Turn on “Schedule Post” to schedule when you want to post your Reels.

How do I turn on the grid in Revit?

1. On the ribbon, click (Grid). Architecture tab Datum panel (Grid) Structure tab Datum panel (Grid)
2. Click Modify | Place Grid tab Draw panel and select a sketch option. Use (Pick Lines) to snap the grid to an existing line, such as a wall. ...
3. Click when the grid is the correct length.

What is grid in Revit?

Grid lines are finite planes. You can drag their extents in elevation views so that they do not intersect level lines. This allows you to determine whether grid lines appear in each new plan view that you create for a project. Grids can be straight lines, arcs or multi-segmented.

How do you propagate extents in Revit?

You can use Propagate Extents to accomplish this. Select the datum. Click Modify | <datum> tab Datum panel (Propagate Extents). In the Propagate Datum Extents dialog, select the parallel views in which you want the datum to look the same, and click OK.

How do Scope boxes work in Revit?

Use scope boxes to control the extents of datum elements and cropping of views. Scope boxes make views more consistent and clean throughout your project, making it easier for you to control a view by adjusting the boundary of a scope box.
