Frequency selective fading occurs when the symbol length is shorter than the delay spread, or equivalently when signal bandwidth is larger than the channel bandwidth.

What is the major cause of selective fading?

Selective fading or frequency selective fading is a radio propagation anomaly caused by partial cancellation of a radio signal by itself — the signal arrives at the receiver by two different paths, and at least one of the paths is changing (lengthening or shortening).

Which cause multipath or frequency selective fading?

… frequency-selective fading is caused by multipath interference, which occurs when parts of the radio wave travel along many different reflected propagation paths to the receiver. Each path delivers a signal with a slightly different time delay, creating “ghosts” of the originally transmitted signal at the receiver.

What causes time dispersion and frequency selective fading?

Explanation: Multipath delay spread leads to time dispersion and frequency selective fading. Doppler spread leads to frequency dispersion and time selective fading. These two propagation mechanism are independent of each other.

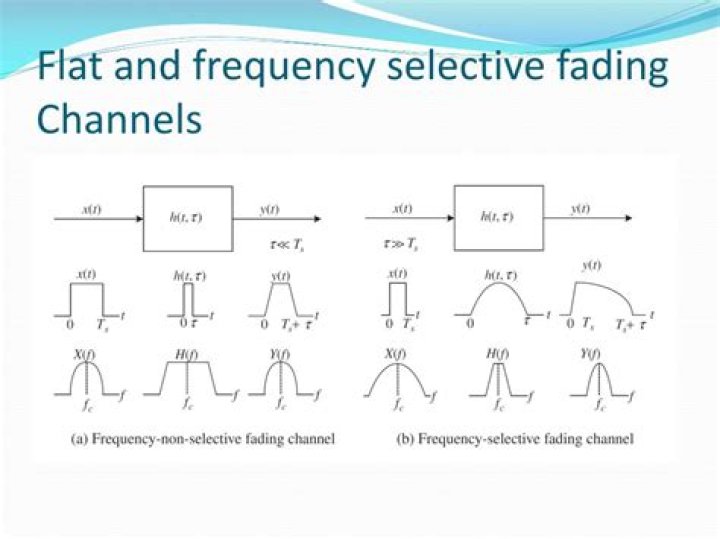

What are the differences between flat fading and frequency selective fading?

➨In flat fading, range of frequencies in a frequency spectrum are equally faded unlike in frequency selective fading where in one part of frequency spectrum is faded more than the other part of frequency spectrum.

What are Flat Fading and Frequency Selective Fading?

What is meant by frequency selective channel?

Frequency-Selective Channel

In the frequency domain, the characterization is based on the frequency autocorrelation function (ACF) which describes over which frequencies the channel is flat. In order to compare different channels, parameters which. quantify the channel are utilized.

What is fading in LTE?

In wireless communication environment, many copies of the signals get combined at the reciever side and some of them constructively combines and some of them destructively combines. ... This kind of process of signal deterioration by the multiple propogation path of a signal is called 'Fading'.

What is fading and selective fading?

Flat Fading: In flat fading, all frequency components get affected almost equally. Flat multipath fading causes the amplitude to fluctuate over a period of time. Selective Fading: Selective Fading or Selective Frequency Fading refers to multipath fading when the selected frequency component of the signal is affected.

What are the effect of frequency selective fading?

The presence of frequency selective fading on the transmission channel causes intermodulation distortion to appear at the base-band output of frequency modulation systems. In addition this frequency selective fading causes phase and amplitude fluctuations to appear on demodulated subcarriers.

Why frequency selective fading is also called as wideband channels?

For frequency selective fading, the spectrum S(f ) of the transmitted signal has a band-width greater than the coherence bandwidth Bc of the channel. Frequency Selective Fading channels are also called wideband channels since the symbol bandwidth is greater than the coherence bandwidth.

What are the causes of fading?

What Causes Fading. Fading can be caused due to natural weather disturbances, such as rainfall, snow, fog, hail and extremely cold air over a warm earth. Fading can also be created by man made disturbances, such as irrigation, or from multiple transmission paths, irregular earth surfaces, and varying terrains.

How do you reduce frequency selective fading?

Frequency selective fading is reduced by equalization, where a digital filter in the receiver counteracts the effects of the channel. where f_d is the Doppler shift, V the velocity, c the speed of light, and f_c is the carrier frequency.

What is Rayleigh fading distribution?

Rayleigh fading is a statistical model for the effect of a propagation environment on a radio signal, such as that used by wireless devices. ... Rayleigh fading is most applicable when there is no dominant propagation along a line of sight between the transmitter and receiver.

How do I stop multipath fading?

By controlling the beam phase of desired signals, destructive interference and multipath fading can be avoided. Dropped mobile phone connections, missing wireless data packets, and lost radio reception at traffic lights are all examples of the problems that can result from multipath fading (MPF).

Can we convert a flat fading channel to frequency selective channel?

This code actually transforms the spatial diversity into frequency diversity by converting the flat fading channel into a frequency selective channel. ... This code is not limited to QPSK and two transmit antennas as in Example 6.16 but can be used with any symbol constellations.

What is flat fading channel?

2. a) Flat fading. The wireless channel is said to be flat fading if it has constant gain and linear phase response over a bandwidth which is greater than the bandwidth of the transmitted signal. In this type of fading all the frequency components of the received signal fluctuate in same proportions simultaneously.

How does CDMA minimize fading?

CDMA systems use a signal fast chip rate for spreading the spectrum. It has a high time resolution, due to which it receives a different signal from each path separately. The RAKE receiver prevents signal degradation by summing all the signals.

What is Doppler spread?

Doppler spread refers to the widening of the spectrum of a narrow-band signal transmitted through a multipath propagation channel.

How can slow fading be minimized?

Explanation: Slow fading can be minimized by using error correcting codes and also by using diversity technique to get additional uncorrelated estimates of a signal. ... Explanation: Channel noise is stationary, additive and white with infinite bandwidth.

What is fading in wave propagation?

Fading is a deviation of the. attenuation that a signal experiences. over certain propagation media. It may vary with time, position. and/or frequency.

What is Nakagami fading channel?

Nakagami fading occurs for multipath scattering with relatively large delay-time spreads, with different clusters of reflected waves. Within any one cluster, the phases of individual reflected waves are random, but the delay times are approximately equal for all waves.

What is difference between fading and attenuation?

Attenuation is the lowering of the signal not frequency depending but (normally) over all frequencies. Fading is the lowering of the signal in time and freqnency, phase can also be effected.

What are other words for fading?

• dematerialize,
• disappear,
• dissolve,
• evanesce,
• evaporate,
• flee,
• fly,
• melt,

What is short term fading?

fast fading (Short term fading): rapid fluctuation is observed over distances of about λ/2 . For VHF and UHF, a vehicle traveling at 30 mph can pass through several fast fades in a second. slow fading (Long-term) : path loss “variation” caused by changes in lands cape, i.e., building.

What is shadow fading in wireless communication?

Shadow fading is the large-scale fluctuation of the signal envelope due to large (with respect to a wavelength) objects obstructing the propagation paths between the transmitter and the receiver.
