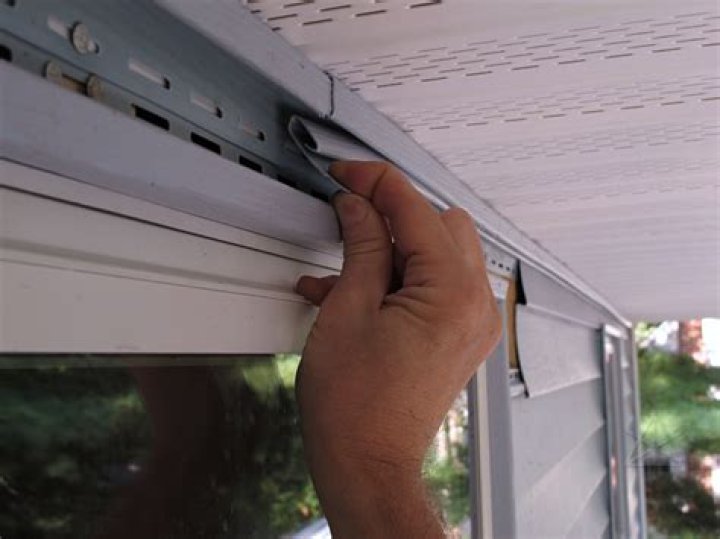

The undersill trim is installed under every window above the ground line. It conceals the top edge of the vinyl siding and is also used at the soffit line.

Do you need Undersill trim?

It needs to be under and window sills to keep it from buckling. I also use it at the top of the wall inside the J. I use a snap lock tool to punch rectanguler shaped hole that leave a tab that locks into the undersill trim so it never comes loose.

Is Undersill and finish trim the same?

Utility Trim: a piece of trim used any time the top lock has been removed from the siding, to secure a siding panel. Also referred to as “undersill” or “finish” trim; double utility trim is also available.

How does Undersill trim work?

Behind the window casing, undersill trim secures the cut vinyl panel under a window. To push water to the outside, builder's felt and flashing membrane direct water past the nailing hem of the first full panel below the window.

What do you put under vinyl siding?

Sheathing Nailability

Vinyl siding can be installed over common wood sheathings such as plywood, oriented strand board (OSB), or other materials (e.g., foam plastic insulating sheathing).

Installing Undersill Trim with CertainTeed Vinyl Siding

What is AJ channel used for?

J-channels are used around windows and doors, on inside corners and where the siding meets the soffit or roof at an angle. Simply slide the siding panel into the folded J-channel. Well-done installation of the J-channel gives the vinyl siding a professional look in corners, doors, windows and other edges of your home.

Do you nail J Channel tight?

J-channel should be nailed tight. I had an experience once where I had 4 j-channels butted end to end over the top of a 4' tall red brick fascade. For some reason I thought I would nail them loose so that they could move.

Can you use J channel for soffit?

The first step in installing soffit is to install the proper receiving channels. You have several options for receiving channels. You can use accessories such as F-channel or J-channel, or you can make channels using coil stock.

Do you need J channel around windows?

Windows on Washington Ltd

If you run a flat trim, you should put a drip edge above the window and above the trim. You will need some sort of j-channel to cover the cut edges on the siding regardless.

What is AJ channel on a roof?

J Channels are designed to be used in metal roofing applications. The J channel flashing metal acts as a receiver for metal roof panels, ridge caps and headwall flashing. It also helps waterproofing a roof, since its installation is water directional.

What is AJ channel around windows?

J-Channel flashing is designed specifically for trimming out openings on your wall panels. Windows, doors, and louvers on the walls of your building blend in seamlessly when J-Channel is installed. J-Channel hides the cut lines of panels giving your proj | Metal Siding Trim.

Is Tyvek necessary under vinyl siding?

Yes, DuPont^™ Tyvek^® WB can be used under any façade, including brick, stucco, vinyl, cedar siding, metal, and stone. Proper installation under each façade is essential to ensure Tyvek^® provides the maximum level of air infiltration resistance and bulk water holdout.

Should I put foam board behind my vinyl siding?

Basically, in order to get a good insulation value out of foam board, it has to installed directly on the sheathing of the house. ... Basically, if you want extra R-value for your walls but do not want to tear off your siding, don't bother with the foam board.

Does water get behind vinyl siding?

Vinyl is the rare siding product that remains completely unaffected by water behind it.

What is vinyl siding F trim used for?

F-channel is used to hold the soffit onto your house. Soffit is the vinyl siding that makes a ceiling under an overhang. The F-channel is a thin vinyl strip that is sold where siding is sold. The upside down F creates a shelf for the soffit to slide into and rest on.

What does F channel look like for siding?

F channel siding is shaped differently than the J channel. When you look at a piece of it from the end, you'll notice that its form is very similar to the letter F. The central branch of the F is a pinched or folded section of the metal. Along the bottom are slots for the nails used to affix the piece to the house.

What goes up first fascia or soffit?

First nail up the J-channel, then soffit panels, then fascia, then drip edge. It's a hassle to continually move your ladders (or scaffolding) and cutting table around the house, so concentrate on completing one overhang at a time until you get to the corners.

Will vinyl soffit sag?

A 14" or 12" spacing will provide a lot more support for the soffit to reduce sagging between fasteners. There will always be some slight bit of sag though which is unavoidable with vinyl but if installed properly it's not bad.
