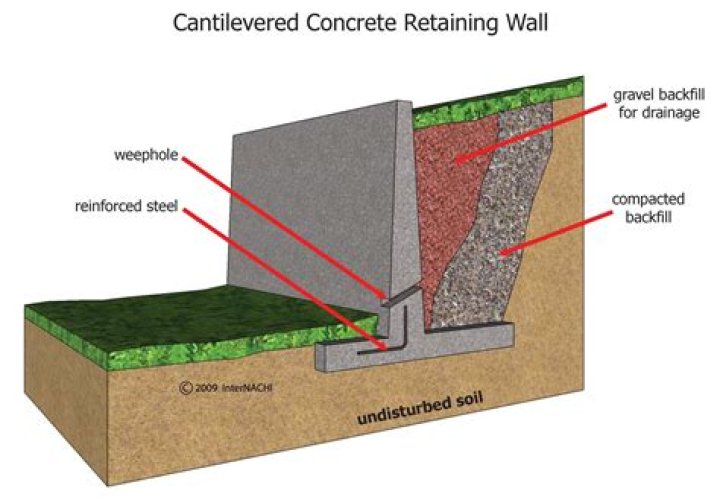

Cantilevered Retaining Wall This style is favored in commercial retaining walls for its strength. A “counter-fort” or “buttressed” retaining wall includes additional vertical wings to the foundation that provides additional strength and rigidity.

What is the purpose of cantilever retaining wall?

A cantilever retaining wall is one that consists of a wall which is connected to foundation. A cantilevered wall holds back a significant amount of soil, so it must be well engineered. They are the most common type used as retaining walls. The Cantilevered wall rests on a slab foundation.

What is the main use of retaining walls?

The main uses of retaining walls are to help prevent soil erosion, create usable beds out of steep terrain and to provide decorative or functional landscaping features. They may be independent structures, or may be part of a wider construction works, such as a building.

Where should retaining walls be placed?

When building a tiered set of retaining walls, position the higher wall behind the lower wall at twice the distance as the height of the lower wall. For example, if the lower wall is three-feet high, the higher wall should be set back at least six feet from the lower one.

Can I use paver base for retaining wall?

Fill the trench with about 3 inches of paver base, spread it with a rake and tamp it down. Tamping the base provides a strong foundation. When it's all level, you can begin installing the block.

Retaining Walls Explained | Types, Forces, Failure and Reinforcement

How far apart do retaining walls need to be?

Retaining wall posts should be at least three feet apart. The distance can be slightly longer or shorter if it works better with your measurements. However, you shouldn't go more than seven feet apart to make sure your wall is sturdy enough.

What is a cantilever wall?

Cantilever walls are walls that do not have any supports and thus lead to an open unobstructed excavation. Cantilever walls laterally restrain the retained side of the excavation by the passive resistance provided below the excavation depth.

What are the three types of retaining walls?

The three main types of retaining walls are concrete, and masonry or stone. The materials you choose will depend on the location of the wall, the aesthetic qualities you prefer, and how long you expect the wall to last. A retaining wall is used to contain soil and hold it in place in areas where a slope is present.

What are two typical failure modes of a cantilever retaining wall?

In addition to the three types of failures i.e. sliding, overturning and bearing failure, a retaining wall may fail in the following two modes if the soil underneath is weak.

What can I use to hold back soil?

A retaining wall is intended to hold back soil when there is a drastic change in elevation. Often retaining walls are used to terrace yards that originally had a steep slope. Additionally, retaining walls can help create usable outdoor space as well as control erosion, (see Landscaping a Split-Level Home.)

Why is cantilever retaining wall called cantilever retaining wall?

Cantilever retaining wall are usually of reinforced concrete and work on the principles of leverage. It has much thinner stem and utilize the weight of the backfill soil to provide most of the resistance to sliding and overturning. Cantilever retaining wall is the most common type of earth-retaining structure.

What is a gravity wall?

Gravity walls are built with massive blocks that use a tongue-and-groove system to lock together. They rely on their own weight to hold back the earth behind them. Each block in a residential design weighs approximately one tone and covers about five feet of wall space.

How do you keep a sliding wall from retaining?

1. Redeem surface drainage problems.
2. Reduce retaining wall height.
3. Use tie backs.
4. Extend the footing.
5. Remove and replace backfill materials.
6. Reinforce the front of the wall.
7. Add a key.
8. Use cantilevered soldier beams.

What is rigid retaining wall?

Retaining walls are relatively rigid walls used for supporting soil laterally so that it can be retained at different levels on the two sides. Retaining walls are structures designed to restrain soil to a slope that it would not naturally keep to (typically a steep, near-vertical or vertical slope).

What is the maximum height upto which cantilever retaining wall can be used?

Cantilever retaining walls are found best up to a height of 6m. For greater heights earth pressure due to retained fill will be higher due to lever arm effect, higher moments are produced at base, which leads to higher section for stability design as well as structural design.

What are the four basic types of retaining wall?

• Gravity Retaining Wall. The most basic of retaining walls, the gravity retaining wall uses sheer weight and mass to hold the soil at bay. ...
• Cantilevered Retaining Wall. ...
• Sheet Piling Retaining Wall. ...
• Anchored Retaining Wall.

How do you calculate a cantilever retaining wall?

1. Base width: L= 0.5H to 2/3H.
2. Thickness of base: D= 0.10H.
3. Stem thickness at the bottom: C=0.10H.
4. Width of the toe: B= 0.25L to 0.33L.
5. Stem thickness at the top: t=250mm (minimum)

What is piling retaining wall?

Earth and water retention

Soldier piled walls are a form of embedded retaining wall that are used to retain the soil behind to allow the ground level in front of the wall to be lowered, the retained height can be increased with the use of propping or anchoring.

What is cantilever wall and footing?

In cantilever retaining walls, the concrete base or footing holds the vertical masonry wall in position and resists overturning and sliding caused by lateral soil loading. The reinforcement is placed vertically in the cores of the masonry units to resist the tensile stresses developed by the lateral earth pressure.

Can you build a retaining wall on concrete?

While you can build a retaining wall on concrete, it isn't that straightforward. If you have an existing concrete base, you cannot just build your wall on top of it. Without being secured into the concrete, your wall will slide due to the soil pressure against the wall.

Do retaining walls need to be engineered?

While NSW requires engineering design for any retaining wall over 600mm, the Brisbane, Ipswich and Gold Coast councils generally only require this at 1m or higher. Basically, retaining a stable low-risk bank is not considered to require a 'structural' wall.

At what height does a retaining wall need to be engineered?

Most municipalities require a building permit and a design from a Licensed Engineer if your wall is taller than 4 feet high (measured from the bottom of the first block to the top of the last block).

What are the failures in retaining wall?

A retaining wall will fail when it is unable to withstand the force on it created by the soil behind it. A retaining wall failure can be the result of an inadequate design for the wall or the improper construction of the wall.

What is sliding failure in retaining wall?

Types of retaining wall failures:

During an earthquake, however, inertial forces and changes in soil strength may violate equilibrium and cause permanent deformation of the wall. Failure, whether by sliding, tilting, bending, or some other mechanism, occurs when these permanent deformations become excessive.
