Trusses were probably first used in primitive lake dwellings during the early Bronze Age, about 2500 bc. The first trusses were built of timber. The Greeks used trusses extensively in roofing, and trusses were used for various construction purposes in the European Middle Ages.

Who invented the truss roof?

It all started in Pompano Beach, Florida, when A. Carroll Sanford invented this system by connecting triangulated lumber with galvanized steel gusset plates. It resulted from an investigation of plywood gusset plates and the consolidation of glue, nails, screws, and staples from which trusses were developed.

When did truss roofs start UK?

The Encyclopedia Britannica claims that roof trusses were probably first used for primitive lake dwellings in the Bronze Age, at around 2,500 BC.

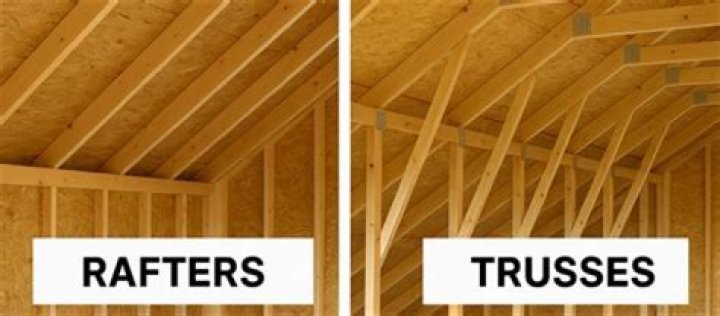

Do I have rafters or trusses?

Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support. Moreover, as said earlier, the entire weight of the roof is equally shared by a series of triangles inside the main frame.

Why are roof trusses popular?

Roof trusses have overtaken rafters as the most popular way to create a roof frame. And there's good reason why trusses have become more popular - they're cheaper, more convenient, and extremely versatile.

Floor and Roof Trusses - "How it's Made"

How long do roof trusses last?

How long do roof trusses last? Roof trusses, including attic trusses with the right treatment, replacement of (shingles, and flashing) should survive the entire lifetime of the house, so long as there are no disasters eg. fire.

How much does a roof truss cost?

Roof Truss Prices

You'll spend anywhere from $1.50 to $4.50 per square foot of building area for materials alone, or between $35 and $150 per truss, though extremely long and complex types can reach $400 each. Labor runs anywhere from $20 to $75 per hour.

Do roof trusses need support in the middle?

Generally, you don't need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.

When would you use a rafter?

Rafters for Open Design

One of the major benefits for using rafters today is the open space they create. If you plan on creating a vaulted space, rafters will help you maximize the open area. Trusses can create vaulted ceilings but they are not quite as efficient at opening up a space as traditional rafters.

What does a 6 12 roof pitch mean?

Roof pitch (or slope) tells you how many inches the roof rises for every 12 inches in depth. An Example of a roof pitch would be a “6/12 pitch” which means that the roof rises 6 ” for every 12″ inward towards the peak (or ridge). There are two suggested ways to measure a roof pitch.

What Centres are roof trusses?

In residential building, trusses are typically spaced at 600mm centres as opposed to 450mm centres for traditional framing techniques, to optimise strength and timber resources.

What is the history of the modern wooden roof truss?

The truss shape has been in use since man has used pieces of logs and then, centuries later, sawn lumber. In modern times, the first light wood frame trusses were built on the construction site using nailed boards or plywood gusset plates at the joints.

Why are trusses used?

Trusses are most commonly used in bridges, roofs and towers. A truss is made up of a web of triangles joined together to enable the even distribution of weight and the handling of changing tension and compression without bending or shearing. ... Trusses consist of triangular units constructed with straight members.

What are the 3 types of trusses?

• King Post truss. A king post truss is typically used for short spans. ...
• Queen Post truss. A queen post truss is typically a vertical upright with two triangles either side. ...
• Fink truss. ...
• Double Pitch Profile truss. ...
• Mono Pitch Truss. ...
• Scissor Truss (also known as Vaulted Truss) ...
• Raised Tie Truss.

How far can trusses span without support?

A roof truss can span up to 80' without support, however in any home that distance would be impractical and incredibly costly. Trusses are designed to span spaces without interior supports, and spans of up to 40' are the most common in today's homes.

Is it cheaper to use trusses or rafters?

Price: When the cost of a prefabricated truss package is compared to the material and labor costs to build rafters on site, the cost of trusses is 30% to 50% less.

Is it cheaper to build your own roof trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof. ... Span – Trusses can handle long spans over open areas better than rafters can. Good for DIY – Because of the ease of installing trusses, they are much easier for the do-it-yourselfer to build with.

Can a wood truss span 60?

In its first warning to installers, the B10 Summary Sheet states, Trusses with clear spans 60 feet or greater are extremely dangerous to install and require more detailed safety and handling measures than shorter span trusses.

What does a roof truss sit on?

The trusses are fist stacked on top of the walls, either by hand or with a crane. These trusses went up in about four hours. They are on 24-inch centers. The trusses are tied to the walls with small metal plates.

What is the maximum span for a 2x4 Rafter?

Spacing your 2×4 shed rafters at 24” on center limits the width of your roof. For light load roofs, 24” o.c. 2×4 rafters can span up to 7 ⅔'. For heavy loads, 2x4s can span up to 5 ½'.

Why are trusses so expensive?

-The steeper the roof pitch, the more expensive the trusses will be, because more lumber is needed to support steeper trusses. -A 4/12 pitch roof is the most economical if you're looking for dollar value. ... A 4/12 pitch means that the roof rises 4 inches for every 12 inches of run. -Trusses vary in terms of cost.

Can you build a roof over an existing roof?

Roofing over an existing roof is also called reroofing or an overlay. It is the process where roofers install a new roof over your existing one, i.e. add a new layer of shingles, which means that there is no tearing off of the old roof.
