The first seaworthy gyrocompass was produced in 1908 by the firm of Hermann Anschütz-Kaempfe in Germany. It was largely made possible through the efforts of Max Schuler, who developed the principles on which a practical shipborne gyrocompass depends. This compass was a marvel of mechanical ingenuity.

Why was the gyrocompass invented?

The gyrocompass was an important invention for nautical navigation because it allowed accurate determination of a vessel's location at all times regardless of the vessel's motion, the weather and the amount of steel used in the construction of the ship.

Where the gyrocompass is reliable up to?

Since gyrocompass was not relying on any magnetic readings, it could be safely used on metal-hull ships, although the reduced amount of rotation very near the polar regions would make even these devices unreliable. They would also work without issues during bad weather and night.

How a gyroscope becomes a gyrocompass?

To make a gyroscope into a gyrocompass, the wheel or rotor is mounted in a sphere, called the gyrosphere, and the sphere is then supported in a vertical ring. The whole assembly is mounted on a base called the phantom.

What is gyrocompass in ship?

A Gyro compass is a form of gyroscope, used widely on ships employing an electrically powered, fast-spinning gyroscope wheel and frictional forces among other factors utilizing the basic physical laws, influences of gravity and the Earth's rotation to find the true north.

Mechanical Gyrocompass | How Things Work

How do you pronounce gyrocompass?

The earlier gyro is the one that is a shortened form of gyrocompass or gyroscope, and it has a pronunciation that conforms to one's expectations: /JEYE-roh/.

Where was the gyrocompass invented?

The first seaworthy gyrocompass was produced in 1908 by the firm of Hermann Anschütz-Kaempfe in Germany. It was largely made possible through the efforts of Max Schuler, who developed the principles on which a practical shipborne gyrocompass depends. This compass was a marvel of mechanical ingenuity.

Is a compass a gyroscope?

A Gyro compass is a form of gyroscope, used widely on ships employing an electrically powered, fast-spinning gyroscope wheel and frictional forces among other factors utilising the basic physical laws, influences of gravity and the Earth's rotation to find the true north.

What is gyro compass Error?

The direction in which the compass settles, is therefore, different to the direction of the True North and depends on ship's course, speed and latitude of the observer. This error also increases as the observer's latitude increases.

What causes the gyro error?

This error occurs whenever the ship is subject to rapid changes of speed or heading. ... If the ship is steaming due north and rapidly reducing speed, mercury will continue to flow into the north pot, or the gravity pendulum continues to swing, making the gyro spin axis north heavy and thus causing a precession in azimuth.

How does a gyroscope work?

A gyroscope is an instrument, consisting of a wheel mounted into two or three gimbals providing pivoted supports, for allowing the wheel to rotate about a single axis. ... The wheel responds to a force applied to the input axis by a reaction force to the output axis.

What Elmer a Sperry invented?

His gyroscope-guided autopilot became known as a 'Metal Mike,' the mechanical helmsman. A prolific inventor and businessman, Sperry engineered a gyrocompass that made piloting ships, airplanes, and even spacecraft more reliable. He formed eight different companies to produce his inventions, some still in use today.

What is gyro repeater?

noun. a navigational compass, under the control of a gyroscope, that automatically indicates true north. Also called repeater.

What is free gyroscope?

A free gyroscope is a wheel, constructed similarly to a flywheel and suspended with 3 degrees of freedom. ... The gyroscope may spin around the spinning axis, and turn around the horizontal axis and the vertical axis.

What are the parts of gyrocompass and state their function?

A modern gyrocompass unit consists of a master unit, a control cabinet, a power supply unit a speed unit, and auxiliary electrical transmission and alarm units. The compass card has illumination facility and its brightness is adjustable.

What is gyro heading?

Directional gyros, also called heading indicators or direction indicators, are the fastest moving component in a piston-powered aircraft. ... It's connected to a compass card, which moves with changes to the aircraft heading and displays the compass rose direction in 5-degree increments.

Why do gyros fail in higher latitudes?

The gyro compass settles in the N/S direction by sensing Earth's spinning motion. ... The direction in which the compass settles, is therefore, different to the direction of the True North and depends on ship's course, speed and latitude of the observer. This error also increases as the observer's latitude increases.

What is master compass?

[′mas·tər ′käm·pəs] (navigation) That part of a remote-indicating compass system which determines direction for transmission to various repeaters.

Where are gyro repeaters usually mounted?

The master gyrocompass is usually located in a protected area of the ship below the waterline. One or more (generally three) gyro-repeaters are installed on the navigation bridge and another one is installed in the emergency steering space.

How do you use an astro compass?

To use the compass, the base plate is first levelled with the horizon then pointed roughly to what the user believes to be north. The equatorial drum is then tilted in relation to this base according to the local latitude.

What keeps a gyrocompass pointing in the same direction even when moved or rotated?

A spinning gyroscope, if supported in a gimbaled frame and spun up, will maintain the direction it is pointing toward even if the frame moves or rotates. In a gyrocompass, this tendency is used to emulate a magnetic compass.

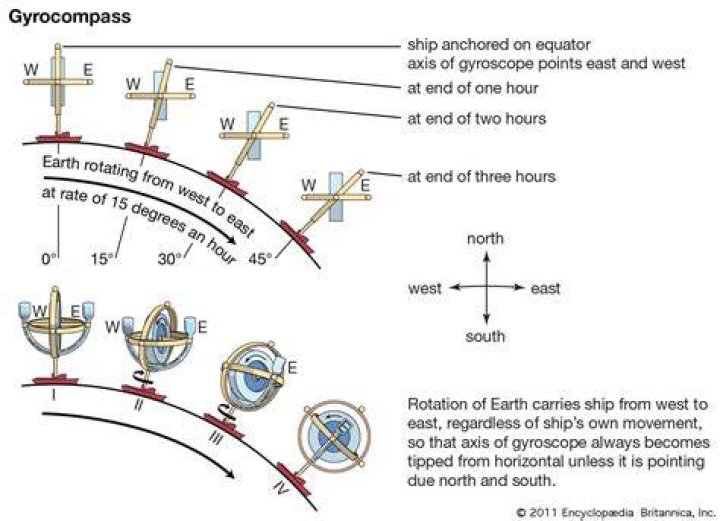

What is the principle of gyrocompass?

Gyrocompass is working with the high speed gyro rotor (gyroscope) to accurately seek the direction of true north. It operates by seeking an equilibrium direction under the combined effects of the force of gravity and the rotation of earth.

Why do ships have two radars?

Marine radars are X band or S band radars on ships, used to detect other ships and land obstacles, to provide bearing and distance for collision avoidance and navigation at sea. ... Therefore, displays can often overlay an electronic GPS navigation chart of ship position, and a sonar display, on the radar display.
