The earliest recorded examples of brazed joints were made around 3000 BC in Sumaria. They have survived the ravages of time because they were made predominantly using gold and silver alloys to produce the intricate jewellery for the Pharoahs that is still admired today.

When was braze invented?

3000 BC. The Sumerians, during the Bronze age in Ur (Iraq), made swords which were joined by hard soldering. Brazing makes it appearance in the world when the technology becomes widespread. The Egyptians heated iron ore in a charcoal fire to reduce it to sponge iron; the particles were then welded together by hammering ...

What is the history of brazing?

Brazing is a craft dating back to the ancient Egyptians. By 2975 BC, basic brazing processing techniques had begun to develop. The Sumerians, Greeks, and Romans also adopted and improved methods. Even the Europeans during the Middle Ages used the process to create magnificent objects.

Is brazing stronger than welding?

Brazing soundly beats welding when joining dissimilar metals. As long as the filler material is metallurgically compatible with both base metals and melts at a lower temperature, brazing can create strong joints with barely any alteration of the base metals' properties.

What metals Cannot be brazed?

Metals You Shouldn't Dip Braze

Heating metals, like silver or gold, to such high heat requires a lot of precision. It's more common for these metals to be soldered rather than brazed. Gold and silver can handle the lower heat better, and soldering can still give a good bond, even if it's not as strong.

What is Brazing? | Skill-Lync

Can I braze with a propane torch?

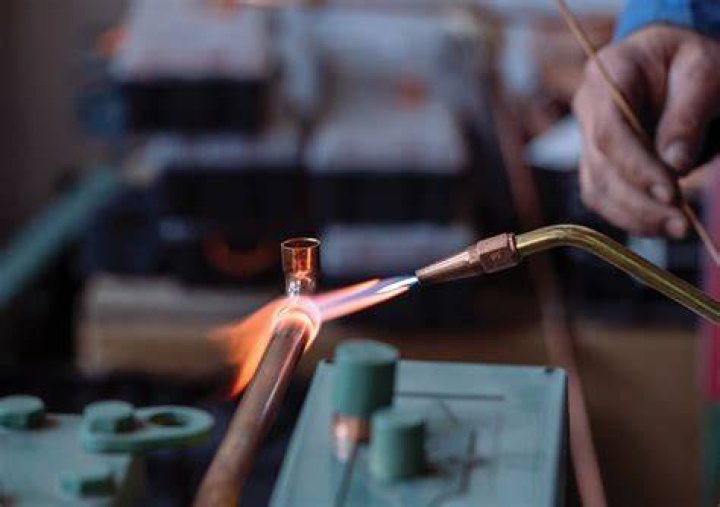

Brazing permanently joins two metals using a torch. You can use a propane torch to braze most metals you want to join. Propane torches are widely available in your local hardware stores, plumbing supply houses as well as at metalsmith and jewelry supply companies.

Can you braze over solder?

Yes you should be able to braze over the solder joint. Heat up the fitting and wipe off as much of the solder as you can with a rag before you try to braze the joint.

Is TIG welding like brazing?

With a TIG torch, you can put it to use on a number of tasks that range from difficult to impossible with a typical steel filler rod. ... Instead, you're brazing with a softer filler utilizing capillarity, while still using a TIG setup instead of a gas torch. It's a process sometimes known as TIG or electric brazing.

Why would you braze instead of Weld?

Brazing differs from welding in that the temperature is considerably lower and does not melt the base metals. Rather, the heat source melts a filler metal and draws it into the joint by capillary action. ... Lower temperatures also require less energy, which can result in significant cost savings.

Which gas is used for brazing?

While acetylene gas is always required as the fuel for gas welding, braze welding can be performed with the other fuel gases such as propane, natural gas, propylene, etc., as well as with acetylene.

When was soldering first used?

There is evidence that soldering was employed as early as 5,000 years ago in Mesopotamia. Soldering and brazing are thought to have originated very early in the history of metal-working, probably before 4000 BC. Sumerian swords from c. 3000 BC were assembled using hard soldering.

Is silver soldering the same as brazing?

Silver Solder is more fluid than Braze and works by being drawn into the joint by a capillary action. ... Silver Solder is used with a Flux, which chemically cleans the metal and keeps it clean during the Silver Soldering process. Silver Solder is also know as Silver Brazing.

Can steel be brazed?

Another important advantage of brazing is the ease of joining dissimilar metals using flux or flux-cored/coated alloys. ... You can braze steel to copper as easily as steel to steel. Welding is a different story because you must melt the base metals to fuse them.

What is the temperature of brazing?

Most brazing processes run at temperatures between 800°F and 2,000°F. For a strongest braze joint, the metals that are being joined together need to be at close to the same temperature.

Which flux is used for brazing?

White flux is useful for brazing copper, brass, steel, stainless steel, and nickel alloys. It has an active temperature range of 1050 -1600°F (565 - 870°C).

What metals can you braze?

Brazing is used to join metal parts and can be applied to a wide array of materials, like brass, copper, stainless steel, aluminum, zinc-coated steel, and ceramics. Laser brazing offers some distinct advantages in applications that require the joining of non-similar metals.

Is brazing stronger than soldering?

It can be distinguished from soldering by temperature: in brazing the filler metal melts above 840 °F (450 °C). ... Because of the higher temperatures a brazed joint is stronger than a soldered joint.

Is Brass welded or brazed?

All brasses, which includes Gilding Metal, can be silver soldered, MIG and TIG welded successfully. ... Phosphor Bronze, copper/tin alloys such as PB2, can be readily brazed or welded. Gas welding of brass is not recommended as the zinc will tend to vaporise causing fumes (zinc oxide) and porosity.

What are the disadvantages of brazing?

• Producing lower strength joints compared to welding.
• Producing joints that are not as well suited to high-temperature applications as welds.
• Fluxes may contain toxic components.

How strong is braze?

Joint strength depends on several factors: clearance between parts, base metal composition, service temperature and joint quality (low voids, good penetration). Joint design will also affect strength. The bulk tensile strength of silver braze alloys is 40,000-70,000 psi.

Can I braze copper to steel?

Technically, you can either braze or solder, though you cannot braze with solder or solder with brazing rods. But you can attach copper to steel with silver solder using a propane torch, and call it whatever you like. ... The pieces should not move while you solder or while the joint cools.

Why do we braze?

Brazing is performed at relatively low temperatures: Reducing the possibility of warping, overheating or melting the metals being joined. Brazing is economical: The cost per-joint compares quite favorably with joints made by other metal joining methods.

Is flux needed for brazing?

Why Brazing Requires Flux

Flux is a chemical compound applied to the joint surfaces before brazing. Its use, with a few exceptions, is crucial in the atmospheric brazing process. Heating a metal surface accelerates the formation of oxides, the result of chemical combination between the hot metal and oxygen in the air.

Can you braze with a butane torch?

Can you weld with a butane torch? No, butane torches do not reach a high enough level of heat and energy to be able to braze or weld metals efficiently. A butane blowtorch simply does not get hot enough to affect the metal.

Why would you braze instead of solder?

Brazed joints are generally used to achieve higher joint strength or fatigue resistance. To accomplish this, filler metals stronger than those composed primarily of tin must be used. However, this increased strength generally comes from filler metals made of materials that melt at higher temperatures.
