Castle nuts are useful when you need the power of a locking nut without the permanent commitment. As long as the castellated nut is secured with a cotter pin, it is not likely to move due to movement of the machine or vibration. It can also be used over and over again.

What are castellated nuts used for?

A castellated nut, also known as a castle nut, has three notches in one end, giving an appearance similar to the crenellated battlements of a castle. Castellated nuts are a positive locking device that's used to ensure that the nut remains affixed and resists vibration.

What must be used in conjunction with a castellated nut?

In addition to a bolt, they require the use of a pin. After tightening a castellated nut onto the end of a bolt, a pin is inserted through the center. The pin will essentially hold the castellated nut in place. It will run through the center of the nut and the center of the bolt to which the nut is attached.

What is the difference between a castle nut and a slotted nut?

Castellated nuts are formed with a round section at the top where the slots are located. Slotted nuts do not have this rounded modification. The flat sides of slotted nuts extend fully from the top to the bottom of the nut.

What type of nut is used with a cotter pin?

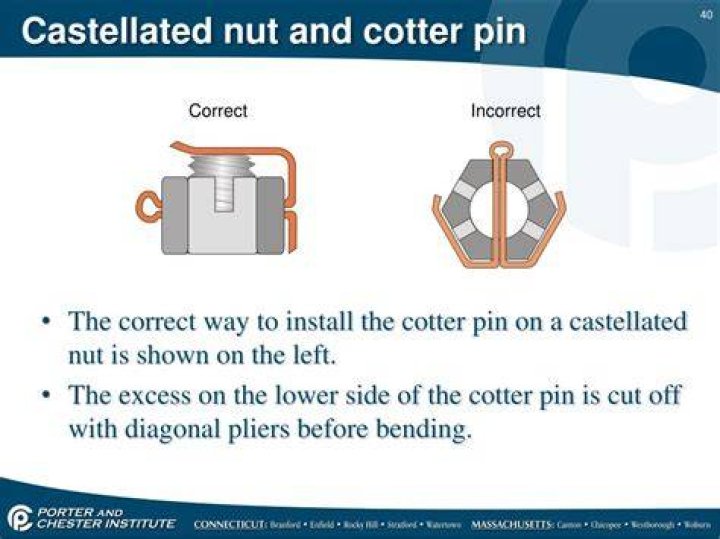

Castle nuts, or castellated nuts, and slotted nuts are designed to be used with cotter pins which fit through the slots and a hole made in the screw to lock the assembly in place.

Castle Nuts - How to Install or Fit a Cotter Pin and Slotted Nut | Fasteners 101

Are cotter pins one time use?

Cotter pins can be made from several different materials that are soft enough to bend. Typically, when deforming the pin once, the pins keep their strength and provide a strong locking mechanism that can be relied on. As a general rule, cotter pins should not be reused as the extra bending weakens the pin.

What nuts are used to lock joints?

Jam nuts are used as a locknut to prevent vibration from loosening a bolted joint. Before nuts were developed with "self‑locking" capabilities, two jam nuts would be tightened against each other so that nuts won't loosen over time.

Why usually a castle nut is used in an automobile axle for holding hub?

These nuts help to hold a wheel onto an axle. They are particularly useful because, as long as they are secured with a cotter pin, they will typically stay in place even when the wheel is moving and causing vibration.

Why slots are provided in slotted castle nuts?

Why do castle and slotted nuts have slots?" Castle nuts and slotted nuts have slots so that they can accommodate a cotter, split or taper pin or wire, which prevents a nut from loosening.

Do you need to stake a castle nut?

TDP castle nut has three staking notches, equally spaced, of 0.084 width +0.02/-0.00 tolerance, at 45 degree angle. ... Despite experience and lessons learned from LE armorers and users, some still do not believe it's necessary to stake the castle nut. Military carbines are delivered with their castle nut staked.

How tight should a castle nut be?

The nut on the spindle should be tightened until snug, with no side-to-side play in the hub and then backed off slightly, about maybe a 1/8 of a turn.

What fasteners are used to lock castle nuts?

Castle nuts are a great general purpose fastener when used in conjunction with another item to create a "lock". Commonly paired items include: Cotter pins - split pins that lock the bolt and nut assembly in place. Drilled Shank Fasteners - bolts that have a hole drilled through the middle for a pin.

What is slotted hex nut?

Slotted Hex Nuts are hex nuts with slots protruding from the top, similar to castle nuts. To use a slotted nut, a hole is drilled through the threaded portion of a bolt or stud. A cotter pin is then placed through the slots and hole and deformed so it cannot easily be removed.

How do you use a slotted nut?

A slotted nut has slots cut into one end of the nut. When it is used in an application, a bolt or threaded bar generally has a pre-drilled hole so that when the slotted nut is threaded on and torqued to the required position, it can be then secured using a cotter pin or write to prevent rotation.

What is meant by castellated beam?

A castellated beam is a beam style where an I-beam is subjected to a longitudinal cut along its web following a specific pattern. The purpose is to divide and reassemble the beam with a deeper web by taking advantage of the cutting pattern.

What is purpose of the pre waxed Nylock nuts?

Waxed Nylon Lock Nuts Prevent Thread Galling | Fasteners 101

And this nut is what they call "pre-waxed". It's waxed to prevent any galling. Galling gets into where your nut seizes onto the bolt and you can't go any further. The only thing that starts to happen is either you snap the bolt or snap the nut.

Are castle nuts reverse threaded?

That's a castle nut and same as the right side. Both are definitely right hand thread. Good suggestions from bombardier.

What size is Castle nut?

Castle nut size refers to its nominal thread diameter. Typically, sizes range from about 1/4" to 1 1/2". Size is specified in inches, usually fractional rather than decimal. Nut width and height vary with the size of the castle nut.

What is a castle nut wrench?

The Cross Castle Nut Wrench Tool is precision built from high carbon steel that is 2X thicker and stronger than the industry standard. ... Each wrench features a rubberized grip for improved performance, safety and comfort.

How do jam nuts work?

The jam nut essentially acts as the "other object", as the two nuts are tightened against each other. ... Then the other nut is screwed down on top of the first nut. The inner nut is then slackened back and tightened against the outer nut. Jam nuts can also be used in situations where a threaded rod must be rotated.

What material is a Nyloc nut made from?

A Nyloc nut is a locking nut that has a nylon insert at the end which is slightly smaller than the diameter of the screw. The nylon insert deforms over the thread of the screw, creating friction which locks the nut in place. The side of the nut without the nylon ring is threaded onto the bolt first.

Can you reuse a lock nut?

Are Lock Nuts Able to be Reused? ... They are able to be reused, but only if the prevailing torque meets certain specifications. Lock Nuts with a Nylon Insert are perhaps the most reliable lock nut, as it is only limited by the temperature of the application it has been used in.

What do you use cotter pins for?

A cotter pin is a simple fastener that's used to secure a bolt in place. Consisting of a U-shaped piece of metal, it's inserted through the hole of a bolt, after which the ends are twisted together. The cotter pin secures the bolt in place so that it's less likely to loosen and come out.
