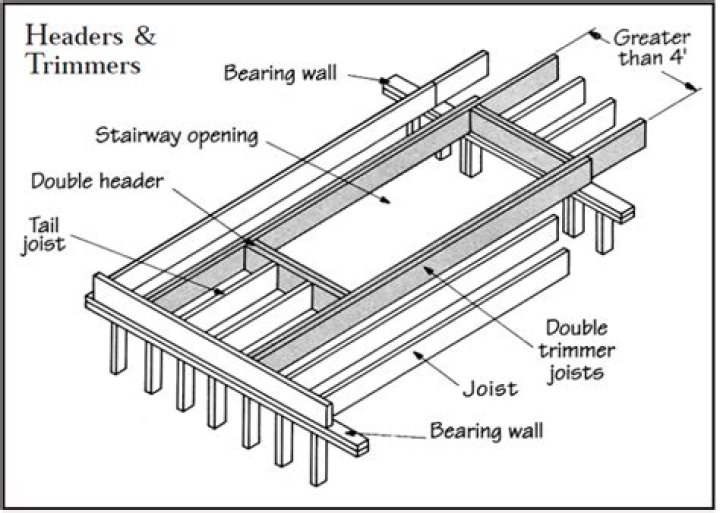

If the header spans more than 4 feet, it must be doubled and the loads transferred to double trimmer joists.

Do I need double joists?

Joist hangers are an integral part of a building frame. In some cases, it becomes necessary to place two or more joists side by side to add more vertical support or to support a large piece of horizontal lumber such as a rim joist. When this need arises, you will need double or triple joist hangers.

Does double joists increase span?

For example, if you double the thickness or number of joists in a floor, the distance the boards can span will increase by approximately 25%. But if you double the width of the boards, the distance the joists can span increases between 80% to 100%, even though you're using the same board feet of lumber.

Do deck beams need to be doubled?

You must use 2x material bolted together to create a deck beam, or use metal or engineered lumber. So, rather than using a 6×6 beam, this would mean using three 2x6s bolted together. The IRC also regulates how far a deck beam can span before it needs support from a post and footing. What is this?

How far can a 2x10 beam span without support?

A double ply beam can span in feet if there is no overhang beyond it. A double 2x12 beam can span 12 feet, a double 2x10 can span 10 feet, and so on.

How to build a deck | Problems you will run into and how to fix them

How far apart do support beams need to be on a deck?

Deck joists are typically spaced either every 12 inches or 16 inches on center. The maximum joist spacing you can use will depend on the size and allowable span of your joists.

How far can a 2x8 beam span without support?

A rule of thumb is 1.5 times a joist's depth but in feet when spaced at 16” centers. In general, a 2×8 will span 1.5 x 8, so 12-feet.

What size header do I need for a 12 foot opening?

The header itself should be nine inches wider than the door. The rough opening's width should be three inches longer than the door, measured between the left and right edges. So, in a 12-foot wide garage door, the rough opening will be 15 inches wide.

How far can a 2x6 header span without support?

A 2×6 can support up to 50 pounds per square foot of weight without sagging with a maximum span of about 12 feet when spanning a distance horizontally, with the 2×6 standing in a vertical position.

How far can a double 2x6 span without support?

The maximum distance a 2×6 can span, according to the 2018 IRC, for a floor joist, is 12'-6”, ceiling joist 20'-8”, rafter 18'-0”, deck board 24”, deck joist 9'-11”, deck beam 8'-3”, and 6'-1” as for header.

How big of a beam do I need to span 16 feet?

For 16 foot span, size of beam for 2-3 storey residential building, using thumb rule,1 foot (span of the beam) = 1inch (depth of beam), is about 12″×16″ in which beam width is 12″ and beam depth is 16″ providing with 2nos of 12mm bar at top, 2nos of 16mm bar at bottom and 2nos of 12mm crank bar of Fe500 with stirrup T8 ...

What does double joist mean?

A joist is a horizontal structural member used in framing to span an open space, often between beams that subsequently transfer loads to vertical members. ... Joists are often doubled or tripled, placed side by side, where conditions warrant, such as where wall partitions require support.

Where should double joists be located?

As with fitted floors, a pair of floor joists is typically placed at the beginning and end of a run of floor joists.

Do load bearing walls run parallel to the joists?

To determine if a wall is a load-bearing one, Tom suggests going down to the basement or attic to see which way the joists run. If the wall is parallel to the joists, it's probably not load-bearing. If the wall is perpendicular, it's most likely load-bearing.

Will a 2x8 span 16 feet?

Deck Joist Spacing

How do I keep them even? In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2x8 up to 12 feet; 2x10 to 15 feet and 2x12 to 18 feet. The larger the deck, the larger the joists.

How big of a header do I need for a 10 foot span?

10' header

You could get away with a 10" LVL since rule of thumb is 1" of thickness = 1'-0" of span. The nice thing about LVL's is that they are 1-3/4" thick. Two of them equal your 3-1/2" stud thickness.

How do you calculate header span?

It went like this: Measure the span in feet and add 2 to that number. The sum will be the height of your double header in inches. For example, if the span is 4 feet, add 2 to 4 for a sum of 6. Therefore, the header would need to be made from doubled 2x6s.

What is the maximum span for a 4x6 header?

A Redwood 4x6 beam should span no more than 6' between supporting posts.

What size header do I need for a 20 foot span?

If you are considering a 20-foot span, there is a certain size beam that is required. For 20-foot spans, the wood beam has to be at least 18 inches in depth.

How long can a 2x6 header span?

For normal deck loads, a triple 2x6 beam over a span of 10' feet should be enough. The maximum span is 9' feet for a single 2x6 #2btr yellow pine.

How thick should support beams be?

Steel columns (lally columns) are typically 3 inches or more in diameter with a wall thickness of about 3/16 of an inch. Standard top and bottom bearing plates are four inches by four inches by 1/4 inch thick. Larger top bearing plates may be required to support wood beams.

What is the standard floor joist spacing?

Most often, floor joist spacing is 16 inches apart on center, but this can vary depending on building codes and the requirements of the structure in the blueprint. Floor joists help distribute the load of a structure.

How wide should joists be on a deck?

Commonly used joist sizes are 2-by-6, 2-by-8 and 2-by-10. For example, when you space joists 16″ apart — which is standard for residential decks — a deck spanning 9 1/2′ would require 2-by-6 joists, a 13′ deck would need 2-by-8 joists and a 16′ deck calls for 2-by-10 joists.
