Spherical aberration occurs when incoming light rays pass through lenses with spherical surfaces and focus at different points on a camera's sensor. It is a subtype of monochromatic aberration—an imperfection caused by a lens focusing on a single color of light.

What causes spherical aberration and how can we minimize it?

Spherical aberrations can be reduced in different ways: The simplest method is to restrict the area of the incoming light with an optical aperture. That way, one can prevent that the outer regions, where spherical aberrations are most extreme, contribute to the image. However, that implies a reduced light throughput.

What causes spherical aberration in telescopes?

Spherical aberration is caused by your telescope focusing light at different points across the mirror, resulting in some rays bundling ahead of and some past the focal plane. It manifests itself as fuzzy images, and in stars inside or outside focus having brighter diffraction rings on one side of focus than the other.

What is the most common aberration that spherical lenses give?

Ways to Reduce Spherical Aberration

Spherical aberration is most pronounced when the diaphragm of the lens is wide open (maximum aperture).

What is spherical aberration in a lens?

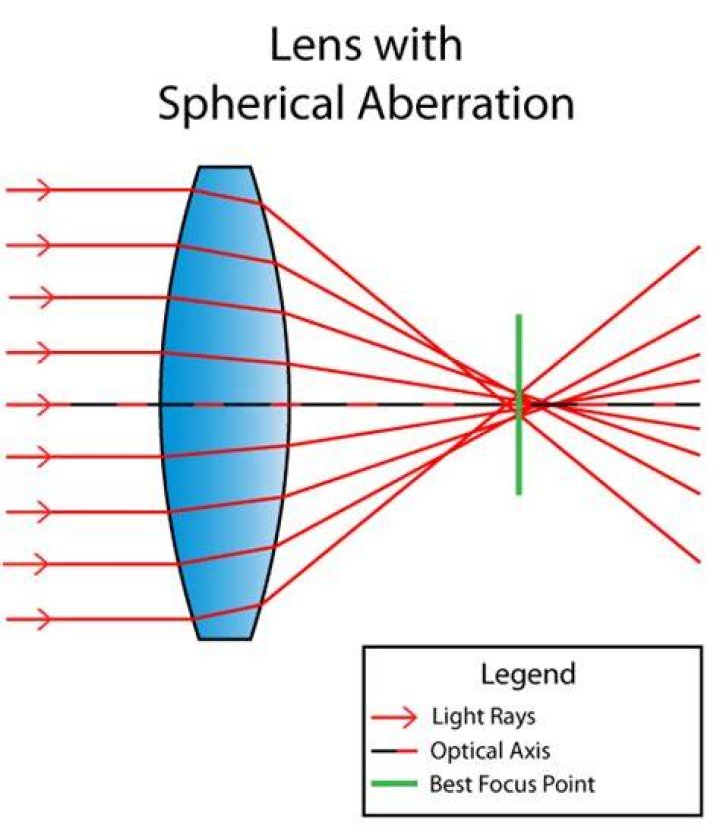

Spherical aberration is the blurriness at the edge of an image. Using a spherical lens on a camera causes light near the edge of the lens (farther from the optical axis) to converge closer to the lens (shown in Figure 1).

Spherical Aberration Explained - PureVision2

How spherical aberration is formed?

Spherical aberration is present when the outer parts of a lens do not bring light rays into the same focus as the central part. Images formed by the lens at large apertures are therefore unsharp but get sharper at smaller apertures.

How is spherical aberration eliminated in a reflecting telescope?

Spherical aberration can be eliminated from refractors using aspheric lenses, in which the curvature of the surfaces is not constant, but these are difficult and expensive to produce.

Why does coma aberration occur?

Coma is caused by the curvature of the principal planes of the optical system. ... The comet like shape in comatic aberration is due to the refraction differences when light rays pass through the various zones of the lens. The extent of distortion depends on the shape of the thin lens.

What are the causes of aberration?

Monochromatic aberrations are caused by the geometry of the lens or mirror and occur both when light is reflected and when it is refracted. They appear even when using monochromatic light, hence the name. Chromatic aberrations are caused by dispersion, the variation of a lens's refractive index with wavelength.

Which of the following aberration will not occur for spherical mirrors?

Chromatic Aberration is NOT possible in spherical mirror

The density of mercury is 13.59 g/cm3 .

What causes coma in astrophotography?

Coma occurs when light from a single source entering at the edge of the lens is not projected at the same size as light entering the center of the lens. For this reason it becomes more apparent on point sources of light at the edge of the frame and at low f/numbers.

What are the factors on which the spherical aberration of a lens depends?

The spherical aberration produced by a lens depends on the distance of the object point and varies approximately us the square of the Page 4 distance of the object ray above the axis of the lens. The spherical aberration produced by a convex lens is positive and that produced by a concave lens is negative.

What is spherical aberration Physics 12?

(i) (A) The defect in the definition of image produced due to inability of the marginal and paraxial set of rays to come to focus at a single point after refraction through the lens is called spherical aberration. ... (ii) Spherical aberration can be minimized or reduced by using stop or aperture.

What causes spherical aberration chegg?

Overview of Spherical Aberration

They fall into two classes. These aberrations are caused in all single color rays. They are caused due to the geometry of the lens or mirror. These aberrations are caused due to rays consisting of seven colors.

What is an effect of spherical aberration?

The optical effect of spherical aberration is to refract peripheral paraxial (incident light that is parallel to the optical axis) light rays by greater or smaller amount relative to central rays with increasing distance from the optical axis.

What is spherical aberration and chromatic aberration?

There are two primary causes of non-ideal lens action: Geometrical or Spherical aberrations are related to the spherical nature of the lens and approximations used to obtain the Gaussian lens equation; and Chromatic aberrations, which arise from variations in the refractive indices of the wide range of frequencies ...

Can oblique astigmatism be corrected?

The Axis of Astigmatism Makes A Difference: Prior To LASIK, Oblique Astigmatism Causes Patients More Vision Problems Than With the Rule or Against the Rule Astigmatism. LASIK or PRK Can Correct Astigmatism.

What is the difference between astigmatism and coma?

Coma is caused by obliquely inciding parallel rays of light on a spherical lens, astigmatism is caused by obliquely inciding diverging rays of light on the spherical surface. Both errors can primarily be corrected by sophisticatedly combining several lenses and using aspheric lenses.

How do you fix an astigmatism?

“Astigmatism can be corrected with eyeglasses, contact lenses, and refractive surgery — like LASIK. It also can be corrected during cataract surgery,” Gary Heiting, OD, an optometrist and senior editor at All About Vision tells WebMD Connect to Care.

How do you test for spherical aberration?

So, the best way to test for spherical aberration, in its various forms, if a lens if showing blurry images, if to shoot out of focus highlights and analyse the shape of the blur patterns. Another symptom is uniformity over the field.

Do mirrors suffer from spherical aberration?

We have seen that both mirrors and lenses suffer from spherical aberration, an effect which limits the clarity and sharpness of the images formed by such devices.

What is spherical aberration astronomy?

Spherical aberration is an aberration that may occur in both the case of lens and mirrors. Here, light rays nearer the optical axis are refracted, or reflected, differently, from light rays further away from it. ... In telescopes, this aberration is seen as a blurring of the image.

What is spherical aberration simple?

In optics, spherical aberration (SA) is a type of aberration found in optical systems that have elements with spherical surfaces. ... Light rays that strike a spherical surface off-centre are refracted or reflected more or less than those that strike close to the centre.

What is transverse spherical aberration?

The distance of the ray from the optical axis at the paraxial focal plane is called the transverse spherical aberration (TSA). ... Spherical aberrations can be reduced by equalizing the amount of refraction at both surfaces of a lens.

What is spherical aberration Class 10?

Spherical aberration is an optical effect observed in an optical device (lens, mirror, etc.) that occurs due to the increased refraction of light rays when they strike a lens or a reflection of light rays when they strike a mirror near its edge, in comparison with those that strike nearer the centre.
