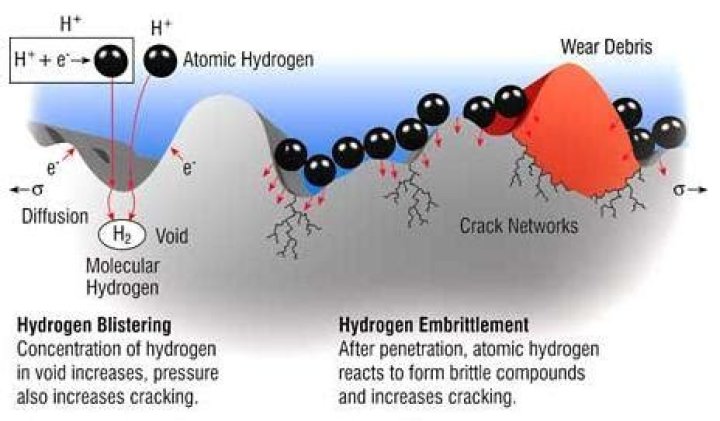

Hydrogen Embrittlement occurs when metals become brittle as a result of the introduction and diffusion of hydrogen into the material. The degree of embrittlement is influenced both by the amount of hydrogen absorbed and the microstructure of the material.

How long does it take for hydrogen embrittlement?

In many cases it can be performed in 30 hours or less. ASTM F1940 is the Standard Test Method for Process Control Verification to Prevent Hydrogen Embrittlement in Plated or Coated Fasteners.

What does hydrogen embrittlement do?

Hydrogen embrittlement is a metal's loss of ductility and reduction of load bearing capability due to the absorption of hydrogen atoms or molecules by the metal. The result of hydrogen embrittlement is that components crack and fracture at stresses less than the yield strength of the metal.

How is hydrogen embrittlement detected?

A simple bend test is often used to detect the presence of hydrogen embrittlement. Met- allographic techniques (Figure 4) can also be used to look at the near surface and for the presence of voids at grain boundaries.

What causes hydrogen induced cracking?

Hydrogen Induced Cracking (HIC) is a common form of wet H2S cracking caused by the blistering of a metal due to a high concentration of hydrogen. The blistering damage tends to form parallel to the surface and to the direction of hoop stress.

What is hydrogen embrittlement and what can be done to prevent it?

What is embrittlement?

noun. the act or process of becoming brittle, as steel from exposure to certain environments or heat treatment or because of the presence of impurities.

Does hydrogen embrittlement affect aluminum?

It is found that the mechanical properties of aluminum alloy are affected adversely by hydrogen embrittlement. The hydrogenated counterpart of alloy has a lower degree of ductility relative to the original alloy; however, the plastic flow behavior of material remains virtually unaffected.

How can caustic embrittlement be prevented?

Caustic embrittlement can be prevented through several methods, including: Controlling the temperature and potential. Controlling the stress levels and hardness. Use of materials that do not crack when used in given environments.

How do you prevent hydrogen induced cracking?

To prevent hydrogen cracking, apply preheating or increase the preheating and interpass temperature. This will slow down the cooling rate and allow the excess hydrogen to diffuse before being trapped in the weld metal.

What is hydrogen embrittlement in plating?

Hydrogen embrittlement is a loss of ductility due to excess hydrogen absorption, which makes the material brittle. ... Hydrogen embrittlement can also occur during pre-plating processes such as cleaning and pickling, as well as during electroless plating procedures.

What is an embrittlement phenomenon?

Embrittlement is a significant decrease of ductility of a material, which makes the material brittle. Embrittlement is used to describe any phenomena where the environment compromises a stressed material's mechanical performance, such as temperature or environmental composition.

Does hydrogen embrittlement increase hardness?

Steels below these tensile and hardness levels are generally immune to hydrogen embrittlement. ... Increased hardness, most commonly by heat treating, is accompanied by a corresponding decrease in ductility. In simple terms, ductility is the ability of a material to deform under stress rather than crack or fracture.

Can liquid hydrogen cause embrittlement?

Hydrogen can have two main effects on materials: Page 2 1°- At low temperature for example when it is stored in liquid form it can have an indirect effect called “cold embrittlement”.

How do you reduce hydrogen embrittlement?

A common way to reduce the hydrogen in the metal is to perform an embrittlement relief or hydrogen bake out cycle. This is a powerful method of eliminating hydrogen before it begins causing damage to the part. To be effective, bakeout must be performed within 1 to 2 hours after introduction of hydrogen to the material.

Is titanium susceptible to hydrogen embrittlement?

Beta titanium alloys do not tend to form hydrides due to their high hydrogen solubility and usually, especially at room temperature and low hydrogen pressures, they are considered to be fairly resistant to hydrogen embrittlement.

What three conditions must be present to cause hydrogen induced cracking?

In order for heat affected zone cracking to occur, three conditions must be present simultaneously: there must be a sufficient level of hydrogen; there must be a sufficient- ly sensitive material involved; and, there must be a suffi- ciently high level of residual or applied stress.

What causes caustic embrittlement?

Caustic Embrittlement is a form of corrosion caused by a high concentration of sodium hydroxide (Na(OH)). It is characterized by the formation of irregular intergranular cracks on the metal. particularly at places of high local bends such as bends and joints causes caustic embrittlement.

Which is responsible for caustic embrittlement?

At anode , sodium hydroxide attacks the surrounding material and then dissolves the iron of the boiler as sodium ferrate forming rust. This causes embrittlement of boiler parts like rivets, bends and joints, which are under stress.

Does hydrogen make metal brittle?

However, for metals like steel, aluminum and magnesium - which are commonly used in automotive and energy technology – hydrogen is not quite ideal. It can make these metals brittle; the ductility of the metal becomes reduced. Its durability deteriorates. This can lead to sudden failure of parts and components.

What is embrittlement temperature?

Temper embrittlement refers to the decrease in notch toughness of alloy steels when heated in, or cooled slowly through, a temperature range of 400°C to 600°C. Temper embrittlement can also occur as a result of isothermal exposure to this temperature range.

What is cryogenic embrittlement?

In cryogenics two embrittlement mechanisms do occur, low temperature embrittlement and hydrogen embrittlement. Low temperature embrittlement does affect most materials more or less pronounced. It causes overloaded components to fracture spontaneously rather than accommodating the stress by plastic deformation.

Is hydrogen magnetic or not?

Hydrogen gas is, in effect, only very weakly magnetic. The reason for this is that hydrogen atoms are not found in isolation. ... Due to this phenomenon, the molecule is only weakly magnetic and is considered to lack a permanent magnetic moment.

What elements make up hydrogen?

Hydrogen was first recognized as a distinct element by Henry Cavendish in 1766. Composed of a single proton and a single electron, hydrogen is the simplest and most abundant element in the universe.
