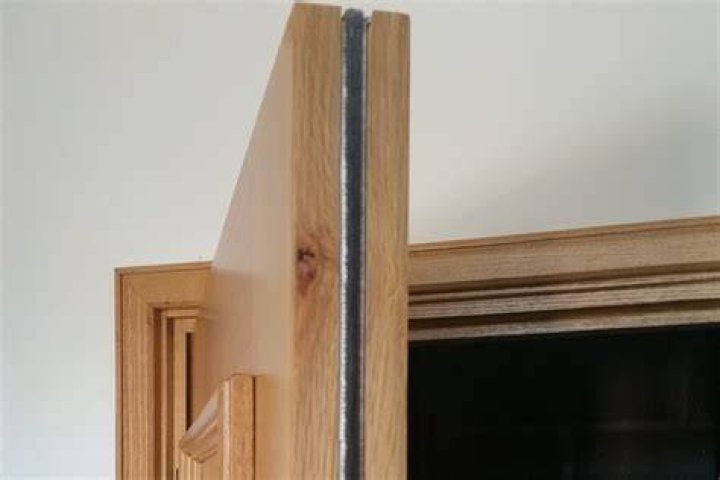

Fitting intumescent strips to fire doors They are designed to swell once the ambient temperature exceeds 200°C, which will usually occur within the first 10-20 minutes of a fire. Properly installed intumescent strips will fill gaps between the door and frame to achieve fire compartmentation.

Are intumescent strips a legal requirement?

The Building Regulations indicate where you have fire doors, these would require intumescent strips. ... In a standard fire door, the door leaf must be free to move within the frame, and in order for this is to be possible, there must be a small gap around the perimeter.

Do all fire doors have to have intumescent strips?

ALL fire doors MUST be fitted with the appropriate seals.

Intumescent seals may be placed into grooves machined in the two vertical sections and top edge of the door frame.

Are seals required on fire rated doors?

Do fire rated doors require the use of gaskets to seal the opening? Answer: Typically, perimeter gasketing is not required on fire rated doors. However, doors in smoke and draft control areas may require it depending on the city, state, and/or county code.

Where do you put the intumescent strips?

Intumescent strips are generally fitted into the door frame but are sometimes into grooves in the door itself. If you don't have grooves in your fire door or frame, you can use a router to make a groove suitable for the intumescent strip.

Intumescent Strip Sizes Explained

How do intumescent strips work?

An intumescent strip is chemically designed to expand when exposed to extreme heat. ... Once a fire breaks out in a room, the heat causes the strip to expand and seal the gap around the frame to contain the fire. This gives you enough time to escape and call your nearest fire brigade for help.

What are intumescent strips?

Intumescent Strips, or fire door strips, are fitted to the door and, when exposed to extreme heat, expand to close any edges or gaps that may leave the fire door vulnerable to fire and smoke spread. ... Use in conjunction with intumescent seals to offer the most fire protection in your fire doors.

When should a fire door have smoke seals?

Fire Door Seals or Fire and Smoke Seals

As soon as the temperature in the vicinity of the strips exceeds 200°C, usually about 10-15 minutes after the start of a fire, the seal swells and seals the gaps between the door and frame.

What door rating is required for a 3 hour wall?

2.2 Three-hour (180-minute) doors

A door with a three-hour fire protection rating is usually required in walls that separate buildings or that divide a large building into smaller fire areas. The wall rating is four hours.

What is code for fire rated door?

The International Building Code requires fire doors to be tested using the positive pressure test—either UL 10C, Positive Pressure Fire Tests of Door Assemblies, or NFPA 252, Standard Methods of Fire Tests of Door Assemblies, with the neutral pressure level at a maximum of 1016 mm (40 in.)

What are the legal requirements for a fire door?

What are the legal requirements for fire doors? Building Regulations specify that in homes over two storeys high, every door of a habitable room leading to a stairwell must be a fire door (this does not apply to toilets or bathrooms). Fire doors are also required between the house and integral garage (if applicable).

Are intumescent hinge pads required?

IMPORTANT LEGAL INFORMATION: It is a legal requirement for hardware fitted to fire resisting doors to be CE marked. ... You should fit these intumescent pads under any CE marked hinges to comply with the marking requirements.

Is it a legal requirement to have a fire door?

Are fire doors a legal requirement? Fire doors are a legal requirement in all non-domestic properties, such as businesses, commercial premises, and public buildings. They are also required in residential flats and houses of multiple occupancy.

Does my front door need to be a fire door?

The front door of every individual flat needs to be a tested, and certified, fire door. They should be fitted with the appropriate intumescent strips, smoke seals and a self-closing mechanism. The minimum requirement is for an FD30 door to be fitted, providing 30 minutes fire resistance.

Can you paint over intumescent strips?

If your fire doors are protected with a simple intumescent strip only (without a cold smoke seal) they can be over painted as long as it isn't damaged by the painter's preparation. Heavy sanding or the use of chemical strippers and heat guns during redecoration must be avoided.

Are fire doors required in rented property?

Do you need fire doors in a rented property? Currently only Houses in Multiple Occupation need fire doors if they are likely to be used as an escape route. To ensure they meet the safety requirements, it is worth getting a certified fire door which is fire-resistant and closes automatically.

Can knock down frames be fire rated?

Answer: Yes, most knock down frames (with no welding option on a pressed steel frame) can be fire rated up to 90 minutes provided they are installed correctly in a fire rated partition.

Do hollow metal frames need to be grouted?

The Hollow Metal Manufacturers Association (HMMA) has a publication on grouting hollow metal frames, which suggests that grout may improve frame durability, sound deadening, and anchorage strength, and recommends grouted frames for detention applications. ... Grouting is not recommended for frames in drywall.

What makes a 20 minute fire rated door?

20 minute without hose stream: These are openings that have successfully passed a 20 minute fire test but were not subjected to the hose stream test. These doors bare a label that specifically states 'Twenty-Minute-Rating tested Without Hose Stream'.

How do you fit intumescent strips and smoke seals?

1. Clean frame with damp cloth, removing dirt and grease.
2. Measure the height of the fire door, noting the position of the lock – and cut the smoke seal strip to fit accordingly.
3. Before using any adhesive, open and close the door with the seal in place.

What size intumescent strip do I need?

Intumescent strip is manufactured in various widths and usually comes with a self-adhesive backing, which readily attaches to common frame and door materials. Typically, you would use 10mm or 15mm wide strips for a 30 minute fire door and 20mm wide strip for a 60 minute fire door.

Should fire doors have a gap at the bottom?

Gaps between fire doors and the door frame should never be more than 4mm or less than 2mm. It's recommended to aim for a 3mm gap to ensure adequate room for the intumescent strips to activate in the event of a fire, and for the smoke seal strips (if installed) to not get damaged by the opening and closing of the door.

Is an intumescent strip a smoke seal?

Intumescent strips are similar to smoke seals, but they're designed to protect from fire itself as opposed to smoke. This is generally why both are necessary for full compliance with regulations. Intumescent strips have a different composition, as they're designed to expand in response to high temperatures.

How long do intumescent strips last?

Safelincs sells rebated or surface-mounted intumescent fire door seals which resist fire for 30 or 60 minutes (suitable for FD30 or FD60 fire doors).

What are intumescent strips made of?

A passive fire protection example of an intumescent with strong expansion pressure. This intumescent is called Palusol. It is based on waterproofed sodium silicate. Another high-expansion intumescent popular for use in plastic pipe firestop devices is graphite.
