Whats the difference between dipole and monopole?

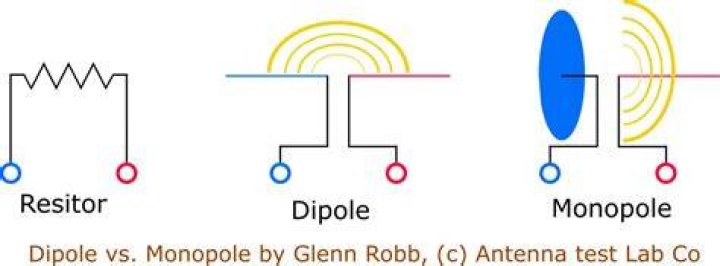

William Taylor In essence, the difference between a monopole and dipole antenna, is that a dipole antenna uses an additionally radiator to generate a synthetic ground plane between the symmetric radiator elements, where a Monopole antenna - Wikipedia
Are dipole antennas better?
Horizontal Dipole
Another advantage of dipole antennas is they are very efficient when used at their resonant frequency. ... Height also matters—the higher the dipole, the better. Ideally, a dipole should be at a half wavelength above ground for best performance and making DX contacts. At 40 meters, that would be 33 feet.
What are monopole antenna used for?
The monopole is often used as a resonant antenna; the rod functions as an open resonator for radio waves, oscillating with standing waves of voltage and current along its length. Therefore the length of the antenna is determined by the wavelength of the radio waves it is used with.
What is dipole in antenna theory?
The dipole is any one of a class of antennas producing a radiation pattern approximating that of an elementary electric dipole with a radiating structure supporting a line current so energized that the current has only one node at each end.
What are the advantages of dipole antenna?
Dipole antennas offer the advantage of receiving balanced signals. The two-pole design enables the device to receive signals from a variety of frequencies. It also helps the device sort out problems caused by conflicting signals without losing reception quality.
Monopole And Dipole Antennas
39 related questions foundWhich is a non resonant antenna?
Non-resonant Antennas are those for which resonant frequency does not occur. The wave moves in forward direction and hence do not form a standing wave. ... They are also called as Unidirectional travelling wave antennas, as the radiated wave moves in forward direction only, which means that only incident wave is present.
What are folded dipoles?
A folded dipole is an antenna, with two conductors connected on both sides, and folded to form a cylindrical closed shape, to which feed is given at the center. ... Hence, it is called as half wave folded dipole antenna. The directivity of Folded dipole Antenna is bi-directional. The input impedance is higher.
What is monopole and dipole antenna?
Jul 12, 2017. In essence, the difference between a monopole and dipole antenna, is that a dipole antenna uses an additionally radiator to generate a synthetic ground plane between the symmetric radiator elements, where a monopole antenna requires a physical ground plane.
What is Hpbw of a λ 2 dipole?
The directivity of a half-wave dipole antenna is 1.64 (2.15 dB). The HPBW is 78 degrees.
Why the λ 2 dipole is the most popular antenna dipole?
The dipole antenna is cut and bent for effective radiation. The length of the total wire, which is being used as a dipole, equals half of the wavelength (i.e., l = λ/2). This is the most widely used antenna because of its advantages. ...
What is the gain of monopole antenna?
The vertical dipole—or its electromagnetic equivalent, the monopole—could be considered one of the best antennas for LMR applications. It is omnidirectional (in azimuth) and, if it is a half-wavelength long, has a gain of 1.64 (or G = 2.15 dBi) in the horizontal plane.
Is a whip antenna a dipole?
The whip antenna is a monopole antenna, and like a vertical dipole has an omnidirectional radiation pattern, radiating equal radio power in all azimuthal directions (perpendicular to the antenna's axis), with the radiated power falling off with elevation angle to zero on the antenna's axis.
Can you have a full wave dipole?
If the length of the dipole, i.e. the total wire, equals the full wavelength λ, then it is called as full wave dipole. If a full wavelength dipole is used either for transmission or for reception, let us see how the radiation will be.
Should a dipole antenna be vertical or horizontal?
You need to have a vertically polarized antenna for it to be effective. If you have repeaters (or other simplex) stations you'd like to work in all directions, then a good vertical omnidirectional antenna is the best bet.
Is a half-wave antenna better than a quarter wave?
A half-wave antenna is a good choice when your entire device is much smaller than a quarter-wavelength, or when you are building an antenna that is physically separated from the transmitter.
What kind of polarization is provided by helical antenna?
Helical antenna is a broadband VHF and UHF antenna used to provide circular polarization. It consists of a thick copper wire wound in the form of a screw thread forming a helix. In general , helix is used with a ground plane.
What is the radiation resistance of λ 2 antenna?
λ/2 Dipole or Half-wave dipole: Length of dipole = λ/2. Directivity = 1.64 or 2.15 dBi. Impedance for half-wave dipole antenna in free space is 73 Ω
How do you find Hpbw?
The Half Power Beamwidth (HPBW) is the angular separation in which the magnitude of the radiation pattern decrease by 50% (or -3 dB) from the peak of the main beam. From Figure 2, the pattern decreases to -3 dB at 77.7 and 102.3 degrees. Hence the HPBW is 102.3-77.7 = 24.6 degrees.
What is monopole tower?
Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. ... Tapered-pole is a kind of monopole having a varied cross-section diameter size that when the used diameter is more up will be smaller.
What dBi means?
dBi refers to decibels measured against an isotropic reference antenna. ... Therefore dBi is a term that is used when measuring the relative antenna gain of applications. dBis tend to vary with the most common indoor WiFi router antennas designed to work at 4-9 dBi, while outdoor antennas range between 15 and 24 dBi.
What is the difference between monopole and microstrip antenna?
Monopole antennas generally used at low frequency while microstrip antennas used at microwave frequency. In the micro strip mono-pole antenna, patch shape and size similar to a pole, rather then in case Microstrip patch antenna in general patch are rectangular, circular and different shapes.
Are folded dipoles directional?
A folded dipole (or any dipole) radiates broadside to the length of the dipole. At VHF/UHF frequencies the dipole is mounted vertically and can have several dipoles mounted above/below each other on the same mast connected by a phasing harness. Each dipoles radiation pattern is omni-directional.
Does a folded dipole need a balun?
No balun required - unbalanced coax all the way to the feedpoint, with guaranteed symmetrical excitation. Easier to waterproof the feed, as the connections are inside, and you can heatshrink over the feedpoint. Only one side of the dipole touches anything, the other just hangs open.
Why is dipole folded?
One of the main reasons for using a folded dipole antenna is the increase in feed impedance that it provides. If the conductors in the main dipole and the second or "fold" conductor are the same diameter, then it is found that there is a fourfold increase (i.e. two squared) in the feed impedance.
