It is made from polyethylene (PE), plastic sandwiched between two very thin sheets of aluminium.

What was the Grenfell Tower cladding made of?

Aluminium composite material (ACM) panels – a layer of highly combustible plastic called polyethylene held between two thin aluminium skins. It formed the shiny outer layer of the cladding system. Polyethylene is a ferociously combustible plastic which has been compared to solid petrol by experts.

What is cladding made of?

Cladding panels can be made from a wide variety of materials such as wood, metal, brick or vinyl, and are often coupled with composite materials that can include aluminium wood blends of cement and recycled polystyrene wheat rice straw fibres.

Why is ACM cladding dangerous?

This states that 'The external envelope of a building should not provide a medium for fire spread if it is likely to be a risk to health and safety. The use of combustible materials in the cladding system and extensive cavities may present such a risk in tall buildings.

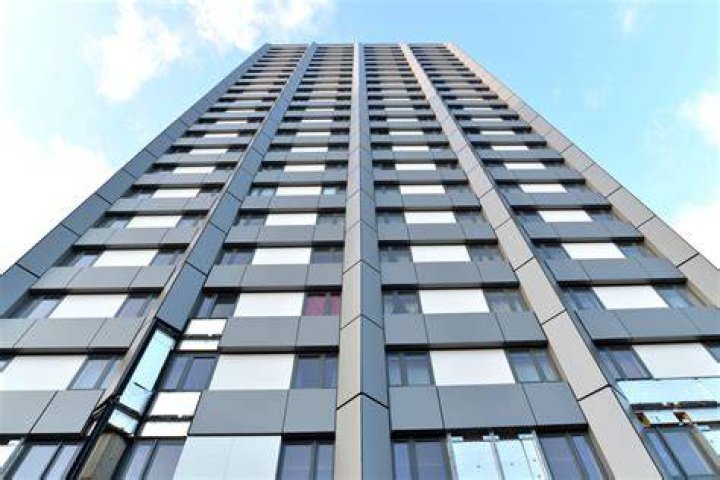

What is Grenfell style cladding?

Colourful green and blue panels designed to improve insulation and soften the look of the brutalist concrete block. They were fitted to Grenfell Tower in Kensington, West London, as part of a £9million refurb completed in May 2017.

What Happened With The Cladding At Grenfell Tower?

Why did Grenfell cladding burn?

The fire was started by a malfunctioning fridge-freezer on the fourth floor. It spread rapidly up the building's exterior, bringing fire and smoke to all the residential floors. This was due to the building's cladding, the external insulation and the air gap between which enabled the stack effect.

What was wrong with Grenfell cladding?

Panels made from plastic and aluminium were installed on the sides of Grenfell Tower to make it warmer and drier. But the cladding has been blamed for helping flames to spread when fire broke out in June 2017, resulting in 72 deaths.

Is ACM cladding illegal?

On 21st December 2018, the government introduced a ban on combustible cladding materials, including Aluminium Composite Material (ACM), in response to the Grenfell tragedy.

What cladding is banned?

The ban also means that all foam-based insulation, plastic fibre-based composites and timber-based walling and cladding materials will not be available for use on buildings less than 18 metres.

Did Grenfell cladding meet building regs?

The public inquiry into the Grenfell Tower fire has found that external cladding did not meet Building Regulations. A report written by Sir Martin Moore Bick concluded that the cladding did not comply with the Building Regulation aimed at preventing the external spread of fire, but instead 'actively promoted it'.

What is the metal cladding?

Metal cladding is a method of protecting one metal (or composite) by forming a layer of a second metal to its surface by using techniques such as diffusion, deformation and lasers. ... Metal cladding is also used on the outer surfaces of structures as well as buildings for corrosion and abrasion protection.

Is cladding a structural defect?

Building Defect Warranties

As cladding is not considered a 'structural' part of the building, any claim to a builder for defective or non-compliance is considered a 'general' defect.

Is cladding load bearing?

Cladding is a non-loadbearing skin or layer attached to the exterior of the walls. Its main role is to protect a building from water and the effects of weather; secondary roles can include sound, and thermal insulation and fire resistance.

Who made the insulation for Grenfell?

Grenfell Tower insulation manufacturer Celotex was “completely unethical” in its bid to present a product as suitable for use on high-rise buildings and tap rival firm Kingspan's multimillion-pound market, the probe into 2017's disaster has heard.

What type of cladding is flammable?

Aluminium composite panels (ACPs), as used at Grenfell, containing a polyethylene core can be highly flammable. High-pressure laminate (HPL) cladding, which is also widely used on high-rise buildings, is at least as flammable.

Is PIR insulation banned?

Insulation and CLT

A ban on all materials except those with an A1 or A2 rating would prevent the use of insulation products such as EPS [polystyrene], phenolic and PIR (polyisocyanurate) in building façades.

How many floors is 18m?

Typically, an 18 meter building will have 5–6 stories. However, the height of a story varies depending on how each floor is constructed and the height of the ceilings. Commercial buildings will generally have taller stories than residential buildings.

How many storeys is 11m building?

A key part of these changes is the trigger height to fit sprinklers in tall buildings has been reduced to 11m (typically four floors), from 30m (typically 10 floors).

Is all cladding flammable?

Cladding is the process of adding a new layer of material to the outside of a building. It may be installed to increase insulation or weather protection, or to improve the building's appearance. But some cladding has been found to be combustible, prompting a building safety crisis affecting thousands.

What does ACM cladding look like?

Aluminium Composite Material (ACM) is a type of flat panel that consists of two thin aluminium sheets bonded to a non-aluminium core, typically between 3 and 7mm thick. ... It can be differentiated from solid aluminium sheet by looking at a cut edge whereby the lamination is visible.

What is category 2cm?

ACM with a fire-retardant filler (category 2) may be used safely with non-combustible insulation and appropriately fitted cavity barriers. The safety of this category is highly dependent on the insulation used, and how it is fitted.

How much does an EWS1 form cost?

To start the EWS1 (External Wall Survey) process, an expert needs to be appointed at a cost of approximately £7,000 - £8,000.

Who was at fault for Grenfell Tower?

Arconic, formerly known as Alcoa, supplied the Reynobond 55 cladding panels with a polyethylene (PE) core that were used in the refurbishment of Grenfell Tower, and were later found to have fuelled the blaze which claimed 72 lives.

Has Grenfell Tower been demolished?

The UK government has decided to demolish Grenfell Tower four years after a fatal fire tore through the block of flats in west London, following a report that states the building should be "deconstructed at the earliest possible opportunity". ... In total 72 people lost their lives in the fire.

Did Celotex use Grenfell Tower?

In 2014 Celotex supplied PIR insulation known as RS5000, through distributors, which was one of the components used in the Grenfell Tower rainscreen cladding system.
