A subtended central angle is the angle formed at the center of the circle and the legs of the angle are the radii of the circle intersecting the circle at two different points.

What makes a central angle?

A central angle is an angle with its vertex at the center of a circle, with its sides containing two radii of the circle. In the figure above, ∠PZQ,∠QZR , and ∠RZP are central angles. Sum of Central Angles: The sum of the measures of the central angles of a circle with no points in common is 360° .

How do you find the central angle?

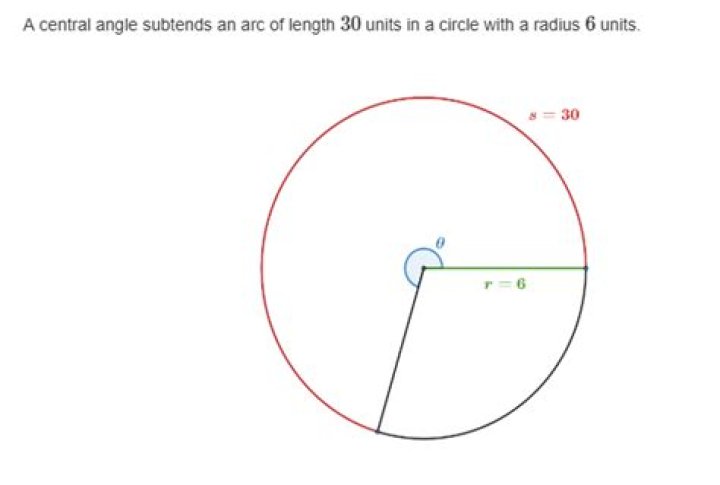

You can also use the radius of the circle and the arc length to find the central angle. Call the measure of the central angle θ. Then: θ = s ÷ r, where s is the arc length and r is the radius.

What is the rule for a central angle?

The Central Angle Theorem states that the central angle subtended by two points on a circle is always going to be twice the inscribed angle subtended by those points.

What is Centre angle theorem?

Theorem: Central Angle Theorem

The Central Angle Theorem states that the central angle from two chosen points A and B on the circle is always twice the inscribed angle from those two points. The inscribed angle can be defined by any point along the outer arc AB and the two points A and B.

Length of an arc that subtends a central angle | Circles | Geometry | Khan Academy

What is the central angle of the sector?

The central angle is the angle subtended by an arc of a sector at the center of a circle. The central angle can be given in degrees or radians.

What is an angle subtended by an arc?

In geometry, an angle is subtended by an arc, line segment or any other section of a curve when its two rays pass through the endpoints of that arc, line segment or curve section.

What is the angle subtended at the centre of a circle?

The angle subtended at the centre of the circle is 90° .

What does Subtend mean in circle geometry?

To take up the side opposite an angle or arc.

What is the central angle of an arc?

Central angles are subtended by an arc between those two points, and the arc length is the central angle of a circle of radius one (measured in radians). The central angle is also known as the arc's angular distance. The size of a central angle Θ is 0° < Θ < 360° or 0 < Θ < 2π (radians).

What is the central angle of the London Eye?

The measure of the central angle of The London Eye is 11.25 degrees.

How do you find the central angle in data interpretation?

1. In any sector, there are 3 parts to be considered:
2. The arc length is a fraction of the circumference. The sector area is a fraction of the whole area. The sector angle is a fraction of 360°
3. If the sector is 20% of the pie chart, then each of these parts is 20% of the whole.
4. 20%×360°
5. 20100×360=72°

What is the central angle of a regular pentagon?

So, the measure of the central angle of a regular pentagon is equal to 72 degrees. A pentagon has five sides. A regular pentagon has no right angles ( It has interior angles each equal to 108 degrees).

What is the angle subtended at the center of a circle of radius 6cm by arc of length 6π cm?

Answer: The angle subtended at the centre of the circle is 90° .

What is the angle subtended at the centre of a circle of radius 5 Centimetre by an arc length 45 cm?

144° is the answer .

What is the angle subtended at the centre of a circle of radius 5cm by an arc length 4π cm?

Hence, the angle subtended by an Arc is 60°.

What is the angle subtended by a semicircle at the centre of a circle?

The angle subtended on a semicircle is a right angle.

What does the word subtends mean?

1a : to be opposite to and extend from one side to the other of a hypotenuse subtends a right angle. b : to fix the angular extent of with respect to a fixed point or object taken as the vertex a central angle subtended by an arc the angle subtended at the eye by an object of given width and a fixed distance away.

Why are angles subtended by the same arc equal?

When two angles are subtended by the same arc, the angle at the centre of a circle is twice the angle at the circumference. So angle AOB = 2 × angle ACB. Angles subtended by the same arc at the circumference are equal. This means that angles in the same segment are equal.

What is a sector angle?

A sector is a region bounded by two radii of a circle and the intercepted arc of the circle. The angle formed by the two radii is called a central angle. A sector with a central angle less than 180° is called a minor sector. A sector with a central angle greater than 180° is called a major sector.

How are arcs and central angles related?

The measure of an arc refers to the arc length divided by the radius of the circle. The arc measure equals the corresponding central angle measure, in radians. That's why radians are natural: a central angle of one radian will span an arc exactly one radius long.
