Saturation. Shows vapor (VSAT) and liquid (LSAT) saturation temperatures calculated from the pressures measured and the refrigerant selected.

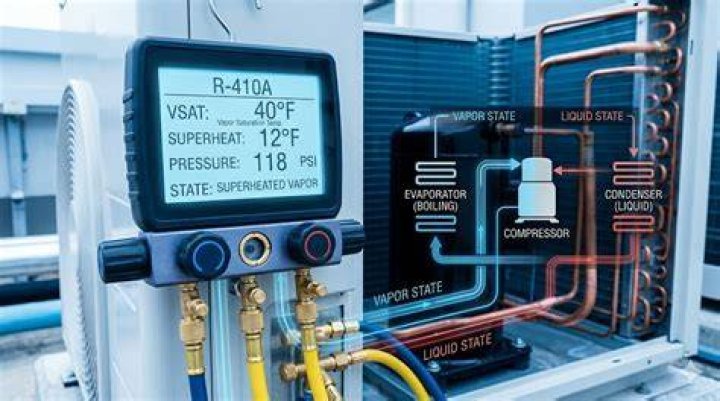

What is LSAT and VSAT?

VSAT: Vapor Saturation Temperature (from P-T chart) LSAT: Liquid Saturation Temperature (from P-T chart)

What is saturation temperature HVAC?

the saturation temperature of the refrigerant (the temperature at which the refrigerant changes from a liquid state to vapor. This is the same as its boiling point. For water at sea level, the saturation temperature is 212F. The saturation temperature of a liquid increases as pressure increases.

What is HVAC in networking?

Heating, ventilation, and air conditioning (HVAC) systems can be used as a means to bridge air-gapped networks with the outside world, allowing remote attackers to send commands to malware placed inside a target's isolated network.

What does saturated suction temperature mean?

S.S.T - Saturated Suction Temperature – Equivalent vapourisation temperature of the refrigerant in the evaporator (low side gauge at compressor suction) V.E.T – Vapour entering temperature – The temperature of the superheated refrigerant gas entering the compressor at the suction pipe (touch probe)

What is VSAT?

What is superheat in HVAC?

Superheat occurs when that vapor is heated above its boiling point. ... Superheat is critical in HVAC because it ensures the liquid refrigerant is boiled off before it leaves the evaporator and heads to the compressor. Even small amounts of liquid can cause detrimental damage to the compressor in an HVAC system.

What is HVAC used for?

HVAC refers to the different systems used for moving air between indoor and outdoor areas, along with heating and cooling both residential and commercial buildings. They are the systems that keep you warm and cozy in the winter and feeling cool and fresh in the summer.

What is HVAC system in data center?

HVAC stands for heating, ventilation, and air conditioning. ... The selection of an HVAC contractor is an important step in planning a data center. Almost all physical hardware devices come with environmental requirements that include acceptable temperature and humidity ranges.

How do I know if my refrigerant is saturated?

So, if you are able to determine the pressure at any of these points (evaporator, condenser, or receiver), you can easily determine the “saturation” temperature by finding the measured pressure on the P-T card and reading the corresponding temperature.

What is evaporator temperature?

Evaporation temperature is the temperature at which the refrigerant evaporates and boils in the evaporator, which corresponds to the evaporation pressure. Evaporation temperatures are generally 2-3 °C lower than the required water temperature.

What is evaporator temperature difference?

An evaporator's temperature difference (TD) is the difference between the saturation temperature of the refrigerant inside the coil and its entering air temperature. The greater the temperature difference, the more moisture will be removed from the air and the lower maintained rh in the case.

What is difference between AC and HVAC?

To keep things simple: the system designed to cool the air is the AC unit, and the system designed to heat the air and push moisture out through the vents, is the HVAC unit.

Is water heater part of HVAC?

Water heaters are actually part of your plumbing system, not your HVAC system, because their purpose begins and ends with the temperature of the water supplying your faucets, showers, dishwasher, and washing machine.

What is HVAC piping?

HVAC piping delivers hot water, cooled water, refrigerant, condensate, steam, and gas to and from your HVAC components. Its effectiveness is largely influenced by the materials used to make it.

Does HVAC use gas or electricity?

Air conditioners use electricity. Most home heating systems use gas or fuel oil; other systems use electricity. The heat pump -- an electrically powered climate control unit -- both heats and cools air.

How much does HVAC cost?

HVAC installation costs $6,820 to $12,350 on average which includes new ductwork, a new central air conditioner, and a new gas furnace. Replacing an HVAC system without ductwork costs between $4,820 and $9,350 depending on the size of your home, and the brand and grade of equipment chosen.

Is HVAC important in everyday life?

Heating, Ventilation and Air Conditioning (HVAC) systems function to maintain the comfort and safety of building occupants. Heating and air conditioning components assist us by controlling indoor climate and proper airflow, ensuring that we neither freeze nor sweat like mad.

What is normal AC temperature?

The average air conditioning temperature depends on a variety of factors, including geographic location, comfort levels, season, and cost of energy. Anywhere between 72° to 78°F is typically standard.

What temperature should the AC be?

The Ministry of Power (Bureau of Energy Efficiency) has said that all room air conditioners (AC) will have to ensure a default temperature setting of temperature in the appliances at 24 degree celsius from January 1, 2020.

What should R290 pressures be?

Equalising pressure (psig): 58/58 for R600a and 128/128 for R290 for low back pressure. Peak pressure (discharge) (psig): 145 for R600a and 360 for R290 for low back pressure.

What should Subcool be?

Subcooling on systems that use a thermostatic expansion valve (TXV) should be approximately 10F to 18F. Higher subcooling indicates excess refrigerant backing up in the condenser.

What does low Subcool mean?

Low Subcooling is an indication that not enough refrigerant is contained or “packed” in the condenser. This can be due to undercharge, poor compression, or a metering device oversized or failing open (overfeeding).

Do you add refrigerant to raise superheat?

Add refrigerant to lower the suction superheat. Recover refrigerant to increase the suction superheat. Note that you should never add refrigerant if the superheat is already 5F or less, even if the charging chart shows 0F. You don't want to overcharge the system if your thermometer or gages are not perfectly accurate.
