A vibrating shuttle is a bobbin driver design used in home lockstitch sewing machines during the second half of the 19th century and the first half of the 20th century. It supplanted earlier transverse shuttle designs, but was itself supplanted by rotating shuttle designs.

What are the parts of a sewing machine called?

• Bobbin and Bobbin Case (1) ...
• Slide Plate or Bobbin Cover (2) ...
• Presser Foot (3) ...
• Needle and Needle Clamp (4) ...
• Throat Plate (5) ...
• Feed Dogs (6) ...
• Tension Regulator (7) ...
• Take-Up Lever (8)

What part of sewing machine holds the fabric while sewing?

Presser foot- holds fabric in place while you sew. Presser foot lever-lifts and lowers the presser foot. Reverse control lever -allows the machine to stitch backward.

What pulls the fabric forward while sewing?

Needle: A needle pushes the thread through the fabric to form a stitch. Feed dog: The “teeth” directly under the presser foot that pull the fabric forward while sewing.

Where does the shuttle hook go?

Rotary Hook Machines

In this system, the shuttle hook catches the thread when the needle is going back up through the fabric and the hook then carries the thread around the bobbin cage to form the stitch, going all the way around the bobbin.

How Does a Shuttle Hook Work. Vertical Oscillating Shuttle Hook

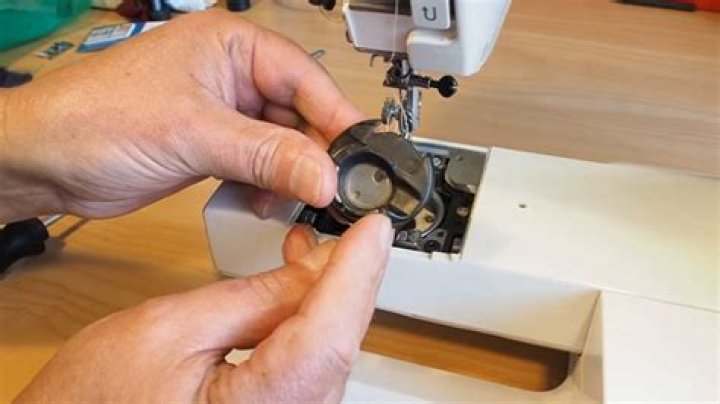

How do you remove a shuttle from a sewing machine?

Grasp both sides of the needle plate cover, and then slide it toward you. The needle plate cover is removed. Grasp the bobbin case, and then pull it out. Use the cleaning brush or a vacuum cleaner to remove any lint and dust from the shuttle race and its surrounding area.

How do I know if my sewing machine has a timing issue?

If your hook tip is passing through or below the needle eye, then the timing of the sewing machine is off. On the other hand, if the hook tip is passing above the needle eye, but extends past the needle more than a couple of millimeters when the needle eye meets the radius of the hook, then the timing is also off.

What are the upper and in the arm part of sewing machine?

Parts of sewing machine and their functions: There are two major parts of the sewing machine. One is upper part and other is lower parts. The upper part contains of Head, Arm and Bed. The lower part contains of Band Wheel, Band Wheel Crank, Pitman Rod, Belt Guide, Belt Shifter, Dress Guard, Treadle, Legs.

How does a transverse shuttle sewing machine work?

The shuttle moves from side to side in a straight line behind the needle. ... The needle is threaded from front to back, whereas on a VS machine it is threaded from left to right. Different, but the same principle - in both cases you take the thread through the needle towards the shuttle.

What holds the spool of thread?

Spool Holder - The spindle that holds the top spool of thread.
