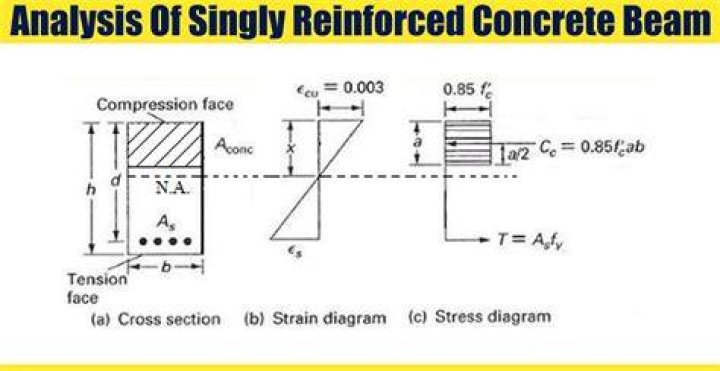

The beam that is longitudinally reinforced only in tension zone, it is known as singly reinforced beam. In Such beams, the ultimate bending moment and the tension due to bending are carried by the reinforcement, while the compression is carried by the concrete.

What is meant by singly and doubly reinforced beam?

A Singly reinforced beam holds a steel bar in the tension zone, but in doubly reinforced beams, steel bars are given in both zones, tension, and compression. ... While in the doubly reinforced beam, compression steel resists compressive stresses and constitutes the addition moment of resistance.

What is the difference between singly and doubly reinforced beam?

A Singly reinforced beam holds a steel bar in the tension zone, but in doubly reinforced beams, steel bars are given in both zones, tension, and compression. While in the doubly reinforced beam, compression steel resists compressive stresses and constitutes the addition moment of resistance.

What is doubly reinforced beam explain?

Such reinforced concrete beams having steel reinforcement both on tensile and compressive faces are known as doubly reinforced beams. Doubly reinforced beams, therefore, have moment of resistance more than the singly reinforced beams of the same depth for particular grades of steel and concrete.

What is reinforced beam?

A reinforced beam is typically a concrete beam that is reinforced by steel and supports large weight loads on a vertical scale. These are generally used in large buildings for longitudinal support.

Singly and Doubly Reinforcement Beam | Difference between Singly and Doubly Beam |

When was reinforced concrete first used?

The first home built using reinforced concrete was a servant's cottage constructed in England by William B. Wilkinson in 1854. In 1875, American mechanical engineer William Ward completed the first reinforced concrete home in the U.S. It still stands in Port Chester, New York.

What is RCC & PCC?

Plain cement concrete (PCC) is simply concrete by definition. ... Reinforced cement concrete (RCC) is PCC + reinforcement. The reinforcement is generally steel bars bent and laid into the desired shape and orientation. The reinforcement can be both tensile or compressive reinforcement depending upon the situation.

What is oneway slab?

The one-way slab is a slab, which is supported by parallel walls or beams, and whose length to breadth ratio is equal to or greater than two and it bends in only one direction (spanning direction) while it is transferring the loads to the two supporting walls or beams, because of its geometry.

What is modular ratio?

Definition. Modular ratio ( ) is the ratio of the elastic modulus of a particular material in a cross-section to the elastic modulus of the “base” or the reference material.

Why doubly reinforced beam is used?

Doubly reinforced beam is provided to increase the moment of resistance of a beam having limited dimensions. Minimum compression reinforcement is provided to hold the Shear Reinforcement (stirrups) in position and for increasing the ductility of beam.

What is the difference between singly and doubly linked list?

Singly linked list allows traversal elements only in one way. Doubly linked list allows element two way traversal. On other hand doubly linked list can be used to implement stacks as well as heaps and binary trees.

What are the advantages of doubly reinforced beams over singly reinforced beams?

Advantages of doubly RC beam

Compression steel along with the tensile steel increase the ductility of the section hence doubly RC section is always used in earthquake prone area Compression reinforcement is also help full significantly in reducing the long term deflection of beams.

What is tension and compression member in reinforcement?

Tension members are held straight by means of tensile loads, while in compression members, the compressive loads tend to bend the member out of the plane of loading. From: Onshore Structural Design Calculations, 2017.

What does doubly reinforced mean?

Doubly reinforced beam is defined as the beam in which the reinforcement is provided by the steel in both tension and compression zone of the beam. ... The moment of resistance can be increased by providing the reinforcement in both tension and compression zone which is known as doubly reinforced beam.

What is flange and web in T section?

The portion of the slab which acts integrally with the beam to resist loads is called as Flange of the T-beam or L-beam. ... The portion of the beam below the flange is called as Web or Rib of the beam. The intermediate beams supporting the slab are called as T-beams and the end beams are called as L-beams.

What is difference between LSM and WSM?

The cardinal difference between Working state method (WSM) and Limit State method (LSM) is: WSM is an elastic design method whereas LSM is a plastic design method. Hence the “moment-rotation” capacity of beam, for example, is utilized making the design more economical.

What is section modulus?

Section modulus is the direct measure of the strength of the steel. Bending a steel section that has a larger section modulus than another will be stronger and harder to bend. Section modulus is a geometric property for a given cross-section used in the design of flexural members.

What do you mean by M20?

M20- M stands for Design Mix And 20 stands compressive strength of concrete after 28 days curing. mix ratio 1:1.5:2 M25- M stands for Design Mix And 25 stands compressive strength of concrete after 28 days curing Mix Rate 1:1:2.

What is LX and LY in slab?

For any slab, if Ly = Lx, the slab has a tendency to bend in both directions. With an increase of Ly, the tendency of bending along Ly is reduced and that on Lx is increased. When Ly/Lx ≥ 2, the slab bends only in X directions. When Ly/Lx ≥ 2, the slab is called a one way slab.

What is 2way slab reinforcement?

Two way slab is a slab supported by beams on all the four sides and the loads are carried by the supports along with both directions, it is known as two way slab. In two way slabs, the load will be carried in both the directions. ... So, the main reinforcement is provided in both directions for two way slabs.

Where is lapping provided in beam?

The lapping zone for the top bars should be at the mid- L1/3 or L2/3 part of the beams. Reason: The top bars fall under the compression zone of the beam. For the compression zone, the mid-1/3 span of the beam is said to be a safe zone for lapping.

What is meant by admixture?

An admixture is defined as “a material other than water, aggregates, cementitious materials, and fiber reinforcement, used as an ingredient of a cementitious mixture to modify its freshly mixed, setting, or hardened properties and that is added to the batch before or during its mixing” (ACI Committee 212, 2010).

What is plinth level?

Plinth Level:-

The level at which Substructure ends and superstructure starts is called Plinth level. It is the part of the superstructure between natural ground level and Finished floor level. the plinth is provided to restrict the seepage of stormwater and rainwater into the building.

What is the full form of OPC cement?

Ordinary Portland Cement (OPC) the most widely and commonly used cement in the world. This type of cement is manufactured as a powder by mixing limestone and other raw materials which consist of argillaceous, calcareous and gypsum. It is preferred in places where there is a need for fast construction and setting time.
