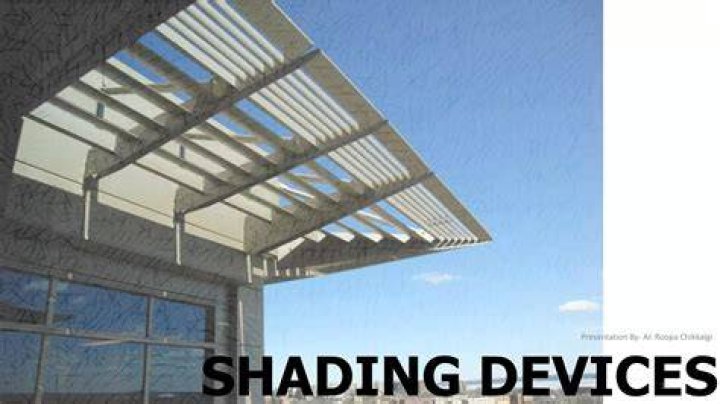

What is shading devices?
Jessica Burns Shading devices on the external side of the window include shutters, awnings, canopies, blinds, and projecting horizontal and vertical fins. Correctly designed, these sun controls are the most effective of all for reducing solar radiation since the absorbed heat is dissipated externally.
What is interior shading device?
Internal shading is almost always adjustable or retractable, and is typically in the form of roller or venetian blinds or curtains. If properly adjusted, venetian blinds admit diffuse light while excluding direct sunlight, and can also act as a daylighting device by redirecting light onto the ceiling. ...
What is external shading devices?
External shading devices, such as eaves, awnings, and verandahs, play a critical role in reducing unwanted solar heat gain, especially in cooling-dominant climates and during summer in temperate climates. Shading devices work firstly by restricting unwanted direct solar radiation through windows.
What is shading in passive design?
Shading simply means blocking the direct rays of the sun. For your home, shading can be provided by fixed or adjustable building elements such as eaves, awnings, fences, external blinds and trellises, or by natural elements such as trees and shrubs. Your home may also be shaded by nearby buildings and other features.
How is shading device calculated?
To calculate the depth (d) of the horizontal shading device, multiply the obtained ratio (d/h) by the needed shading height (h). To calculate the protrusion (p) of the horizontal shading device, multiply the obtained ratio (p/h) by the needed shading height (h) for the selected hours (cut-off times).
8 IMPORTANCE OF SHADING DEVICES
21 related questions foundWhat is drawing and shading?
Shading is the process of adding value to create the illusion of form, space, and most importantly - light in a drawing. When executed correctly, shading can make a drawing appear three dimensional and create a convincing image. When rendering a drawing that communicates volume, shading is absolutely critical.
How do you make solar shading?
Designing Shading Systems
Use fixed overhangs on south-facing glass to control direct beam solar radiation. Indirect (diffuse) radiation should be controlled by other measures, such as low-e glazing. To the greatest extent possible, limit the amount of east and west glass since it is harder to shade than south glass.
What is solar shading?
Solar shading is a method by which solar radiation in the form of heat and light can be mitigated in a building. While natural heat and light are essential in most buildings and modern architecture uses it more and more there are occasions when the levels are too high.
What are different types of shading devices?
According to [10], there are two classifications of shading devices namely fixed shading elements and adjustable/rectracable shading elements. Fixed shading devices categories are external form position, overhangs, vertical fins, horizontal and vertical combinations (egg-crate type), and balcony.
What is shade architecture?
Whether it's natural or artificial, light is one of the most important elements to consider when designing a space. ... Shade is the darkness of an object not in direct light, while shadows are the silhouette of an object's shape on another surface.
Are you shading meaning?
Shade is a subtle, sneering expression of contempt for or disgust with someone—sometimes verbal, and sometimes not.
What is HSA and VSA?
The VSA in a given plane is obtained from the projection of the line to the centre of the sun onto the vertical plane containing the normal to that plane. The HSA is simply the angle between the wall azimuth and the solar azimuth.
What are solar control Sunshading devices?
Introduction Sun Shading Devices are any mechanical equipment or textiles that are used either internally or externally or in between the internal and the external building space. ... Need of Sun Shading Devices To reduce the heat gains during summer, reduce the cooling loads and therefore minimize energy costs.
How is internal shading done?
Internal shading can be provided using curtains and blinds. Internal shading is less effective at reducing solar heat gain than external shading because the solar radiation has already come through the glass.
How can we reduce solar radiation in buildings?
Solar heat gain can be reduced by:- Horizontal shading.
- Limiting the area of openings.
- Orientating openings away from the sun path.
- Reducing solar transmittance through openings, for example by reflective glazing. ...
- Purging heat gains by the introduction of ventilation.
What is sun Control?
Solar control coatings
They strongly reduce heat gain in summer by blocking a large fraction of the solar infrared energy, thus reducing the cooling loads. ... In commercial buildings, it is common to apply low-e coatings to both tinted and clear glass.
What is orientation building?
”Orientation of building is defined as a method of fixing in direction of the plan of the such a way that if drained maximum benefit from the elements of nature such as sun, wind and rain.”
How do you shade a west facing window?
For windows that are exposed to the sun such as west facing windows we recommend window blinds that are good insulators. The better they insulate the less heat gain you will get when the sun beats in saving you money. Top insulating blinds include honeycomb cell shades and shutters.
What is the purpose of sun shading?
Control the Sun with Sunshades. The primary purpose of a sunshade is to control the amount of direct sunlight through your building's windows. The benefits can be found in so many articles that we will not go into them here.
Why is solar shading important?
Solar shading is important to mitigate the impact of a buildings' energy use whilst providing thermal and visual comfort. ... This is where solar shading is important to mitigate the impact of a buildings' energy use whilst providing thermal and visual comfort.
What does shading your windows do?
The most effective way to reduce summer heat gain through windows and glass doors is to block the sunlight before it hits the glass, with some type of exterior shading. Exterior shading can block up to 95% of the sun's heat. ... The lower the number, the more heat will be blocked.
What is a shading mask?
A shading mask is simply a mechanism for recording which parts of the sky are visible from a particular point in the model and which are not. For any given set of obstructions, this information can be overlaid on a sun-path diagram to show when in the year the point is in shade or not.
What happens if one solar panel is shaded?
If only one cell (out of the usual 60 cells) in one of the panels in your solar array is shaded, the overall output of your system can drop by 30-40%. Much like a clogged pipe or kink in your hose, if the current flowing through your solar panels is interrupted by a shaded cell, the end output is throttled.
What is the definition of shading in art?
1 : the use of marking made within outlines to suggest three-dimensionality, shadow, or degrees of light and dark in a picture or drawing.
