The spec TDP of Intel CPUs pertains to the power draw at stock frequencies. When the CPUs boost to higher “Turbo Frequencies”, the power draw increases considerably. This power state or profile is called PL2 (Power Level 2) while the stock (marketed) power state is called PL1.

What is TDP PL1 and PL2?

In essence, PL1 is usually defined as a TDP of a processor. That is, if TDP is 80 watts, then PL1 is 80 watts. PL2 - short-term maximum processor power consumption. This value is higher than PL1, and the processor enters this state under load, which allows it to use turbo modes up to the maximum value PL2.

What is PL1 motherboard?

PL1 is the guaranteed long-term TDP associated with the CPU's minimum clock speed. ... It's not uncommon for motherboard vendors to program a tau of 999 seconds and a PL2 of 999 to try and keep a CPU in boost mode for as long as possible.

What is PL2 power limit?

The value of PL2 is the maximum power that can be used in that state—it's set to 250 W for both CPUs. Tau is the duration PL2 can run for—56 seconds on both processors.

Is a higher TDP better?

The higher the TDP, the better the cooling system you need.

Furthermore, even if you can only use it as a rough estimation, a higher TDP translates into higher power consumption.

PL1 & PL2 / I7 10700, WHAT HAPPENS TO MY BENCHMARKS IF I RAISE LIMITS, MAKE B460 closer to Z490

What is my TDP?

TDP stands for Thermal Design Power, in watts, and refers to the power consumption under the maximum theoretical load. Power consumption is less than TDP under lower loads. The TDP is the maximum power that one should be designing the system for.

What does 250w TDP mean?

TDP stands for thermal design power or, depending who you ask, thermal design profile. The TDP number tells you the maximum heat a computer chip, such as a CPU or GPU, can use in watts. It also is often used as a basic indicator of power consumption.

What does PL1 mean Throttlestop?

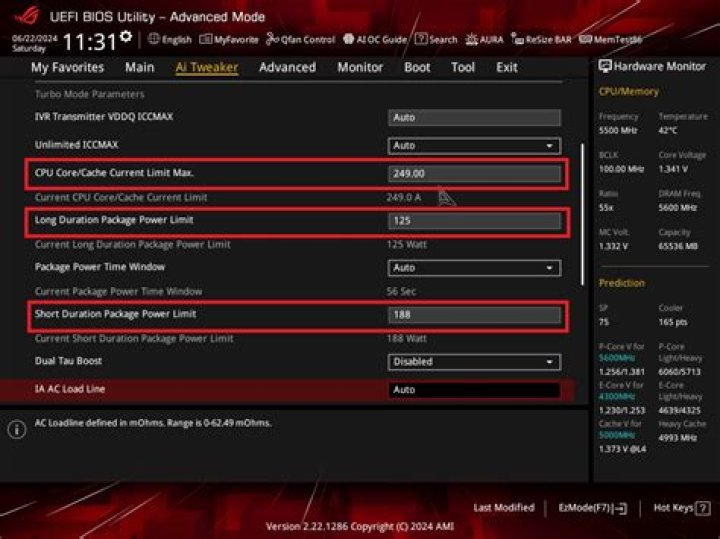

PL1 is the long term power limit and PL2 is the short term power limit. Short term should always be greater than or equal to the long term power limit.

What is Turbo Time limit long?

The turbo time limit determines how long a CPU can run at its (higher) short term power limit before it will be forced to throttle back to its long term power limit. Intel typically recommends that the long term power limit be set to the same value as the rated TDP.

How much power does an i7 use?

Intel i7 Power Consumption

Intel i7 CPU TDP ranges from 35 Watts to 140 Watts for the desktop models in our database.

What is PL1 time?

PL1 is the effective long-term expected steady state power consumption of a processor. ... PL2 is the short-term maximum power draw for a processor. This number is higher than PL1, and the processor goes into this state when a workload is applied, allowing the processor to use its turbo modes up to the maximum PL2 value.

How many watts is a CPU?

Standard CPUs use between 65 and 85 watts, while quad-core processors range from 95 to 140 watts.

What is tau boost?

“Tau” is a timing variable. It dictates how long a processor should stay in PL2 mode before hitting a PL1 mode, or before having to fall back to the “base” frequency.

Is PLL used in CPU?

PLLs can be used to multiply and divide frequencies. CPUs that have PLLs to generate their clocks are highly reconfigurable. The clock speed can be varied relative to the external reference clock over a wide range, and it's the PLL that makes this possible.

What is TDP Intel CPU?

The thermal design power (TDP), sometimes called thermal design point, is the maximum amount of heat generated by a computer chip or component (often a CPU, GPU or system on a chip) that the cooling system in a computer is designed to dissipate under any workload.

What is TDP frequency?

Configurable TDP options mean the computer manufacturer can modify the Base Frequency and TDP of the CPU within the specific values posted on the product specification page Depending on the design of the chassis/cooler, the computer manufacturer may increase or decrease Base Frequency and TDP.

Is Turbo boost automatic?

To simply answer the question, yes Turbo boost is automatically enabled on most Intel motherboards but if you are worrying too much about lifespan and efficiency, you can turn it off in the BIOS settings of your motherboard.

How do you MAX a turbo frequency?

Intel Turbo Boost Technology is enabled by default on supported processors.
...

1. Identify your Intel processor.
2. Go to the ark.intel.com (Product Specification Page).
3. Enter the processor number in the search box, located top right.
4. On the processor page, and under Performance, look for Max Turbo Frequency value.

What are Turbo ratios?

Aspect Ratio (AR) is commonly used to indicate a turbocharger housing size. The Aspect Ratio (AR) is the ratio of the area of the exhaust turbine inlet to the radius from the turbine impeller center. A smaller turbine housing builds pressure and turbine speed quickly. ...

How do I turn off CPU power limit?

1. Open Start.
2. Search for gpedit. msc and select the top result to open the Local Group Policy Editor.
3. Browse the following path: ...
4. Double-click the Turn off Power Throttling policy. ...
5. Select the Enabled option. ...
6. Click the Apply button.
7. Click the OK button.

What is speedshift EPP?

Speed Shift – EPP (Energy Performance Preference) – Starting with Intel's Skylake, this became the new low-level (non-software) method for governing CPU behavior. It replaced the older “SpeedStep” technology, which required software-level governance. ... If you have a Skylake CPU or later, this should be enabled.

What is Prochot?

PROCHOT stands for Processor Hot and is a trigger temperature at which CPU starts to throttle, you can view it by using a programm "ThrottleStop" version 7 or 8, but usually it can only be changed through BIOS. Most laptop BIOS are locked and require a modified BIOS.

What does 95W TDP mean?

a 95W TDP CPU when it used far more power than that under full load. ... TDP, in its most narrow sense, refers to the ability of the CPU cooling solution to dissipate heat. A CPU with a 65W TDP requires a cooler that can handle a 65W TDP processor. A CPU with a 95W TDP requires a 95W cooler, and so on.

What is TDP engineering?

A Technical Data Package (TDP) is a description of an item adequate for supporting an acquisition, production, engineering, and logistics support (e.g. Engineering Data for Provisioning, Training, and Technical Manuals).

What does TDP down mean?

The configurable TDP-down is a processor operating mode in which processor behavior and performance are adjusted by reducing the TDP and processor frequency to specific values. The configurable TDP-down is typically used by the system manufacturer to optimize power consumption and performance characteristics.
