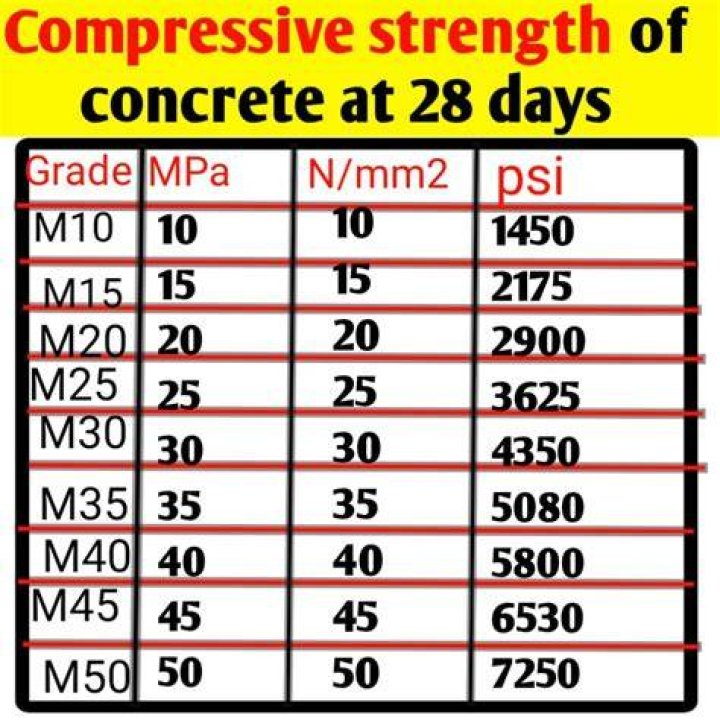

What is mpa in concrete strength?
William Taylor Concrete is measured by its strength capacity. MPa (megapascals) is the metric measurement for psi or pounds per square inch. The BC Building Codes require a minimum MPa for specific concrete projects. Please refer to the table to choose the appropriate MPa when calculating your volume and price.
What is 40 MPa concrete used for?
Concrete 40 MPa is commonly used in commercial and civil construction, for structural beams and columns, where increased durability and load-bearing capacity are required.
What is 25 MPa concrete used for?
20 MPa and 25 MPa
Commonly used for house slabs, driveways, footings and footpaths.
What does 20 MPa mean in concrete?
The MPA of concrete is a term used to describe the megapascal strength of concrete, or its tensile strength. ... The number after your MPA relates to the size of the aggregate within the concrete mix i.e., 20 for 20 millimetre stone or 10 for 10 millimetre stone.
How strong is 40 MPa concrete?
Regular concrete can typically withstand a pressure from about 10 MPa (1450 psi) to 40 MPa (5800 psi), with lighter duty uses such as blinding concrete having a much lower MPa rating than structural concrete.
What`s an "MPa?"
34 related questions foundWhich cement is better 43 grade or 53 grade?
The fineness in cement generates early gain in strength, but along with high heat of hydration. ... OPC 43 grade cement is generally used for non-structural works like plastering flooring etc. Whereas OPC 53 grade cement is used in the projects which require higher strength like concrete bridges, runways RCC works etc.
Is lower MPa stronger?
A megapascal (MPa) is a measure of the compressive strength of concrete. ... The higher the MPa of concrete, the stronger the material will be, and the less likely it is to fail.
What is 35 MPa concrete used for?
Tech-Mix® Pre-Mixed 35 MPa Concrete is a well-balanced superior mix of Portland cement, stone and sand. This mix is ideal for work requiring concrete with a thickness of 5 cm (2”) or more. Clean surface to be repaired must be free of foreign matter.
What does 32 MPa mean in concrete?
Concrete Strength
Concrete is measured by its strength capacity. MPa (megapascals) is the metric measurement for psi or pounds per square inch.
What is 15 MPa concrete used for?
15 Mpa This is a low-strength concrete mix and is suitable for house foundations that are not reinforced, and for boundary walls and freestanding retaining walls.
How hard is concrete after 7 days?
After concrete is placed, the concrete increases in strength very quickly for a period of 3-7 days. Concrete which is moist cured for 7 days is about 50% stronger than uncured concrete.
Is MPa the same as PSI?
1 Megapascal (MPa) is equal to 145.037737797 psi (pound force per square inch).
Are there quality standards for concrete?
ASTM's cement and concrete standards are instrumental in the evaluation and testing of concrete, cement, and aggregates. ... These standards help to identify the various properties of concrete including strength, elasticity, hardness, and workability.
How do you calculate MPa?
If you know the total force exerted to compress a liquid inside a hydraulic cylinder, you can calculate the pressure on the cylinder walls by dividing the force by the area over which it is exerted: P = F/A. When measuring area in millimeters, use the following conversion factor: 1 kN/mm2 = 1,000 MPa.
What is meant by 53 grade cement?
53-grade cement is an ordinary Portland Cement (OPC), which is the most widely used cement in India. 53-grade cement attains 27 MPa (compression strength) in 3 Days. It is also the fastest setting cement among other grades.
What is M10 grade concrete?
M10 concrete ratio is 1: 3: 6 in which one part is cement, 3 part is sand and 6 part is aggregate mix with water to gain compressive strength of 10N/mm2 after pouring in desire shape of 28days curing.
What is MPa concrete for sidewalk?
No special attributes are necessary for sidewalk concrete, but specifications should include the following information: strength (25 to 35 MPa), minimum cement content (333 kg/m3), maximum size of coarse aggregate (19 mm), slump (50 to 100 mm) and air entrainment (5.5 to 8%).
How do you increase MPa in concrete?
The compressive strength of concrete can be increased by:- Including admixtures.
- Adjusting the cement type and quantity.
- Reducing the water/cement ratio.
- Utilizing supplementary cementitious materials (SCMs)
- Altering the aggregates - type and gradations.
What is the strongest type of concrete?
Ultra-High Performance Concrete (UHPC) is a cementitious, concrete material that has a minimum specified compressive strength of 17,000 pounds per square inch (120 MPa) with specified durability, tensile ductility and toughness requirements; fibers are generally included in the mixture to achieve specified requirements ...
Is 32 MPa concrete waterproof?
Some react with the calcium hydroxides in the concrete to form a dense matrix and thus waterproofness, while others line the concrete pores with hydrophobic (water repelling) material. ... A higher grade of concrete (> 32 MPa) will also provide watertightness.
Which is better OPC or PPC?
PPC has an edge on OPC as PPC has slower rate of heat of hydration. Thereby PPC is prone to less cracks & reduced shrinkage), better workability and finishing (as fly ash based cement are spherical in shape and finer in size).
How can we identify 53 grade cement?
Particular IS code number should be printed on the cement bag. i.e. if you have ordered OPC 53 grade cement, then “IS-12269-1987” should be printed on the cement bag; and if you have ordered Portland Pozzolana Cement (PPC), “IS 1489 – 1 -1991″ & “IS 1489 – 2 -1991” should be printed on the cement bags.
Which grade cement is best for pillar?
OPC 53 Grade cement is recommended in all RCC structures like footing, column, beam and slabs, where ever initial and ultimate strength is the major structural requirement.
