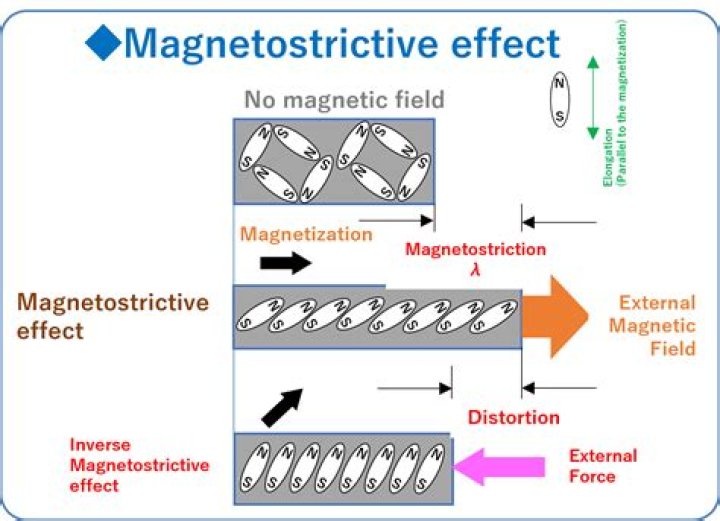

Magnetostriction is a property of magnetic materials that causes them to change their shape or dimensions during the process of magnetization. The variation of materials' magnetization due to the applied magnetic field changes the magnetostrictive strain until reaching its saturation value, λ.

What is the magnetostrictive effect?

Magnetostriction is a property of ferromagnetic materials that causes them to change their shape when subjected to a magnetic field. The effect was first identified in 1842 by James Joule when observing a sample of nickel. This effect can cause losses due to frictional heating in susceptible ferromagnetic cores.

What is magnetostrictive energy?

Magnetostriction is a property of ferromagnetic materials which causes them to expand or contract in response to a magnetic field. This effect allows magnetostrictive materials to convert electromagnetic energy into mechanical energy.

What is meant by Villari effect?

The inverse magnetostrictive effect, magnetoelastic effect or Villari effect is the change of the magnetic susceptibility of a material when subjected to a mechanical stress.

What is magnetostriction effect in engineering physics?

When a magnetic field is applied parallel to the length of a ferromagnetic rod made of material such as iron or nickel, a small elongation or contraction occurs in its length. This is known as magnetostriction.

What is Magnetostriction Effect and How it Works | Applied Physics 1 Lectures in Hindi

What are magnetostrictive materials?

Magnetostrictive materials are a class of smart materials that can convert energy between the magnetic and elastic states. ... Because magnetostriction is an inherent property of ferromagnetic materials, it does not degrade over time as do some poled piezoelectric substances.

What magnetostriction means?

In engineering usage, magnetostriction means the change in length when a demagnetized polycrystalline sample is magnetized. Scientifically, magnetostriction refers to the change in dimensions resulting from the rotation of the saturation magnetization from one crystallographic direction to another in a single crystal.

What is a magnetostrictive transducer?

A magnetostrictive transducer makes use of a type of magnetic material in which an applied oscillating magnetic field squeezes the atoms of the material together, creating a periodic change in the length of the material and thus producing a high-frequency mechanical vibration.

How does a magnetostrictive sensor work?

It works by using a ferromagnetic metal, which aligns itself with magnetic fields at the molecular level. By creating two competing magnetic fields, the magnetostrictive level sensor is able to generate a signal denoting the liquid level. ... This creates the first magnetic field.

Which is effect is converse of magnetostriction effect?

Explanation: When a strain is applied, the change in magnetic field is observed. This is the converse of the magnetostriction phenomenon and is called Villari effect.

What is magnetostrictive effect How will you produce with its help high frequency sound waves?

Magnetostriction effect is the principle of producing ultrasonic waves by using the magnetostriction oscillator. When an alternating magnetic field is applied to a rod of ferromagnetic material such as nickel, iron, cobalt, then the rod is thrown into longitudinal vibrations.

What is magnetostrictive actuators?

The Magnetostrictive Actuators are solid state magnetic actuators. A currentdriven coil surrounding the magnetostrictive rod generates the expansion of the rod. Magnetostrictive Actuators need a magnetic bias to present a linearised response, which can performed either by a DC current in the coil or permanent magnets.

What is magnetic anisotropic effect?

Magnetic anisotropy is the property that confers a preferred direction on the spin of a system which may not be aligned with an external magnetic field, as promoted by the Zeeman effect.

How does magnetostrictive transducer can be used for torque measurement?

A relatively new type of sensor, based on the magnetoelastic effect, is a simple, low-cost technology that uses non-contact sensing to provide accurate torque measurements for rotating or stationary shafts. The key component in a magnetoelastic sensor is a ferromagnetic ring attached to the shaft being measured.

Which material is used for magnetostriction effect?

Magnetostriction Materials

This effect is mostly seen in the magnetic materials such as iron, nickel, cobalt, iron-aluminum alloy and some other alloys like Terfenol-D, Galfenol, Metgla etc. They are mainly used in actuators and some motors.

What is magnetostriction explain magnetostriction in detail with neat sketch?

Magnetostriction (cf. electrostriction) is a property of magnetic materials that causes them to change their shape or dimensions during the process of magnetization. The variation of materials' magnetization due to the applied magnetic field changes the magnetostrictive strain until reaching its saturation value, λ.

What are magnetic sensors used for?

Magnetic sensors are widely used in a variety of consumer products such as printers, scanners, cameras, and flat panels. One of the fastest growing applications of magnetic sensors is mobile navigation – the electronic compass is a must have feature in mobile devices such as smartphones and tablets.

What is magnetostrictive level sensor?

Magnetostrictive level transmitters are continuous float level sensors that provide near real-time level measurements by creating competing magnetic fields to generate a signal corresponding to liquid level.

What is a magnetostrictive generator?

Abstract. An electric generator based on the magnetostrictive effect is presented. Longitudinal oscillations of a Terfenol-D rod give rise to a varying flux which induces a current in a coil wound around the rod. A small prototype of such a device is discussed, and both calculations and experiments are performed.

What are the different magnetostrictive transducer explain in brief?

A magnetostriction transducer is a device that is used to convert mechanical energy into magnetic energy and vice versa. Such a device can be used as a sensor and also for actuation as the transducer characteristics is very high due to the bi-directional coupling between mechanical and magnetic states of the material.

What are the main differences between magnetostrictive and piezoelectric ultrasonic scalers?

The differences lie in how the two devices function. Magnetostrictive power scalers operate at an optimal frequency of 20 kHz to 40 kHz, whereas piezoelectric power scalers operate at a slightly higher optimal frequency of 29 kHz to 50 kHz.

What is magnetostriction effect explain with neat diagram?

Principle: When a rod of ferromagnetic material like nickel is magnetized. Longitudinally, it undergoes a very small change in length. This is called Magnetostriction effect. Construction: The circuit diagram of magnetostriction ultrasonic generator is as shown in the figure1.

How many types of magnetostriction are there?

There are two types of magnetostriction: spontaneous magnetostriction which arises from the magnetic ordering of atomic moments below the Curie temperature (usually causing a volume expansion) and field induced magnetostriction which arises from the alignment of magnetic domains on application of an applied field.

What is magnetic shape memory effect?

Magnetic shape memory (MSM) refers to a change in shape and/or size of a magnetic material upon applying a magnetic field. There are 2 types of MSM effects; the first one occurs in a twinned magnetically ordered material, in which the crystallographic axes are irreversibly reoriented by the applied magnetic field.
