L = Lead" is the distance traveled when the screw thread turns once. The 2N of a M10X1. 5 2N designates the thread as a two start or is a double thread. Although it will be a bit more difficult to produce, a screw with two starting points is called a two start or double thread.

What does double lead thread mean?

Pitch is the distance from the crest of one thread to the next. ... Because the vast majority of screw threadforms are single-start threadforms, their lead and pitch are the same. Single-start means that there is only one “ridge” wrapped around the cylinder of the screw's body.

What does lead mean in threads?

Lead– The axial distance the nut advances in one revolution of the screw. The lead is equal to the pitch. times the number of starts. Screw Starts – The number of independent threads on the screw shaft; example one, two or four in the. figure below.

What is lead in threaded joint?

Lead: It is the distance between two corresponding points on the same helix. It may also be defined as the distance which a screw thread advances axially in one rotation of the nut. ... Crest: It is the top surface of the thread. Root: It is the bottom surface created by the two adjacent flanks of the thread.

How do you find the lead of a thread?

Lead = Pitch x Number of Starts

For a single start lead screw, pitch and lead are the same, but for a thread with two or more starts the above formula should be used.

MACHINE SHOP TIPS #129 Cutting a Double Thread on the Lathe Part 2 tubalcain

What is the lead in case of power screw thread?

Lead is the axial advance of a helix or screw during one complete turn (360°) The lead for a screw thread is the axial travel for a single revolution. Pitch is defined as the axial distance between adjacent threads on a helix or screw.

What is the lead angle of a thread?

Lead angle is the angle between the helix of the thread and a line perpendicular to the axis of rotation. Angle “B” is the lead angle, and angle “A” is the helix angle (discussed below). You can see from the image that the smaller the lead, the smaller the lead angle.

What is lead screw used for?

A leadscrew (or lead screw), also known as a power screw or translation screw, is a screw used as a linkage in a machine, to translate turning motion into linear motion.

How does a lead screw work?

A lead screw turns rotary motion into linear motion combining a screw and a nut where the screw thread is in direct contact with the nut thread. In the case of roller screws, the rollers rather than the nut are in direct contact with the screw thread offering greater efficiency.

What is the difference between the pitch and lead?

Pitch is the distance between screw grooves and is commonly used with inch sized products and specified as threads per inch. Lead is the linear travel the nut makes per one screw revolution and is how ball screws are typically specified. The pitch and lead are equal with single start screws.

What is the relation between pitch and lead for double start threads?

A screw thread whose lead or the distance traveled when the screw rotates once, is equal to the pitch (P) and is called a single start thread. A screw thread whose lead (L) is equal to twice the pitch is called a two start or double thread.

What is lead of a gear?

Lead is the axial advance of a helix gear tooth during one complete turn (360°), that is, the Lead is the axial travel (length along the axle) for one single complete helical revolution about the pitch diameter of the gear.

What are double thread bolts used for?

Double threaded bolts also known as a double-threaded stud, have the same length threads on each end usually to house a nut. Both ends have chamfered points. A stud is upright support in the wall of a building to which sheathing, drywall, etc., are attached.

What is a double thread?

: two parallel threads of equal dimensions on the same screw one of which is 180° ahead of the other.

What's an example of a lead screw?

A lead screw (or leadscrew), sometimes called a power screw or translation screw, is used to translate turning motion into linear motion. ... For example, lead screws are often found in rapid prototyping, engraving, and data storage equipment. They are also widely used in the Biomedical industry.

What is the difference between lead screw and ball screw?

The key difference between a ball screw and a lead screw is in the way the load is carried between the moving surfaces. A ball screw uses recirculating ball bearings to minimize friction and maximize efficiency while a lead screw depends on low coefficients of friction between sliding surfaces.

What is lead screw nut?

The Screw Nut is a sliding feed nut compatible with the standards for a 30-degree trapezoidal screw thread. Formed by die-casting special bearing alloy of superb abrasion resistance, it is an inexpensive high precision product.

What are lead screws made of?

Lead screws are commonly made from carbon steel, stainless steel, or aluminum. The addition of a PTFE-type coating protects the screw and provides lubrication for the nut.

What is Acme lead screw?

ACME screws are one type of lead screw. ACME screws are designed with strong threads that are most commonly used for lifting. These screws are easier to manufacture than some other designs, but still offer considerable strength.

What is the thread pitch?

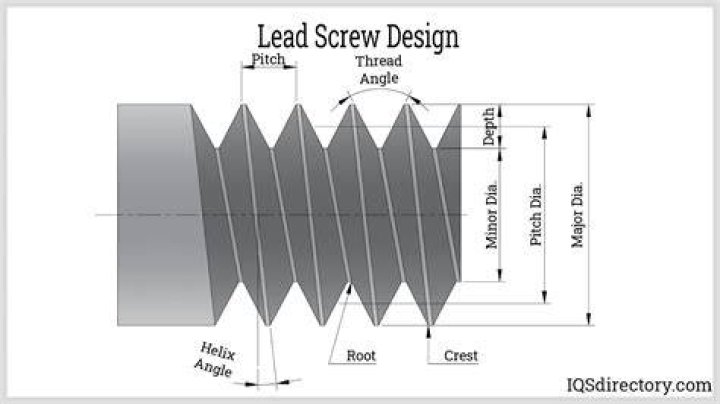

The thread pitch is the distance between corresponding points on adjacent threads. Measurements must be taken parallel to the thread axis. • The major diameter or outside diameter is the diameter over the crests of the thread, measured at right angles to the thread axis.

What is lead angle on tool?

The lead angle is an angular dimension measured parallel to the cutting edge of the tool and to the face of the part being produced (Figure 1). The angle affects the way the tool performs, how it should be applied and how the finished part looks.

What is lead angle in machining?

The lead angle of a face-milling cutter is the approach angle of the cutting edge in relationship to the workpiece and is measured off the axis of the cutter. The lead angle's relationship to the cutter and spindle axis impact tool performance and productivity significantly, which in turn affects workpiece quality.

How do I identify acme thread?

ACME thread pitches are measured in TPI (Threads per Inch) which is measured by finding the number of thread crests in 1" of threads. Types: General Purpose: The common type with a standard amount of clearance in the thread form. Example: 2G, 3G, 4G.
