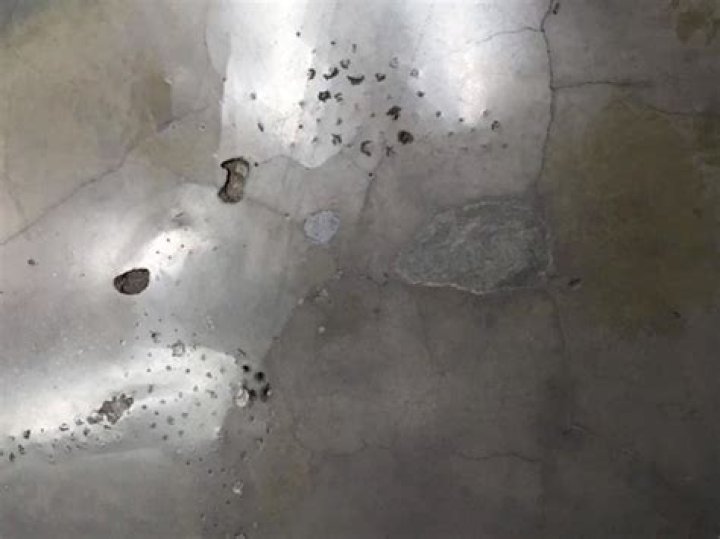

Concrete delamination is the separation of the paste layer at the surface, creating an unbonded concrete layer between there and the slab body. This issue develops with troweled concrete, commonly during the early spring and late fall with concrete placement on a cool subgrade.

How do you fix delaminated concrete?

If the delaminations are shallow enough, a deep grind (using low-grit diamond grinding tooling on a large concrete grinder) will remove the delamination and bring the floor to a solid substrate. This is by far the easiest and most cost-effective option.

How can you tell if concrete is delaminated?

The resulting delaminations are generally thicker than those caused by improper finishing. Delaminations are difficult to detect during finishing, but become evident after the concrete surface has set and dried. Delaminations can be detected by a hollow sound when tapped with a hammer or with a heavy chain drag.

How does concrete delamination occur?

CONCRETE SURFACES

Delamination occurs when the fresh concrete surface is sealed by troweling, while the underlying concrete is plastic and bleeding or able to release air. Delaminations form fairly late in the finishing process, after floating and after the first troweling.

What do you mean by delamination?

noun. a splitting apart into layers. Embryology. the separation of a primordial cell layer into two layers by a process of cell migration.

Concrete Delamination

How do you identify delamination?

There are multiple nondestructive testing methods to detect delamination in structures including visual inspection, tap testing (i.e. sounding), ultrasound, radiography, and infrared imaging. Visual inspection is useful for detecting delaminations at the surface and edges of materials.

What causes delamination?

Delamination refers to a flaw where plastic manufactured parts fracture into layers. ... Shrinkage stresses due to improper curing and cooling can cause cracking that leads to delamination, or faults in the injection molding process or machinery can result in this defect.

How do you prevent concrete from delaminating?

1. Don't seal the concrete surface early. ...
2. Avoid using dry shakes on air-entrained concrete.
3. Promote even setting throughout the slab by using accelerated or heated concrete.
4. If possible, never place concrete on top of a vapor retarder.

How can we prevent delamination?

The simplest way to prevent delamination is to start final finishing of the slab after the bleeding process has run its course. Avoid closing the slab surface too early. Take precautions when finishing and check if the concrete is air entrained. Avoid finishing slabs placed on impervious surfaces too early.

What is delamination and why does it occur?

Delamination is a critical failure mechanism in laminated fibre-reinforced polymer matrix composites, and is one of the key factors differentiating their behaviour from that of metallic structures. It is caused by high interlaminar stresses in conjunction with the typically very low through-thickness strength.

What is the difference between delamination and spalling?

Concrete delamination is found most frequently in bridge decks and caused by the corrosion of reinforcing steel or freezing and thawing. It is similar to spalling, scaling, sand boils or peeling although the damage caused by concrete delamination tends to affect larger areas.

What happens if you overwork concrete?

Never overwork or over finish the surface of any exposed concrete slab. This brings too much fine material to the surface, works out the designed air entrainment*, and will weaken the surface of the slab leaving the top of slab more vulnerable to freeze/thaw damage and sheet scaling*.

What does scaling concrete look like?

Scaling is local flaking or peeling of a finished surface of hardened concrete as a result of exposure to freezing and thawing. Generally, it starts as localized small patches which later may merge and extend to expose large areas. Light scaling does not expose the coarse aggregate.

What is curling of concrete?

The upward or downward movement of a concrete slab's corners or edges due to moisture and/or temperature differentials within the concrete is known as 'curling' or 'warping'. ... In the worst cases, slab edges and corners may lift off the ground and stepping between adjacent panels may occur.

Why does my concrete sound hollow?

Hollow sounds indicate the top surface of the floor has separated from the underlying concrete. “Sounding” by either tapping with a hammer or dragging a heavy chain and listening to the resulting sound are the easiest and primary means to detect and map delaminated floors.

Is delamination a problem?

This RV delamination problem is obvious. ... Most owners don't recognize the signs of RV delamination until it's too late. Fiberglass RV walls can look smooth on the outside while real damage is unseen. When the problem becomes obvious, repair is usually expensive and often impossible to fix.

What is delamination structure?

Delamination is a separation along a plane parallel to a surface, as in the separation of a coating from a substrate or the layers of a coating from each other or, in the case of a concrete slab, a horizontal splitting, cracking, or separation near the upper surface.

Can delamination be fixed?

To fix RV delamination, once it gets really bad, requires stripping the sides and basically rebuilding the exterior walls. In most cases, this is a cost-prohibitive total loss. ... Or rather, maintaining good exterior wall seams will prevent it, or keep it from getting any worse.

Why is delamination bad?

Delamination can peel away the exterior covering of your RV and trap moisture between that exterior and the interior walls. Those walls are usually made of wood and then another metal or hardy plastic frame, so there are dangers of letting that moisture infect your interior.

What is a delamination issue?

Delamination is when the fiberglass or gelcoat outer layer of an RV starts to pull away from the substrate, usually luan or a light weight plywood. Delamination begins as small cracks and then starts to spread outward. These cracks can start as stress cracks, but are mostly accelerated by water intrusion.

What is delamination on a boat?

Delamination occurs when the middle wood breaks down or pulls away from the surrounding fiberglass substrate. Delamination usually occurs due to water pooling in the hull's bilge for a prolonged period.

What is carbonation shrinkage?

Carbonation shrinkage occurs when the concrete is exposed to air containing carbon dioxide. ... When the carbon monoxide reacts with the fresh concrete near the surface, it produces a soft, chalky surface, usually 0.00254 to 0.00762 meters thick.

What is concrete crazing?

Craze cracks on concrete is when the surface of concrete develops a lot of fine cracks. Sometimes called map-cracking or alligator cracking, crazing of concrete is a result of conditions and curing methods at the point the concrete is laid or even the way it is finished.

Are bug holes in concrete bad?

Bugholes as surface defects are not detrimental to structural concrete from a durability standpoint. Nevertheless, with the increased use of structural concrete in finished construction, surface quality is increasingly important.

How long does 4 inches of concrete take to cure?

Your concrete should be solid enough to walk on, without leaving footprints, after anything from 24 to 48 hours. By seven days, your concrete should be cured to at least 70 percent of its full strength.
