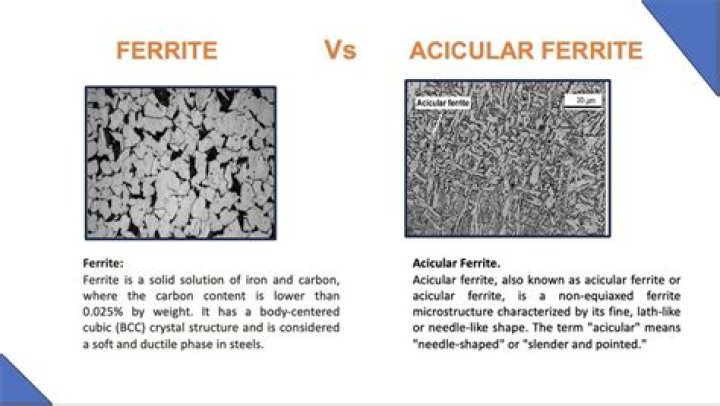

Acicular ferrite is a microstructure of ferrite in steel that is characterised by needle-shaped crystallites or grains when viewed in two dimensions. The grains, actually three-dimensional in shape, have a thin lenticular shape.

How is acicular ferrite formed?

Acicular ferrite is formed in the interior of the original austenitic grains by direct nucleation on the inclusions, resulting in randomly oriented short ferrite needles with a 'basket weave' appearance. Acicular ferrite is also characterised by high angle boundaries between the ferrite grains.

What is bainitic ferrite?

Bainite is a plate-like microstructure that forms in steels at temperatures of 125–550 °C (depending on alloy content). ... A fine non-lamellar structure, bainite commonly consists of cementite and dislocation-rich ferrite.

What is polygonal ferrite?

polygonal ferrite is formed during the continuous cooling. of one high strength low alloy steel. Specifically, the role. of carbides in the kinetics of polygonal ferrite formation. will be discussed.

What is ferrite microstructure?

Ferrite is a microstructural phase that is soft, ductile, and similar to pure iron. There is a limit on how much carbon can fit in the gaps in the ferrite structure: 0.02 percent carbon at 1,340 degrees F (725 degrees C), but dropping to 0.006 percent (60 PPM) carbon at room temperature.

What is ACICULAR FERRITE? What does ACICULAR FERRITE mean? ACICULAR FERRITE meaning & explanation

What microstructure means?

Microstructure is the very small scale structure of a material, defined as the structure of a prepared surface of material as revealed by an optical microscope above 25× magnification. ... In fact, for many materials, different phases can exist at the same time.

What happens when you quench austenite?

If you quench a carbon steel from its austenite regime, you will have phase transformation and at high cooling rates to room temperature you will have martensite and possibly retained austenite, if the carbon content is high. If the cooling is stopped at a higher temperature, retained austenite fraction is higher.

What is the difference between alpha ferrite and delta ferrite?

Alpha ferrite forms by the slow cooling of austenite, with the associated rejection of carbon by diffusion. ... Delta ferrite is the high temperature form of iron, formed on cooling low carbon concentrations in iron-carbon alloys from the liquid state before transforming to austenite.

Is bainite harder than pearlite?

The hardness of the reaction product also increases continuously with decreasing temperature, lower bainite being harder than upper bainite, which is harder than most fine pearlite.

What does the word acicular mean?

Acicularadjective. needle-shaped; slender like a needle or bristle, as some leaves or crystals; also, having sharp points like needless.

What is acicular martensite?

Martensite is an acicular (needle-like) type of ferrite. It is formed when austenite is cooled too rapidly for ferrite to form normally, in accordance with the equilibrium diagram. Since martensite is not an equilibrium phase, it is never shown on phase diagrams.

What mineral shows acicular habits?

Minerals with an acicular habit include mesolite, natrolite, malachite, gypsum, rutile, brochantite and bultfonteinite. Crystals of dimethyltryptamine have an acicular habit, but this substance is not regarded as a mineral by the International Mineralogical Association.

What is delta ferrite?

Delta ferrite may form during solidification of steels and welds. In welds, delta ferrite forms during the solidification of: - low-carbon steel welds; - high-alloy ferritic chromium welds; ... 2 In fully austenitic welds, austenite can also change into ferrite as a result of the gamma alpha transformation.

Is martensite fcc or BCC?

The two-step theory. The two most usual martensitic transformations are fcc–hcp in Co, FeMn and some FeCrNi alloys, and bcc–hcp in Zr and Ti alloys [22], [23], [25].

Is ferrite harder than austenite?

The hardness of ferrite and austenite

Ferrite is known to be harder than austenite. Usually, elements such as chromium, molybdenum, silicon, and niobium foster ferrite.

Why is quenching in oil better than water?

Oil is preferable to the traditional quenching medium of water because it reduces the risks of distortions or cracking by cooling metals more evenly and more quickly.

What is the best oil to quench a knife in?

• Motor oils are a common type of quenching oil used in both blacksmithing and bladesmithing applications. ...
• Mineral oils and automatic transmission fluids are a suitable alternative for motor oils. ...
• Mineral oil quenchants work great with steels that require a fast quench rate and oil-hardened steels.

What is the hardest transformation product from austenitizing and quenching?

Martensite: An unstable constituent that is formed by heating and quenching steel. It is formed without diffusion and only below a certain temperature. Martensite is the hardest of the transformation products of austenite, having an acicular, or needlelike, microstructure.

What are the types of microstructure?

• Microstructures of sand grains.
• Single grains. Almost entirely formed of sand grains, without, or with very little, fine material between the grains. ...
• Bridged grains. Sand grains joined by bridges of fine material.
• Pellicular grains. ...
• Intergrain vesicles. ...
• Intergrain channels. ...
• Compact grains.

How do microstructures form?

Microstructures are almost always generated when a material undergoes a phase transformation brought about by changing temperature and/or pressure (e.g. a melt crystallising to a solid on cooling). Microstructures can be created through deformation or processing of the material (e.g. rolling, pressing, welding).

Why is microstructure differenT for metals?

The crystalline structure of metals further changes as the metal is worked ( forged, hammered, rolled, extruded,etc) with the crystals being elongated, bent, fractured, and generally deformed plastically.

What is austenite ferrite and martensite?

Austenite is a high-temperature phase of plain steel, which recrystallizes into ferrite/pearlite around 1425°F (depending on chemistry), below which ferrite becomes the more stable phase. ... Martensite can be achieved in both alloy and stainless steels.

What is pearlite and ferrite?

The alpha phase is called ferrite. Ferrite is a common constituent in steels and has a Body Centred Cubic (BCC) structure [which is less densely packed than FCC]. Fe₃C is called cementite and lastly (for us), the "eutectic like" mixture of alpha+cementite is called pearlite.

What is free ferrite?

Free ferrite is ferrite that is structurally separate and distinct, as may be formed without the simultaneous formation of carbide when cooling hypoeutectoid austenite into the critical temperature range. Free ferrite is a relatively pure metallic iron phase present in steel or cast iron.
