1) Wire wound potentiometers: This potentiometer comprises of several rounds of wire wound around the shaft of the non-conducting material. ... In this case the slider, connected to the body whose displacement is to be measured, moves on the potentiometer track and it makes contacts with successive turns of the coil.

What is the use of wire wound potentiometer?

Wirewound resistor potentiometers can be made to offer both high power and high precision. These potentiometers are often used in stereo systems for their precision and in high power applications like transducers and televisions. Wirewound resistors can also be used as temperature sensors.

What is a potentiometer used for?

A potentiometer is a type of position sensor. They are used to measure displacement in any direction. Linear potentiometers linearly measure displacement and rotary potentiometers measure rotational displacement.

Which type of material is used in wire wound potentiometer?

W-w Potentiometer uses a resistive element which looped copper nickel or nickel chrome resistive wire evenly around the cable core or card core. Combination of the resistive element and a noble metal alloy wiper maintains the precision and steady performance.

What are the materials used for wire wound potentiometers and non wire potentiometers?

The resistive element of inexpensive potentiometers is often made of graphite. Other materials used include resistance wire, carbon particles in plastic, and a ceramic/metal mixture called cermet.

Wire Wound Resistors Explained. Applications,Advantages, Disadvantages,Types etc

What are the disadvantages of potentiometer?

• It is slow in operation.
• It has low accuracy.
• It has limited bandwidth.
• If you use a linear potentiometer, you should apply a large force to move the sliding contact.
• There is a possibility of friction and wear due to the sliding of the wiper across the resistive element.

Do wire wound resistors get hot?

If the resistor is dissipating 3W it will be too hot to touch but this is OK. Too hot to touch is not really all that hot and is nothing for a wirewound resistor. Don't worry about it.

What are the advantages of wire wound resistor?

Following are the advantages of wire wound resistor: It has higher order of stability and reliability. It has high power rating with a low tolerance value. Easy to make wire wound resistor of value 0.01 Ohm.

What do potentiometers measure?

A potentiometer is an instrument for measuring voltage or 'potential difference' by comparison of an unknown voltage with a known reference voltage. If a sensitive indicating instrument is used, very little current is drawn from the source of the unknown voltage.

Which wire is most suitable for potentiometer?

In general alloys like constantan or manganin are used as potentiometer wire . Constantan or manganin wire posses low temperature coefficient.

What does a potentiometer look like?

A potentiometer has 3 pins. Two terminals (the blue and green) are connected to a resistive element and the third terminal (the black one) is connected to an adjustable wiper. The potentiometer can work as a rheostat (variable resistor) or as a voltage divider.

Why is ten wire potentiometer?

As the length increases, the potential decrement per unit length will become less and hence accuracy increases which makes it more sensitive. So ten wire potentiometer is more sensitive than a four-wire one.

What are 3 uses for potentiometers?

• Measuring Position on a gaming joystick.
• Controlling audio equipment using volume controls.

How can resolution of a wire wound potentiometer be improved?

Wirewound resistors often have a lower resolution because the wire turns introduce discrete steps in resistance. Conductive plastic potmeters have the best resolution. The resolution can be influenced by the wiper configuration, a wiper consisting of several spread contact points increases the potentiometer resolution.

Can flexible potentiometers be printed?

Printed Potentiometers

Flexible foil membrane potentiometers can be used to detect the rotating position of a tube. ... To save space and reduce costs, the potentiometers can be printed directly on the substrate; for example, PCB material such as FR4.

What is a rotary potentiometer?

A rotary potentiometer (Pot) is a three-terminal device that employs a resistive element and a rotating contact to form an adjustable voltage divider. If only two terminals are used, one end of the element and the adjustable contact, it acts as a variable resistor or rheostat.

Are potentiometers polarized?

They are not polarized so they can operate in reverse. Potentiometers, on the other hand, are made with a resistive element, usually graphite, which is formed into an arc and a sliding contact or wiper that travels over the arc.

How do potentiometers work?

Potentiometers work by varying the position of a sliding contact across a uniform resistance. ... A potentiometer has the two terminals of the input source fixed to the end of the resistor. To adjust the output voltage the sliding contact gets moved along the resistor on the output side.

How much current can a potentiometer handle?

If the potentiometer is rated at 1 Watt, you can only apply a maximum of 100 volts. I.e 10 mA. That applied to the voltage across the full 10000 ohms. That also means that you cannot pass more than 10 mA into the Wiper.

Are wire wound resistors fixed or variable?

The different types of fixed resistors include: Wire wound resistor. Carbon composition resistor.

Is a light bulb a resistor?

The reason a light bulb glows is that electricity is forced through tungsten, which is a resistor. The energy is released as light and heat. A conductor is the opposite of a resistor.

What is the meaning of wire wound?

adjective. 1(Especially of a gun) wound or encircled with wire; now historical. 2(Of an electrical component, especially a resistor) consisting of a coil of electrical wire wound around a core.

What is a wire wound resistor made of?

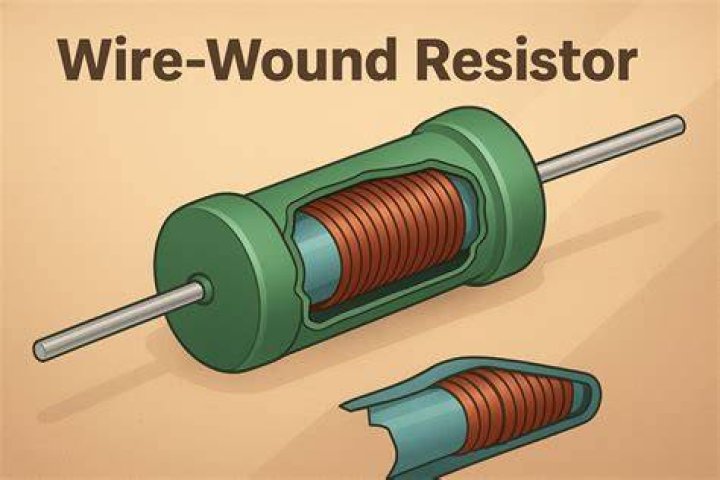

Wirewound resistors are commonly made by winding a metal wire, usually nichrome, around a ceramic, plastic, or fiberglass core. The ends of the wire are soldered or welded to two caps or rings, attached to the ends of the core.
