A gyrator can be used to transform a load capacitance into an inductance. At low frequencies and low powers, the behaviour of the gyrator can be reproduced by a small op-amp circuit. This supplies a means of providing an inductive element in a small electronic circuit or integrated circuit.

How does a gyrator work?

A gyrator is linear, lossless, passive and memory less two port device which is similar to an ideal transformer. However, a transformer couples the voltage on port 1 to the voltage on port 2 and current on port one to current on port 2, the gyrator cross couples the voltage to current and current to voltage.

What is gyrator in microwave?

The gyrator is one of the ferrite device used in RF and microwave circuit design to obtain phase shift of about 180 degree. It is basically a two port device. The S matrix of an ideal lossless gyrator and circuit symbol is mentioned in the figure. The gyrator is basically a phase shifter with 180 degree phase shift.

What is the working principle of operation of a microwave gyrator?

Gyrators are used as a component in various microwave devices, such as gates, modulators, circulators, and switches. The operating principle of gyrators is based on the irreversible properties of magnetized ferrite; these properties cause rotations of polarization plane, phase shift, and so on.

What is magnetic capacitor?

Magnetic capacitance is an alternate name for permeance, (SI unit: H). It is represented by a capacitance in the model magnetic circuit.

Gyrator Device : How to design and analyze Gyrator Circuit

What is Gyrator circuit?

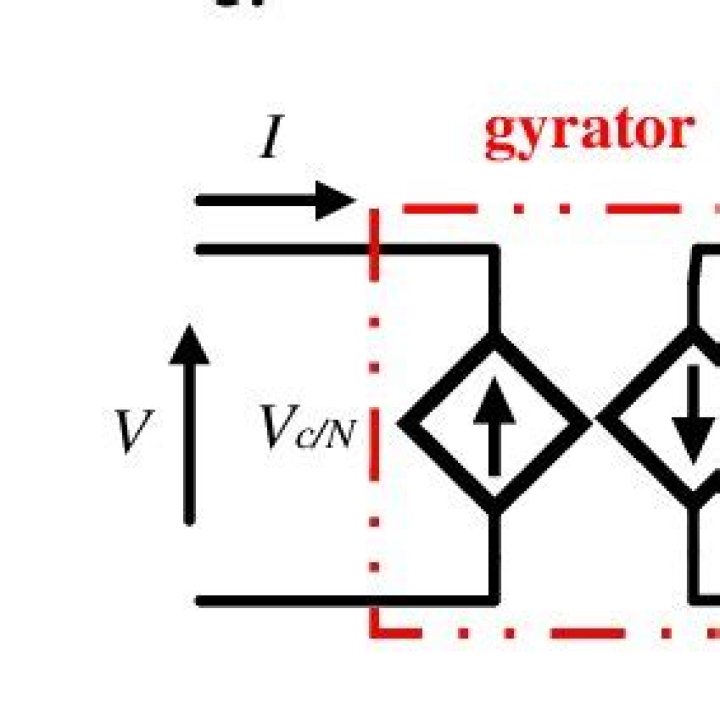

A gyrator is a passive, linear, lossless, two-port electrical network element proposed in 1948 by Bernard D. H. Tellegen as a hypothetical fifth linear element after the resistor, capacitor, inductor and ideal transformer. ... Circuits that function as gyrators can be built with transistors and op-amps using feedback.

What are different types of capacitors used for?

Standard capacitors have a fixed value of capacitance, but adjustable capacitors are frequently used in tuned circuits. Different types are used depending on required capacitance, working voltage, current handling capacity, and other properties.

How does a microwave circulator work?

A Circulator utilizes a transversely magnetized ferrite junction to circulate incoming microwave energy from port 1 to port 2, port 2 to port 3, and port 3 to port 1. The arrows represent the direction of the magnetic fields and the signal when applied to any port of these devices.

What is the use of isolator in microwave?

An isolator is a two-port device that transmits microwave or radio frequency power in one direction only. Due to internal behavior, the propagation in one direction is allowed while the other direction is blocked.

What does impedance converter do?

The negative impedance converter (NIC) is a one-port op-amp circuit acting as a negative load which injects energy into circuits in contrast to an ordinary load that consumes energy from them.

What are ferrite devices?

Ferrite electrical devices are devices that are constructed using Ferromagnetic materials. ... Ferrites are used to construct isolators, circulators phase shifters, variable attenuators, modulators and switches in microwave systems.

What ferrite devices can be used instead of duplexer of isolate?

• A. Isolator.
• Magnetron.
• Simplex.
• Circulator.

What is the principle of microwave phase shifter?

Microwave phase shifters are devices that alter the phase of the electromagnetic oscillations at the output of a microwave transmission line, with respect to the phase of the oscillations at the input of the line.

What is an active inductor?

TThe active inductor is an inductor- less. circuit whose impedance rises with frequency across some frequen- cy range. Occupying much less area than a passive inductor and offer- ing tunability, such a circuit proves useful in broadening the bandwidth or realizing other functions that re- quire an inductive element.

Is a device that produces a phase shift of a required amount of the input wave?

Explanation: Gyrator is a device that produces a phase shift of 180⁰ between the input and output of the gyrator. This is a special case of the ferrite phase shifter which gives a constant phase shift and cannot be changed. Explanation: The scattering matrix of a gyrator is Skew symmetric.

Why is isolator needed?

Q: Where and why is an isolator needed? A: It is primarily used to protect other RF components from excessive signal reflection. For example, isolators are used in test applications to provide electrical separation between a device under test (DUT) and a sensitive signal source.

What is the need for isolator?

It separates the circuit part in which the error takes place from the power supply. Isolators are applicable for high voltage devices like transformers. The main function of the Isolator is, it blocks the DC signals & allows the AC signals to flow.

What is the application of isolator?

The applications of isolator include the following. High Voltage Devices: Isolators are used in High Voltage devices. Isolator in Substation: When a fault occurs in a substation, then isolator cuts out a portion of a substation. Signal Isolation: Isolators can be used for isolation of signal.

What is the function of a circulator?

Circulator is used to transmit the incident wave which entry from any port of its body to the next port, according to a certain direction confirmed by Static bias magnetic field.

What is the difference between an isolator and a circulator can a circulator be used as an isolator?

An isolator is a circulator but has only 2 ports that transfer a signal, while the third has a termination resistor that is connected to ground. Think of it as a dumpster for unwanted signal. It protects RF components from excessive signal reflection.

What is the advantage of using a circulator with two transmitter and two receiver?

New for July 2018! Dual-junction circulators are used in duplexing transmitter/receiver to antenna, in radar applications. The purpose of the second junction is to isolate the power amplifier from seeing a poor impedance match and preventing load pull which could blind your radar.

Why do you need a capacitor?

Capacitors are useful to reduce the voltage pulsation. When the high voltage is applied to the parallel circuit, the capacitor is charged, and on the other hand, it is discharged with the low voltage. While electricity flowing out is alternating current, most of electronic circuits work with direct current.

Which capacitor is used for high frequency?

Class 12 Question. Mica capacitor. Mica capacitors have low resistive and inductive components associated with it. Hence, they have high Q factor and because of high Q factor their characteristics are mostly frequency independent, which allows this capacitor to work at high frequency.

What are the 5 types of capacitor?

• Electrolytic Capacitor.
• Mica Capacitor.
• Paper Capacitor.
• Film Capacitor.
• Non-Polarized Capacitor.
• Ceramic Capacitor.

Why do we need phase shifter?

Phase Shifters are a critical component in many RF and Microwave systems. Applications include controlling the relative phase of each element in a phase array antenna in a RADAR or steerable communications link and in cancelation loops used in high linearity amplifiers.
