All Answers (2) A microphotograph is a picture which is too small to see with the unaided eye. ... However, photograph of rock thin section is a photograph or digital image taken through a microscope or similar device to show a magnified image of an item. Therefore, photomicrograph is the proper term to be used.

What is the difference between microscope and photomicrographs?

Visit the Microscopy Shop!

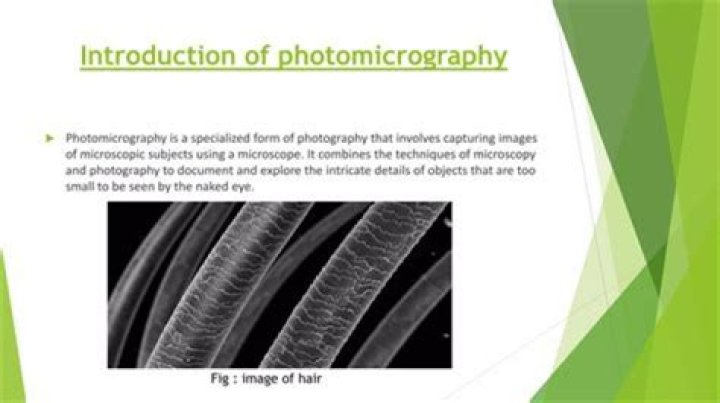

A photomicrograph (or simply a micrograph) is a picture of a microscopic structure taken with the help of a microscope. These are the pictures that microscopists make with the help of a microscope.

What is photomicrography used for?

Cinephotomicrography, taking motion pictures of magnified objects, is useful in studying organism growth, colloidal movement, and chemical reactions. There are two principal methods of photographing through a microscope.

What is the definition of a micrograph?

: a graphic reproduction of the image of an object formed by a microscope.

What is the magnification of photomicrography?

Projection lenses used in photomicrography typically have useful magnification factors of 2.5x to 3.3x, although higher magnifications (up to 7x) are available for special circumstances.

Comparing Microscopes

Who invented photomicrography?

In the 1870s, U.S. Army surgeon Joseph Janvier Woodward invented a technique of photographing objects seen under a microscope.

What is the microscope picture?

A micrograph or photomicrograph is a photograph or digital image taken through a microscope or similar device to show a magnified image of an object.

Do prokaryotic cells have?

Prokaryotes are single-celled organisms belonging to the domains Bacteria and Archaea. Prokaryotic cells are much smaller than eukaryotic cells, have no nucleus, and lack organelles. ... Most prokaryotic cells have a single circular chromosome. They may also have smaller pieces of circular DNA called plasmids.

What is film photomicrography?

Capturing images observed in the microscope onto the emulsion of photographic film or into the pixel array of a charge-coupled device (CCD) allows scientists to produce a "hard copy" for research records and publication.

What is microscopy techniques?

Microscopy is the technique used to view objects that cannot be seen by the naked eye. The range can be anything between mm and nm. There are 3 main microscopic techniques that are used; Optical microscopy, Scanning probe microscopy and Electron microscopy.

What is the difference between light microscopes and electron microscopes?

Electron microscopes differ from light microscopes in that they produce an image of a specimen by using a beam of electrons rather than a beam of light. Electrons have much a shorter wavelength than visible light, and this allows electron microscopes to produce higher-resolution images than standard light microscopes.

What is the difference between macro photography photomicrography and microphotography?

As mentioned above, macro photography is where the subject of our photography appears with a magnification of 1x or more on the camera's sensor (some people call this 1:1 magnification). Micro photography or photomicrography is relates to photography through a microscope.

What is a micrograph or Microphotograph?

A micrograph, microphotograph or photomicrograph is a photograph or similar image taken through a microscope or similar device to show a magnified image of an item.

What is the difference between magnification and resolution?

Magnification is the ability to make small objects seem larger, such as making a microscopic organism visible. Resolution is the ability to distinguish two objects from each other. Light microscopy has limits to both its resolution and its magnification.

What is microscope used for?

A microscope is an instrument that can be used to observe small objects, even cells. The image of an object is magnified through at least one lens in the microscope. This lens bends light toward the eye and makes an object appear larger than it actually is.

Can light microscope see viruses?

Standard light microscopes allow us to see our cells clearly. However, these microscopes are limited by light itself as they cannot show anything smaller than half the wavelength of visible light – and viruses are much smaller than this. But we can use microscopes to see the damage viruses do to our cells.

What are the types of microscopy?

• Dark Field Microscopy. Dark field vs bright field microscopy: Bright field microscopy uses the most basic and the common type of optical microscope. ...
• Fluorescence microscopy. ...
• Phase Contrast Microscopy. ...
• Differential Interference Contrast Microscopy. ...
• Confocal Microscopy. ...
• Polarized Microscopy.

Why are microscope images inverted?

There are also mirrors in the microscope, which cause images to appear upside down and backwards. ... The letter appears upside down and backwards because of two sets of mirrors in the microscope. This means that the slide must be moved in the opposite direction that you want the image to move.

Who made the first microscope?

Every major field of science has benefited from the use of some form of microscope, an invention that dates back to the late 16th century and a modest Dutch eyeglass maker named Zacharias Janssen.

What photomicrography is and how it works?

Photomicrography is the process of using a microscope to photograph a magnified image of microscopic specimens. In its simplest form, an image of a specimen viewed through a microscope is illuminated by a light source onto a screen or paper, then this projected image is photographed.

How many types of electron microscope are there?

The two main types of electron microscopes are the transmission electron microscope (TEM) and the scanning electron microscope (SEM).
