Standpipe systems are designed to provide fire protection water for hose lines in strategically placed locations inside a building or structure. Some older buildings only have standpipe systems while many newer buildings will have a combination system, which supplies the fire sprinkler system and the standpipe system.

What buildings require standpipes?

• A building that has an assembly occupancy with an occupant load exceeding 1,000.
• Covered and open mall buildings.
• Buildings that contain a stage greater than 1,000 ft2.
• Underground buildings.
• Buildings with a helistop and heliports.
• Marinas and boatyards.

Is a standpipe required in an existing building?

(Generally speaking, most buildings over 10,000 square feet must be fully sprinkled.) In summary, if a building is required to be equipped with a fully automatic sprinkler system, and it is more than 30 feet from surrounding grade to the highest or lowest story, a Class I standpipe system is likely required.

How many standpipes are required?

(2) Every building six (6) stories or more in height shall be provided with not less than one operable standpipe. Such standpipes shall be installed when the progress of construction is not more than 50 feet in height above grade.

What is difference between hydrant and standpipe?

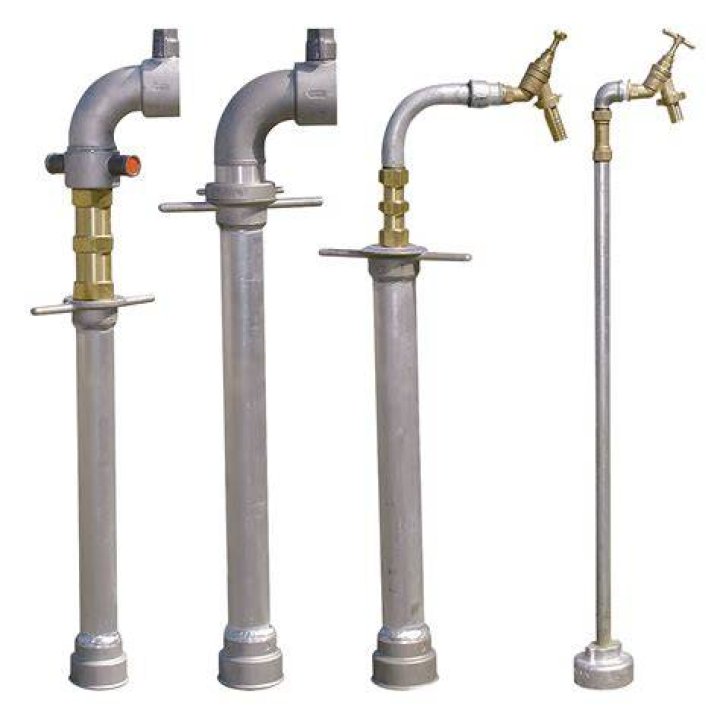

A fire hydrant is a vertical steel pipe with an outlet, close to which two fire hoses are stored (A fire hydrant is called a standpipe in America).

Types of Standpipes | Pass the ARE 5.0

Which pipe is used for firefighting?

Fire fighting pipe is a type of normal carbon steel pipe used to convey fire suppression agent such as water or gas. Usually it is red in color. But light-wall pipes have a galvanized exterior of a silvery appearance. Installation of red steel pipe is limited to wet pipe sprinkler systems only.

What pressure should I pump my standpipe?

The minimum pressure while flowing the required standpipe flow (500 GPM from the hydraulically most remote standpipe and 250 GPM from each additional standpipe, up to a maximum of 1000 GPM for a fully sprinklered building) shall be 100 psi at any valve outlet while flowing 250 GPM through each valve.

What are the three classes of standpipes?

• Class I standpipes serve a 2.5-inch fire hose connection for fire department use. ...
• Class II standpipes serve a 1.5-inch fire hose connection and are typically found in cabinets. ...
• Class III standpipes have both connections of Class I and II.

How much does a standpipe cost?

Standpipe Systems. Costs are roughly $5,000 per floor per standpipe required. Pipe routing might be an issue because the piping generally will be 4 inches or larger in diameter.

Are standpipes required?

A Class I system is typically required in buildings that have more than three stories above or below grade because of the time and difficulty involved in laying hose from fire apparatus directly to remote floors. For these reasons, Class I standpipes are the required system in high-rise buildings.

What are the three main considerations that determine the required standpipe installation?

What are the three main considerations that determine the required standpipe system installation? The building height above or below the level of fire department access, whether a fire sprinkler system is installed, the use and occupancy of the building.

What are the five types of standpipe systems?

• Automatic dry standpipe system.
• Automatic wet standpipe system.
• Combined system.
• Manual dry standpipe system.
• Manual wet standpipe system.
• Semiautomatic dry standpipe system.
• Wet standpipe system.

What is class1 standpipe?

Class I standpipes are for trained firefighter use. They have a 2 ½-inch outlet and are capable of flowing a minimum of 250 gallons per minute (gpm) from each individual outlet. Each riser should be capable of flowing 500 gpm.

What is a standpipe for washing machine?

A laundry standpipe connects a washing machine's drain hose to a home's waste stack. While it might be tempting to simply connect your washer to any other convenient drain line, doing so increases the risk of water overflow and sewer fumes.

What standpipe class can be used by both occupants and fire personnel?

Class II standpipes are intended to be used by the occupants of the building, like fire extinguishers, and are equipped with a valve and 1.5-inch hose connection at each location.

What are the different types of standpipes?

• Wet system. Here, water is in the pipes at all times and is supplied by a water source. ...
• Automatic dry standpipe. Here, there is always air stored inside the standpipe at a constant pressure. ...
• Semi-automatic dry standpipe. ...
• Manual dry standpipe.

What is the advantage of a dry standpipe system?

Advantages of using dry pipe fire sprinkler systems include:

Dry pipe sprinkler systems provide automatic protection in spaces where freezing is possible. Typical dry pipe installations include unheated warehouses and attics, outside exposed loading docks and within commercial freezers.

What class is a dry standpipe?

c. Class I manual standpipes are allowed in open parking garages not greater than 150-feet from the highest floor to lowest fire department access level. d. Class I manual dry standpipes is allowed in open parking garages subject to freezing that meeting the Class II requirements of 905.5.

What is stand pipe pressure?

Standpipe pressure is the sum of all pressure loss that occurs due to fluid friction. It is mainly used for oil drilling and extraction operations. ... The standpipe pressure is measured using a standpipe pressure gauge.

How is standpipe pressure calculated?

1. PP = PDS + PB + PA.
2. PP : pump pressure, psi.
3. PDS : drill string friction pressure, psi.
4. PB : drilling bit pressure drop, psi.
5. PA : annulus pressure, psi.

What metal is used in fire sprinklers?

Copper is a strong, durable, malleable metal that's been used in fire sprinkler piping since 1961.

What fire gives off?

All fires emit carbon dioxide, carbon monoxide, and particulate matter, including white (organic) carbon and black carbon.

Which pipe is best for sprinkler system?

Polyethylene is the best bet for special situations in areas where sprinkler and irrigation systems require flexibility. Both types of pipe are durable and can withstand many elements in the environments where they excel.
