use house wrap and flash horizontal joints in panel siding. protect lower part of wall sheathing with bituthane membrane. overlap sill-to-foundation joint with a minimum 2-inch overlap.

Should sheathing cover sill plate?

no, typically the sheathing come down about an inch below your sill plate so that it covers the plate-to-foundation connection. don't forget your sill sealer under your sill plate.

How far down should sheathing go?

6" is about perfect. Carpenters will often stick a pair of framing nails under the sill plate, and use that to support the first sheet of sheathing, which, on an 8' wall (with precut studs) is at the proper height to get nailed to both the sill plate and the top plate.

Should sill plate be flushed foundation?

Sills can be placed flush with the foundation wall, set back slightly, or even overhang slightly depending on the exterior surface material (check local codes for the amount of overhang allowed). ... Anchors must be placed between 4" and 12" from the end of the sill plates and not farther than 6' apart elsewhere.

Should sheathing overlap rim joist?

The wall sheathing should extend below the rim joist, which is inset on this house to allow for a continuous band of insulation. The wall sheathing below dictates the overhang.

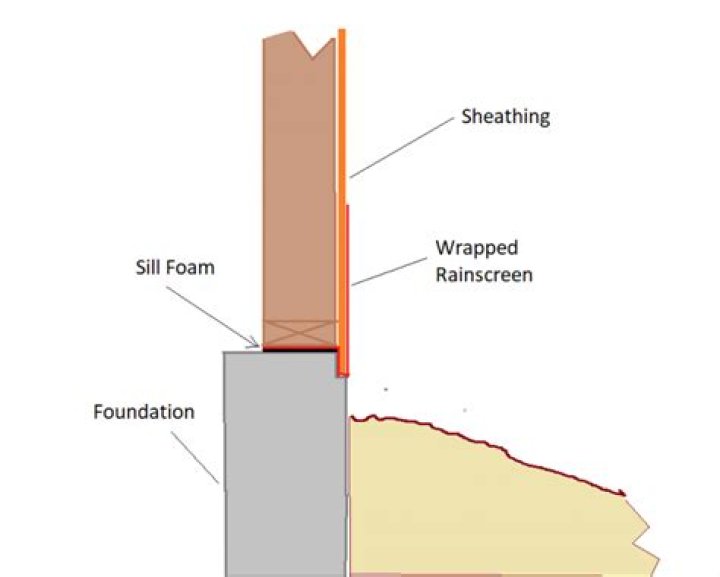

Sealing Wall Sheathing to the Foundation

How far should sheathing overlap foundation?

protect lower part of wall sheathing with bituthane membrane. overlap sill-to-foundation joint with a minimum 2-inch overlap.

Do you stagger wall sheathing?

Most installations are Category 1, but the critical criteria in all categories is that the panels MUST fully meet (lap) the sill plate, both top plates and 1/2 of stud at ends. (Please stagger nailing into studs where the panels end, to avoid splitting of stud.)

Can a sill plate overhang foundation?

Two inches of sill plate overhang is quite a bit. However, in years past sill plates were often built with 2x4s. ... Just make sure that the sill plates are bolted to the foundation wall. Also make sure the exterior sheathing and finished siding drops down over the sill plate by at least an inch.

Should wall sheathing overhang concrete?

joecaption said: If done right the slab should be at least 6" above finished grade to protect the sheathing from splash back. A slab on grade is 100% sure way to have future issues. I always overhang the sheathing at least 1/2" to help keep out wind, water and prevent wicking.

How wide should a sill plate be?

A sill plate, also known as a sole plate, is the bottom horizontal part of a wall or building to which the vertical studs will be attached. Most sill plates are made from lumber - usually measuring 2" x 4", 2" x 6", 2" x 8" or 2" x10".

Should sheathing overlap at corners?

Usually install the sheathing so the corner is hollow and not overlapped to keep the corner from interfering with the siding corners, depending on what that might be. Code here is to leave a small gap between horizontal sheathing to allow the wall to breath outward.

Should wall sheathing be installed vertically or horizontally?

If the height of a wall is less than 8-feet, install the plywood (or OSB) vertically. If the height of a wall is greater then 8-feet, install the plywood (or OSB) horizontally.

Should sheathing be vertical or horizontal?

On roofs and floors, sheathing is installed perpendicular to supports because this is the orientation that results in the strongest roof or floor. Wind loads perpendicular to a wall are similar to floor and roof loads, and installing sheathing horizontally makes walls better at resisting wind pressure.

Do you need sheathing under siding?

It is completely okay if you were not aware that there's no sheathing under siding until you removed it. Sheathing works as a case or cover, structural support, insulator, and more. Missing sheathing is not any structural defect. It's possible that it was not added to the construction plan.

What is the advantage of installing wall sheathing before the wall is erected?

The main advantage to sheathing exterior walls before raising them is that it's far easier to do this while the project is lying flat than it is do keep your plywood or OSB panels level while nailing them into place with the walls already up.

Do you need sheathing?

Most new walls need sheathing to strengthen them, to act as a nailing base for siding, and/or to boost insulation. Existing walls usually do not require sheathing unless you are stripping off the old siding and applying a different type that calls for sheathing.

What is used for exterior sheathing?

There are many exterior wall sheathing options available, with wood sheathing being one of the most commonly used materials. Wood sheathing materials include plywood, oriented strand board (OSB), and waferboard. Plywood is made of whole sheets of wood that are cross-laminated.

What overhang would be considered defective for a bottom plate over a concrete slab?

The Building Commission's Guide to Standards and Tolerances clause 4.08 Bottom Plates that Overhang Concrete Slabs, states 'Bottom plates that are at least 90mm wide and overhang concrete slabs are defective. An overhang of up to 10mm is permissible'.

How far above grade should a wood sill plate typically be?

Place the sill plate at least 8 inches above grade; it should be pressure-preservative treated to resist decay.

How do you frame a wall on an uneven concrete floor?

When a floor is uneven, the best way to frame a new wall is to set the floor and ceiling plates first. Use a chalk line on the floor to indicate wall placement, and cut a 2-by-4 to fit. Attach the board, which serves as the floor plate, with 16d nails, two per floor joist, evenly spaced.

Does sheathing have to end on a stud?

Correct placement of the sheathing is when the edge of the sheet lines up perfectly with the outer wall, and the other end of the sheet is on the center of a stud.

What side of the OSB goes out?

The smooth side has a better moisture resistance and will ultimately provide better performance against weather. Facing the board smooth side out will maximize its ability to keep moisture out of the structure.

Can you put 2 layers of house wrap on?

3 Answers. There is no problem with doing this. Housewrap is "breathable" by design so you won't trap moisture anywhere. You could build a wall with ten layers of housewrap and it would be more durable, not less.
