When APs have overlapping coverage they should be set to different non-overlapping channels. This prevents the APs from causing an increase in channel utilization or interfering with each other. ... The goal of using different non-overlapping channels is to avoid the affects caused by channel utilization and interference.

Should I put all access points on same channel?

Nothing wrong with this as long as the access points use non-overlapping channels. If the channels do overlap it could cause a situation where their access points interfere with each other. This can cause packet loss during browsing and a negative internet experience for those using your WiFi network.

What happens if two access points are on the same channel?

When two or more access points or wireless clients (stations) that are in range of one another, operate on the same channel, they form one collision domain. If any two devices in the same collision domain transmit at the same time, their radio signals will collide, resulting in corruption or frame loss.

Should mesh AP be on same channel?

Typical mesh systems use the same frequency channels for all hops between APs. While simple, this arrangement ensures that each hop in the network interferes with all other hops! Another mesh simplification is to dedicate channels or radios specifically for duty between APs, vs. connecting to client devices.

Should both routers be on same channel?

Make sure the wireless settings of the second router is the same as the first router. Same SSID, same security type, same password. The only difference will be the channel. Moreover, we'll want to make sure the channels are sufficiently far apart.

How can I get the same SSID for multiple access points? (5 Solutions!!)

Can I have multiple access points with the same SSID?

It is permissible to have multiple AP with the same SSID. This is standard practice in a multi-AP environment. You just need to make sure they are on different channels. You can leave them broadcasting if they are both the exact same SSID, or you can disable the broadcast on the second and follow what Mike said.

Can multiple Wi-Fi routers interfere with each other?

If both the existing and second routers are wireless, their Wi-Fi signals can interfere with each other, causing dropped connections and unpredictable network slowdowns. ... To avoid signal interference between two routers in a home, set the first router to use channel 1 or 6 and the second to use channel 11.

Can you have too many mesh points?

Maximum number of points

We recommend a maximum of five Wifi points in a single network. Adding more may be detrimental to Wi-Fi performance. The Google Home app supports only one Wi-Fi network per home, but you can create up to 5 homes, with a single Wi-Fi network in each.

Can you have too many mesh nodes?

It's a good thing and a bad thing. Google Wifi's much larger range per node can be a problem if you have to place them too close together. ... As you move around it can get better or worse, and you can end up scanning and hop from one node to another which can affect your network speed.

Can I have 2 mesh networks?

If you have two ISP connections, and attach two different Google/Nest WiFi routers to them, and build mesh extensions from both of those, then they should work in the same area.

Is mesh WiFi better than access point?

Mesh networks are typically not as fast as a hardwired network. ... But a WAP doesn't have to hop from one node to another like in a mesh network, thus slowing the signal down and potentially hindering reliability, two things you really don't want from your network.

How many access points do I need in my house?

If you are looking for a benchmark to make a rough estimate however, you may approximate one access point per every 1000 square feet. Knowing the area in square feet or meters is a good start. As mentioned above, a very rough estimate is approximately one access point for every 1000 square feet.

What are overlapping channels?

Adjacent-Channel interference occurs when devices from overlapping channels are trying to talk over each other. Channels that have interference from other devices are considered to be 'crowded'. ... Considering the 2.4 GHz band is only 100 MHz wide, the 11 channels of 20 MHz overlap with one another.

Should my 2.4 and 5Ghz same SSID?

Almost all current wireless devices support both 2.4Ghz and 5Ghz frequencies. ... Older 2.4Ghz only devices will just connect to the 2.4Ghz frequency and not even see the 5Ghz frequency, so having the same SSID will work fine for them.

What are the disadvantages of a mesh network?

• It's costly as compared to the opposite network topologies i.e. star, bus, point to point topology.
• Installation is extremely difficult in the mesh.
• Power requirement is higher as all the nodes will need to remain active all the time and share the load.
• Complex process.

How far apart should mesh nodes be?

A good rule of thumb is to place the second node halfway between the router and the dead zone as you would with a range extender, but limit the distance to no more than two rooms, or about 30 feet.

Why are mesh networks bad?

Mesh networks can be complicated to set up. Plus, incorrect setup could leave security and other important systems vulnerable to problems. Additionally, mesh networks are expensive to build. You'll need to buy nodes to cover your entire location.

How many mesh do I need?

To figure out how many mesh WiFi devices to start with, you can follow this general guide: For a small home, approximately 800 sq ft or less: a mesh router and 1 pair of WiFi mesh units. For a mid-sized home, approximately 1,200 sq ft: a mesh router, 1 pair of WWiFi mesh units and 1 node.

Can mesh nodes be too close?

If they are placed too closely together, devices may not smoothly switch (roam) from node to node due to too much overlap between mesh nodes. Too-close placement also means coverage may suffer because APs are not getting close enough to the areas they need to cover. Home construction materials also matter.

Can access points be too close?

Inevitably, your company will experience some overlapping with its access points, especially in heavily condensed areas of your campus. However, whenever it's possible, overlap should be avoided. If you're building your access points too close to each other, you aren't optimizing your access point placement.

Can my neighbors slow down my internet?

Update your router to a new non-used channel

Now that you've found what channels are being used, you can update your router to use a channel that isn't used by one of your neighbors. To update your router, will need to login to your router's setup tool. To do this, typically you will want to enter 192.168.

What is the best channel for WiFi?

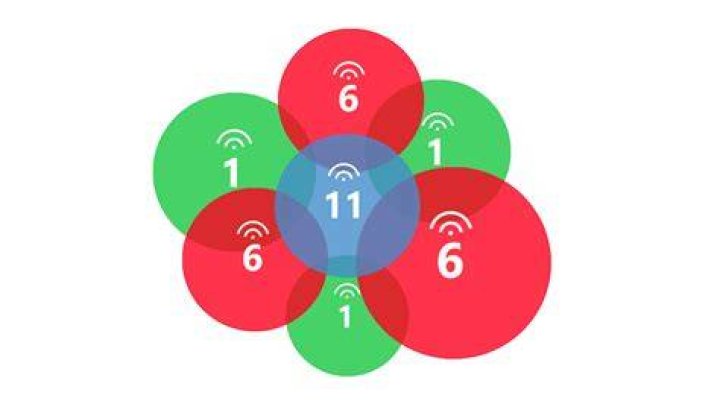

Which channel is best for WiFi? Channels 1, 6, and 11 are the best channels for WiFi in the 2.4 GHz band because they are the only non-overlapping channels available.

How far should routers be from each other?

When in doubt, move your router 5 to 6 feet away from other electronics. Try to position your router so that large metal objects won't come between it and the areas of the house you want coverage. And think about the metal you might not see.

Should I use same SSID for access point?

The APs should be on different channels to avoid interference. If there are other APs in the building, try to minimize co-channel interference by selecting unused channels (if possible). You can use the same SSID, which will make roaming a little easier.

How do I set up multiple access points on the same network?

1. Connect two access points to the same network.
2. Make sure that there is only 1 DHCP server.
3. Use the same wireless network name (SSID) for both AP's.
4. Use the same password and encryption settings for both AP's.
5. Enjoy!
