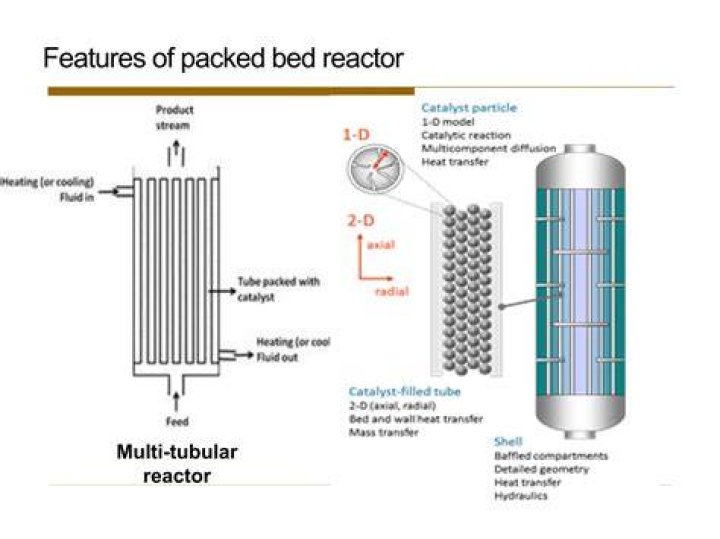

Packed bed reactors can be used in chemical reactions in chemical industries. These reactors are tubular and are filled with solid catalyst particles, most often used to catalyze gas reactions. The chemical reaction takes place on the surface of the catalyst.

What is packed bed reactor used for?

Packed bed reactors are very versatile and are used in many chemical processing applications such as absorption, distillation, stripping, separation processes, and catalytic reactions. Across the diverse applications in which they are used, the physical dimensions of the beds can vary greatly.

What is a packed bed bioreactor?

Packed-bed bioreactors are tubular types of reactors which are packed with immobilized enzyme or microbial cells as biocatalysts. Different techniques such as encapsulation, cross-linking, covalent bonding, and adsorption are generally used for immobilization purposes.

What type of reactor is a packed bed reactor?

Packed bed reactors consist of a cylindrical shell with convex heads. Most are vertical, and allow reactants to flow by gravity. Inside the reactor is an immobilized, or fixed, bed of catalyst . Packed bed reactors are heterogeneous reaction systems.

How does a packed bed bioreactor work?

packed bed bioreactor. In packed bed reactors, cells are immobilized on large particles. These particles do not move with the liquid. ... In these systems, it is necessary to consider the pressure drop across the packed bed or column, and the effect of the column dimensions on the reaction rate.

Packed Bed Reactor (PBR) Molar Balance Equation // Reactor Engineering - Class 10

Is a packed bed reactor a plug flow reactor?

A typical plug flow reactor could be a tube packed with some solid material (frequently a catalyst). Typically these types of reactors are called packed bed reactors or PBR's. ... When a plug flow model can not be applied, the dispersion model is usually employed.

When Should packed bed columns be used?

Packed beds are typically columns filled with a packing material that allows fluids to flow from one end to the other. Frequently used as a means of increasing contact between a liquid and gas.

How big are packed bed reactors?

The actual packing for the experiments is mono-sized spheres of 1.13 and 4.0 mm sizes.

How many types of packed beds are there?

Two main types of packing in a packed column are random packing and structured packing.

Which one is not a use of packed bed?

Which of the following is not a valid operation of packed bed reactors? Explanation: Packed bed reactors are not used as Feedwater heaters, but are definitely used as a Shell and tube setup to cool and heat exothermic or endothermic reactions respectively. 8.

How much does a packed bed reactor cost?

This included defining the installed cost of a fluidized bed reactor to be $10,000 per square Page 22 16 meter of heat transfer surface. Based on this definition, the installed cost of the reactor is entirely dependent on the number of heat transfer tubes utilized.

How do packed columns work?

Packed columns are used for distillation, gas absorption and liquid-liquid extraction. The gas-liquid contact in a packed column is continuous, not stage-wise, as in a plate column. The liquid flows down in the column over a packing surface and the vapor (or the gas) moves counter-currently, up the column.

How does a batch reactor work?

Batch reactors are used for most of the reactions carried out in a laboratory. The reactants are placed in a test-tube, flask or beaker. They are mixed together, often heated for the reaction to take place and are then cooled. The products are poured out and, if necessary, purified.

How does a packed bed work?

The packed bed scrubbers is designed to remove gaseous or vaporous pollutants from an air stream. The process is accomplished by contacting the contaminated air stream with a scrubbing liquor that absorbs or chemically reacts with the pollutants.

What is the difference between packed bed and fluidized bed?

Excellent mixing of reactants in the fluidised bed helps to minimise temperature variations and renders this system attractive for carrying out gas–solid reactions. The fluidised bed reactors show better conversion of reactants in comparison with packed beds when solid reactants are used in the form of small pellets.

What does fixed bed reactor mean?

A fixed bed reactor is a cylindrical tube filled with catalyst pellets with reactants flowing through the bed and being converted into products. ... The flow of a fixed bed reactor is typically downward. Packed bed reactor.

What is packing capacity?

The maximum number of product units within a package.

How do you calculate the volume of a packed bed reactor?

1. Space velocity = flow rate of the reactants/ the reactor volume.
2. GHSV =Hourly volumetric feed gas flow rate/reaction volume.
3. LHSV= Hourly volumetric feed liquid flow rate/reaction volume.
4. WHSV=Hourly mass feed flow rate/ Catalyst mass.

Where are fixed bed reactors used?

Fixed bed reactors are typically used as a secondary reactor unit to treat or upgrade the products from the first reaction unit.

What type of reactor is a PBR?

The pebble-bed reactor (PBR) is a design for a graphite-moderated, gas-cooled nuclear reactor. It is a type of very-high-temperature reactor (VHTR), one of the six classes of nuclear reactors in the Generation IV initiative.

What is packed bed absorber?

A packed bed column contains a support plate, a liquid distributor, and a mist eliminator. The liquid stream flows through a liquid distributor and down the column due to gravity, resulting in counter-flow, cross-flow, or co-current flow.

What is the difference between capillary column and packed column?

The main difference between packed column and capillary column is that, in a packed column, the stationary phase is packed into the cavity of the column whereas, in a capillary column, the stationary phase coats the inner surface of the cavity of the column.

What industries use packed beds?

Packed bed columns are largely employed for absorption, desorption, rectification and direct heat transfer processes in chemical and food industry, environmental protection and also processes in thermal power stations like water purification, flue gas heat utilization and SO2 removal.

What should be the packing size in packed columns?

Recommended size ranges are: Column diameter Use packing size 0.3 m (1 ft) 25 mm (1 in.) 0.3 to 0.9 m (1 to 3 ft) 25 to 38 mm (1 to 1.5 in.) 0.9 m 50 to 75 mm (2 to 3 in.)
