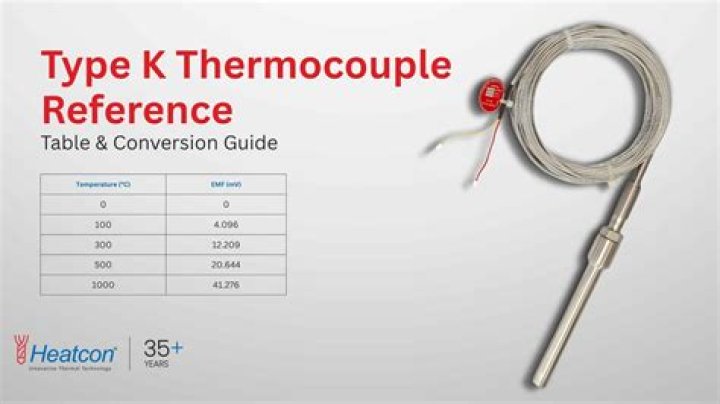

Type K. Type K (chromel–alumel) is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C. It is inexpensive, and a wide variety of probes are available in its −200 °C to +1350 °C (−330 °F to +2460 °F) range.

What are K type thermocouples used for?

Uses of K Type Thermocouple

They are mostly used for applications at temperatures above 550 °C up to the maximum working pressure of the thermocouple. Type K is commonly used in nuclear applications because of its relative radiation hardness.

What is the difference between Type K and J thermocouples?

Whereas a J Type Thermocouple is made up of iron and constantan, K type Thermocouples are composed of a nickel/chromium alloy (chromel) and a nickel/aluminium alloy (alumel) which gives them much better protection against oxidation and acidity than the iron limbs of the Type J.

Are all type K thermocouples the same?

All Thermocouple types work on the same basis, they consist of two wire legs made from dissimilar metals (Nickel-Chromium / Nickel-Alumel in type K) which are fixed together at one end, creating a junction (Fig 1.).

Are type J and type K thermocouples interchangeable?

Type J Thermocouple: The type J is also very common. It has a smaller temperature range and a shorter lifespan at higher temperatures than the Type K. It is equivalent to the Type K in terms of expense and reliability. Type J Accuracy (whichever is greater):

K Type Thermocouple

What is thermocouple K type?

A Type K thermocouple refers to any temperature sensor containing Chromel and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire or another style of sensor or cable.

What is Type K wire?

Type K Thermocouple (Chromel+ / Alumel –) K is the most common type of thermocouple. It's inexpensive, accurate, reliable, and has a wide temperature range. Type K wire is commonly found in food applications because its alloys "do not" rust or oxidize.

How accurate is K type thermocouple?

The accuracy of a K type Thermocouple is typically a maximum of +/- 2.2°C or +/- 0.75%, whichever is greater.

Are there different types of thermocouples?

The American National Standards Institute (ANSI) and the ANSI-accredited American Society for Testing and Materials (ASTM) lists nine main thermocouple types: B, E, J, K, N, R, S, T, and C.

What is the difference between different types of thermocouples?

First, consider the difference in temperature ranges. Noble Metal Thermocouples can reach 3,100 F, while standard RTDs have a limit of 600 F and extended range RTDs have a limit of 1,100 F. Cost: A plain stem thermocouple is 2 to 3 times less expensive than a plain stem RTD.

Do K type thermocouples have polarity?

The most common type is the K type thermocouple which uses chromel and alumel metal alloys for the two types of metal. Well, it turns out that most grades of chromel used in thermocouples. ... It matters, because thermocouples are DC, so there is a polarity.

Is Type K thermocouple linear?

The potential produced by a thermocouple as a function of temperature difference between its two ends is very nearly linear, over a very wide range. The following curve is the "standard response curve" for a type-K thermocouple. The deviations from perfect linearity are significant, however.

How does type K thermocouple work?

A thermocouple circuit contains the two alloy junctions, wire sand connectors and a voltage measuring device. When the two junctions are experiencing different temperatures, measurable current flows through the circuit. ... The other junction, the "hot junction," is exposed to the environment to be measured.

What type of thermocouple is red and blue?

Type T : The Type T thermocouple is having copper as its positive leg and constantan as its negative leg. Such thermocouples are having temperature ranges from -330 till 700 degrees Fahrenheit and color coding is either red or blue.

Which wire is positive on a thermocouple?

The insulation on thermocouple wire is color coded for identification. Common guidelines include that the negative lead in insulated thermocouple wire is red. The positive lead has the color of the thermocouple as well as the overall color of insulated extension grade wire.

How can you tell if a thermocouple is positive or negative?

The thermocouples are marked with a (+) and (-). Also the negative (-) is marked with a red marker. The negative wire is MORE magnetic than the positive wire.

How do you test a thermocouple type K?

Put the meter in ohms or continuity mode; on a good thermocouple, you should see a low resistance reading. If you see more than a few ohms, you probably have a faulty thermocouple. If the reading at room temperature is close to 110 Ω, then you have an RTD on your hands—read on.

What is a Type C thermocouple?

Type C Thermocouples are made from Tungsten Rhenium alloys and designed for extreme high temperatures up to 4,200 F (2315 C). ... The thermocouple materials must be utilized in a hydrogen, inert, or vacuum atmospheres to prevent failure from oxidation.

What is the most accurate thermocouple type?

Accuracy: Type T thermocouples have the tightest accuracy of all the base metal thermocouples at ±1C or ±0.75% whichever is greater. This is followed by Type E (±1.7C or 0.5%) and Types J, K and N (±2.2C or 0.75%) for standard limits of error (per ANSI/ASTM E230).

What is J type thermocouple made of?

Type J thermocouple is a very common and general purpose thermocouple. It has smaller temperature range and a shorter lifespan at higher temperatures. It consist of positive leg made of an Iron wire and negative leg made of an Constantan ( Copper-Nickel ) alloy wire.

What is Type E thermocouple?

The Type E thermocouple is a commonly used thermocouple which provides stronger signal and higher accuracy as compared to Type K and Type J at moderate temperature range of 1000°F and lower. The Type E has higher stability when compared to type K thermocouple due to which it provide good accuracy.
