When resistors are connected in parallel, more current flows from the source than would flow for any of them individually, so the total resistance is lower.

Why is resistance less when resistor are joined in parallel?

Answer Expert Verified

When resistances are connected in parallel the current in the circuit gets parallel branches to go from one point to another across which the potential difference is applied. ... So, the equivalent resistance is less when resistors are connected in parallel.

What happens to resistance when more resistors are added in parallel?

As more and more resistors are added in parallel to a circuit, the equivalent resistance of the circuit decreases and the total current of the circuit increases. Adding more resistors in parallel is equivalent to providing more branches through which charge can flow.

Is resistance in parallel less than in series?

The parallel circuit has very different characteristics than a series circuit. ... The total resistance in a parallel circuit is always less than any of the branch resistances. Adding more parallel resistances to the paths causes the total resistance in the circuit to decrease.

Why is there a decrease in the resistance when two resistors are connected in parallel class 10?

When two resistors are connected in parallel, the effective area of a cross-section through which the current can pass, increases. ... Therefore, any increase in the area of cross-section decreases the resistance.

Why does adding resistors in parallel reduces effective resistance?

Why does resistance increase in series combination and decrease in parallel combination of resistors?

In a series combination, the current has to pass through all the resistors connected. There is no option for the current. Hence, resistance becomes high. In case of parallel combination, the current gets a chance to go through which resistor.

When resistors are connected in parallel the effective resistance?

The effective resistance in parallel combination of two equal resistance is 'p'. Here, the reciprocal of equivalent resistance is the sum of reciprocals of individual resistances 'R'. So, the correct answer is “Option 1”.

When resistors are connected in parallel A is the combined resistance smaller or larger than the individual resistances?

Connecting elements in parallel permits current to pass through only one element. The equivalent resistance is larger than each individual resistance. The equivalent resistance is smaller than each individual resistance.

When a very low value resistance is connected in parallel with very high value resistance What would be the value of equivalent resistance?

If the two resistances or impedances in parallel are equal and of the same value, then the total or equivalent resistance, R_T is equal to half the value of one resistor.

When unequal resistors are connected in parallel in a circuit?

When unequal resistors are connected in parallel across an ideal battery, the potential difference across each is the same. the current flowing in each is the same. the same power is dissipated in each one. the equivalent resistance is the sum of the individual resistances.

Does resistance increase with more resistors?

In a series circuit, adding more resistors increases total resistance and thus lowers current. But the opposite is true in a parallel circuit because adding more resistors in parallel creates more choices and lowers total resistance. If the same battery is connected to the resistors, current will increase.

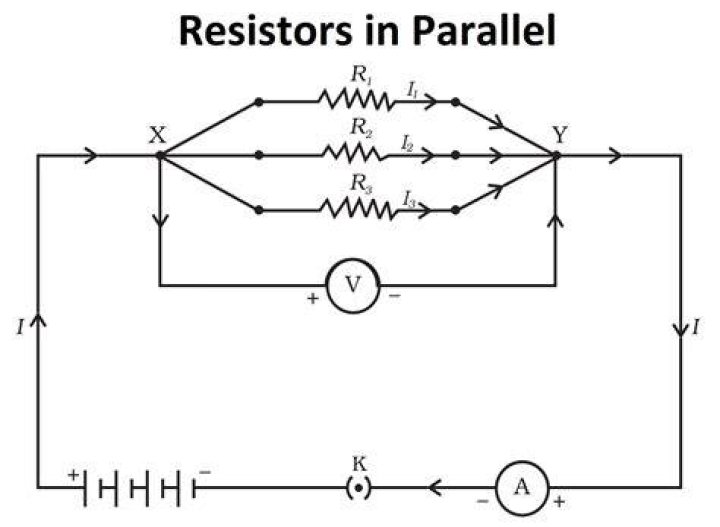

What happens to resistors in parallel?

Resistors in parallel

When resistors are connected in parallel, the supply current is equal to the sum of the currents through each resistor. The currents in the branches of a parallel circuit add up to the supply current. When resistors are connected in parallel, they have the same potential difference across them.

What is the difference between resistance in series and parallel?

In a series circuit, the output current of the first resistor flows into the input of the second resistor; therefore, the current is the same in each resistor. In a parallel circuit, all of the resistor leads on one side of the resistors are connected together and all the leads on the other side are connected together.

What is meant by parallel connection of resistors derive equation of parallel resistance?

In parallel combination, each resistor'sone is connected to the positive terminal while the other end is connected to a negative terminal. The potential difference across each resistance is the same and the current passing through them is different. V = V1 =V2=V3. I = I1+ I2+I3.

When resistors are connected in parallel we can be certain that?

Question: When resistors are connected in parallel, we can be certain that the power dissipated in each is the same, the potential difference across each is the same. their equivalent resistance is greater than the resistance of any one of the individual resistances. the same current flows in each one.

When the number of resistance are connected in parallel the total resistance is?

When a number of resistances are connected in parallel then combined resistance is less than the smallest individual resistance.

When a low resistance is connected in a parallel with a high resistance the combined resistance is?

When resistors are connected in parallel their combined resistance is less than any of the individual resistances. The simpler equation for two resistors in parallel is much easier to use! The combined resistance in parallel will always be less than any of the individual resistances.

What happens to combined resistance when a low resistance is connected in parallel with a high resistance?

Resistance: The obstruction offered to the flow of current is known as the resistance. ... Hence, it is proved that the combined resistance is smaller than the lower resistance.

What is the resistance of two resistors in parallel?

When two resistors are in parallel, the equivalent resistance is the product of the two resistors divided by their sum. When both resistors are the same value, the equivalent parallel resistance is exactly half of the original resistance.

Can the combined resistance of a parallel combination be greater than the individual resistance?

No, because according to the the definition of parallel resistances, the equivalent resistance of parallel combination of resistance is always smaller than a single individual resistance......

When combining multiple resistors in series the equivalent resistance is less than any of the individual resistances?

When combining multiple resistors in series, the equivalent resistance is less than any of the individual resistanes Resistors connected in parallel will always have the same potential difference across all of them. Resistors connected in series will always have the same potential difference across all of them.

How would you connect resistors so that the equivalent resistance is smaller than the least individual resistance?

Q6 How would you connect resistors so that the equivalent resistance is smaller than the individual resistance? Resistors in paralled will provide an equivalent resistance that is smaller than the smallest individual resistance.

When resistors are connected in series the effective resistance increase or decrease?

When two resistors are connected in series, its equivalent resistance increases. Law of combination of resistors connected in series. When two resistors are connected in parallel, its equivalent resistance decreases.

When two 2ohm resistance are in parallel the effective resistance is?

Answer Expert Verified

So, the net effective resistance of 20 resistors connected in parallel connection is 0.

What is the effective resistance in series and parallel combination?

The effective resistance in series combination of two equal resistance is ′s′. When they are joined in parallel the total resistance is p. If s=np then the minimum possible value of ′n′ is. A.
