An anticline is a downwarped fold. A syncline is an upwarped fold. In a syncline, the youngest rocks are on the limbs of the structure. ... In a plunging anticline, the oldest rock layers are found near the fold axis.

Are anticlines folds?

most common structural traps are anticlines, upfolds of strata that appear as inverted V-shaped regions on the horizontal planes of geologic maps. About 80 percent of the world's petroleum has been found in anticlinal traps.

What is a recumbent fold?

A recumbent fold has an essentially horizontal axial plane. When the two limbs of a fold are essentially parallel to each other and thus approximately parallel to the axial plane, the fold is called isoclinal.

What are the upward folds called?

An anticline is a fold that is convex upward, and a syncline is a fold that is concave upward.

How are anticlines and synclines different?

In structural geology, a syncline is a fold with younger layers closer to the center of the structure, whereas an anticline is the inverse of a syncline. A synclinorium (plural synclinoriums or synclinoria) is a large syncline with superimposed smaller folds.

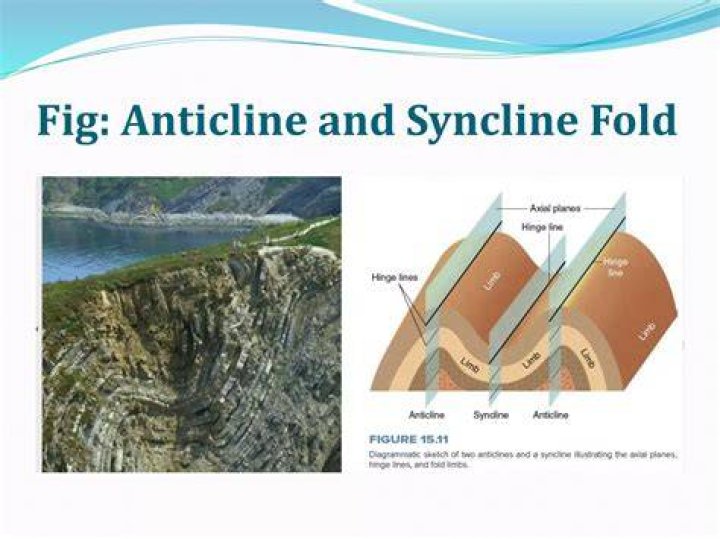

Anticline and Syncline Folds

What is Isoclinal fold?

or isocline, a fold in sedimentary rocks where the axial surface and limbs slope in the same direction and at approximately the same angle. Isoclinal folds are formed under conditions of intensive lateral compression or with slipping brought about by the force of gravity.

How does a syncline fold occur?

A syncline is the downward arc or curve of a fold. A fold, in geology, is a bend in a rock layer caused by forces within the crust of the earth. ... If “undisturbed” by events such as tilting or faulting, among others, a fold should have its crown or crest as the anticline and the trough of its structures as the syncline.

How does an anticline form?

An anticline is a structural trap formed by the folding of rock strata into an arch-like shape. The rock layers in an anticlinal trap were originally laid down horizontally and then earth movement caused it to fold into an arch-like shape called an anticline. ... Anticlinal shape.

What is the fold of the rock strata in anticline and syncline geologic folding?

In an anticline, the oldest strata occurs directly below the fold axis and it gets progressively younger in both directions away from the fold axis. In a syncline, the strata is youngest directly below the fold axis and is gets older symmetrically away from it.

What is the name for an anticline or syncline that has been tilted by tectonic forces?

A plunging anticline or a plunging syncline is one that has its axis tilted from the horizontal so that the fold dips into the earth.

How do you identify an anticline?

On a geologic map, anticlines are usually recognized by a sequence of rock layers that are progressively older toward the center of the fold because the uplifted core of the fold is preferentially eroded to a deeper stratigraphic level relative to the topographically lower flanks.

What does anticline mean in science?

: an arch of stratified rock in which the layers bend downward in opposite directions from the crest — compare syncline.

What are the 3 types of folds?

There are three basic types of folds (1) anticlines, (2) synclines and (3) monoclines.

What is anticline and syncline in a fold mountain?

Anticlines and synclines are the most common up-and-down folds that result from compression. An anticline has a ∩-shape, with the oldest rocks in the center of the fold. A syncline is a U-shape, with the youngest rocks in the center of the fold. Domes and basins are often considered types of folds.

Is antiform and anticline the same?

Terminology. Any fold whose form is convex upward is an antiform. Antiforms containing progressively younger rocks from their core outwards are anticlines.

What is an anticline quizlet?

an anticline is. a FOLD shaped like an ARCH with the YOUNGEST rocks exposed in the center of the fold. a syncline is. a TROUGH-SHAPED fold with the YOUNGEST rocks exposed in the center of the fold. a structure in which the beds dip away from a central point and the oldest rocks are exposed in the center is called an.

How do you identify a fold?

On the map, a fold is generally recognized by symmetrical repetition of beds (Concept 4.1A) across a line, i.e., the trace of axial plane (or the axial trace). Concept 4.1B distinguishes folded- and unfolded- terrains. Concept 4.1A. Box diagrams of (A) non-plunging fold and (B) plunging fold.

Which among the following is an example of anticline fold?

Examples include the Late Jurassic to Early Cretaceous Purcell Anticlinorium in British Columbia and the Blue Ridge anticlinorium of northern Virginia and Maryland in the Appalachians, or the Nittany Valley in central Pennsylvania.

What is folding in geography?

Folding: Is a type of earth movement resulting from the horizontal compression of rock layers by internal forces of the earth along plate boundaries.

Which fold is depicted by the figure below?

11. Which fold is depicted by the figure below? Explanation: The above figure can be observed to be horizontal strata showing a single bend for a limited length and attain the horizontal attitude once again. This is nothing but monocline.

What are the limbs of a fold?

The limbs are the sides of the fold that display less curvature. The inflection point is the area on the limbs where the curvature changes direction. The axial surface is an imaginary plane connecting the hinge of each layer of rock stratum through the cross sectional anticline.

What is an anticline Why are they important?

Circular upfolds in the rocks are called "domes." Anticlines are important types of "structural traps" in petroleum geology, as petroleum migrating up the dip along a flank of the fold is trapped at the crest. ... Such large basins are natural centers for thick accumulations of sedimentary rocks.

Which type of deformation is folding?

Which type of deformation is folding? Explanation: In general, folding is a ductile type of deformation experienced by the rocks compared to the brittle deformation where the rocks actually get broken and displaced when stressed.

What is similar fold?

A fold in which the orthogonal thickness of the folded strata is greater in the hinge than in the limbs, but the distance between any two folded surfaces is constant when measured parallel to the axial surface. Similar folds show thinning on the limbs and thickening at the axes. ...

What is a box fold?

A rectangular, conjugate fold in which the inter-limb angles approximate to right angles. The fold has two angular hinges and three limbs.
