In option B, one carbon atom is sp3 hybridized. It has tetrahedral geometry. Hence, in this molecule, all atoms are not coplanar. So, the correct answer is option B.

In which of the following molecules are the atoms not all in one plane?

We know that in tetrahedral geometry, all the atoms are not in one plane.

In which of the following molecules all the bonds are not equal?

In ClF₃ all bonds are not equal due to trigonal -bipyramidal (sp³d-hybridisation) geometry of ClF₃ molecule. BF₃ and AlF₃ show trigonal symmetric structure due to sp²-hybridisation. NF₃ shows pyramidal geometry due to sp³ hybridization.

Are all atoms in benzene coplanar?

Atoms, groups, bonds, or other objects lying within the same plane are periplanar or coplanar. All twelve atoms of benzene are planar. ... Despite its bond-line structure drawing, in its lowest energy conformation cyclohexane is a chair, and not planar.

What are coplanar carbons?

Coplanar just means that the atoms in the molecule are on the same flat surface when visualized. An even number of carbon atoms in the molecule given leads to coplanar hydrogen atoms because the terminal C-C pi bonds are parallel to each other, and this can only occur with an even x value.

NEET-UG Phase 2 2016 - Video Solution for Chemistry questions 76 & 77

In which of the following molecule group is not coplanar with phenyl ring?

The Questions and Answers of In which of the following molecules – NO2 group is not coplanar with phenyl ring ? a)b)c)d)Correct answer is option 'C'.

Are all bonds equal in BF4?

Answer: In (ii), BF4- the bond is not equal. ... (ii) In BF4-, the boron has 3 electrons which makes the covalent bond with 4 fluorides. (III) In C2H4, there are C-C sigma bond and four C-H sigma bond.

In which of the following all the bond angles are not equal?

Thus all the bond in SF4 are not equal.

Which of the following molecules or ions is not linear?

CS2​ is linear whereas H2​S is non-linear.

Which of the following molecule does not have a linear arrangement of atoms?

The correct option is : a H2S Explanation:For linear arrangement of atoms the hybridisation is sp. bond angle = 180°.

Are alkenes coplanar?

Alkenes 1. Alkenes, 6 coplanar atoms. All atoms in same plane except for these hydrogens on sp³ carbon. Planar ring structure.

What atoms are coplanar in a peptide bond?

All of the atoms immediately bound to the peptide bond are forced to be coplanar. The six coplanar atoms are the carbonyl carbon, the carbonyl oxygen, the peptide bond nitrogen, the hydrogen bound to that nitrogen, and the two adjacent α carbons.

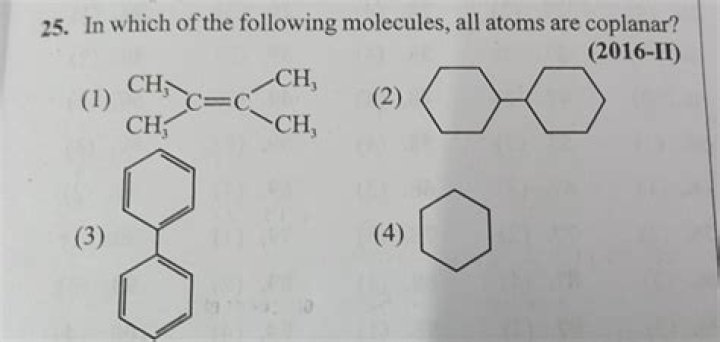

In which of the following molecules are all atoms in the same plane?

In BF3 B-atom is sp2 hybridised with bond angle 120∘ and is triangular planar in shape So, all atoms lie in one plane .

Which of the following do not obey octet rule?

Some elements that disobey the octet rule include, Hydrogen, Lithium, Phosphorus and Sulphur. An ion, atom, or a molecule that contain an unpaired valence electron, i.e., a free radical, so these species do not obey the octet rule.

Which molecule has all of its atoms in one plane?

Cumulene is an entirely planar molecular class, but allene is more stable as a twisted conformer. As a note, a cumulene can have three OR MORE consecutive double bonds. Here, butatriene has all atoms in the same plane, and in principle, a cumulene is entirely planar.

In which of the following molecules all bond lengths are not equal in PCl5 sf6 bcl3 ccl4?

The correct answer is b. In ClF3 all bonds are not equal due to trigonal-bipyramidal (sp^3d − hybridisation) geometry of ClF3 molecule.

Which of the following is not tetrahedral?

SO2−4.

In which of the following species the interatomic bond angles is 109 28?

So, NH+ and BF−4 has bond angle 109^o 28^'.

How many bonds are there in structure?

There are four types of bonds or interactions: ionic, covalent, hydrogen bonds, and van der Waals interactions. Ionic and covalent bonds are strong interactions that require a larger energy input to break apart.

Are all bonds equal in PCl5?

All the p - cl bonds in PCl5 molecule are not equivalent.

What is the structure of BF4?

BF4 is the molecular formula of boron tetraflouride. Boron tetraflouride has tetrahedral structure. Boron has 3 valence electrons, and each of the four fluorides involves with one electron to each covalent bond. The overall negative charge of the molecule involves with another electron.

Is benzaldehyde a coplanar?

In addition to this intensity alternation, the lack of long sequences of any nontotally symmetric mode and the analysis of the Franck—Condon envelope show that the triplet benzaldehyde does not deviate far from the ground state geometry. We conclude it is coplanar or nearly so.

How do you know if an organic compound is planarity?

So a general simple rule is that: the molecule will not be planar if there is an sp3 hybridized carbon (or nitrogen) atom or two sp2 hybridized atoms of carbon/nitrogen which are separated by an even number of double bonds and no single bonds. Otherwise, its structure allows it to be planar.

What do you mean by coplanar in chemistry?

Coplanar means in the same plane. If atoms in a molecule are in the same plane, they are said to be coplanar. For example:In benzene all the carbon atoms are coplanar.
