A wet bulb thermometer measures the extent of cooling that happens as moisture dries from a surface (evaporative cooling). The wet bulb temperature is always lower than the dry bulb temperature except when there is 100% relative humidity. bulb temperature is more accurate measurement of product temperature.

What is wet and dry bulb thermometer used for?

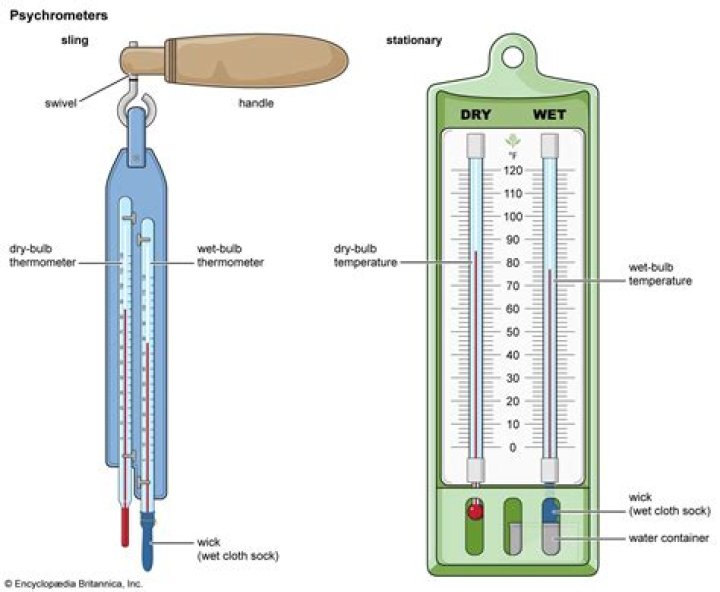

The Wet and Dry Bulb Thermometer is also a hygrometer, which is simply an instrument used to measure the relative humidity of the atmosphere. It consists of two thermometers, one with a bulb that is kept dry and one that is kept moist.

How do you measure wet bulb temperature with a thermometer?

Wet Bulb temperature can be measured by using a thermometer with the bulb wrapped in wet muslin. The adiabatic evaporation of water from the thermometer and the cooling effect is indicated by a "wet bulb temperature" lower than the "dry bulb temperature" in the air.

Why is it called a wet bulb temperature?

The term wet bulb comes from a way the measurement can be taken, by wrapping a piece of wet cloth around the end of a thermometer to see how much evaporation can decrease the temperature. “The idea here is that you and I are essentially wet bulbs,” Schneider said. “We cool ourselves by evaporation.”

How does a wet/dry bulb thermometer work?

A dry thermometer has the bulb exposed to air. A wet thermometer has the bulb covered with a muslin cloth which is dipped in water. It is used to measure the relative humidity of temperature. When air is saturated, evaporation stops and the two bulbs show the same reading.

Science of Moisture in Air: Using Dry and Wet Bulb to Measure Air Temperature and Moisture

What is the difference between wet bulb and dry bulb temperature?

Wet bulb temperature is the lowest temperature to which air can be cooled by the evaporation of water into the air at a constant pressure. ... The dry bulb temperature is the ambient temperature. The difference between these two temperatures is a measure of the humidity of the air.

What are wet bulb conditions?

'Wet bulb' conditions occur when it's too hot and humid for sweat to evaporate. Humans typically stay cool by sweating. ... When that humidity is combined with high heat (88 degrees Fahrenheit or higher), it's called wet bulb conditions. Such conditions can be fatal, and they're happening earlier than anticipated.

What wet bulb temperature tells us?

The wet-bulb temperature is defined as the temperature of a parcel of air cooled to saturation (100% relative humidity) by the evaporation of water into it, with the latent heat supplied by the parcel. A wet-bulb thermometer indicates a temperature close to the true (thermodynamic) wet-bulb temperature.

What is normal wet bulb temperature?

Today, wet bulb temperatures do not often exceed 88 °F (31 °C). But even recent heat waves with wet bulb temperatures of 85-88 °F (29-31 °C) have killed tens of thousands of people, and they have reached 95 °F (35 °C) for short periods in some places.

How do you read a wet and dry bulb thermometer?

Set the thermometers in front of the fan as before. After 5 minutes record the “wet bulb” temperature reading and the “dry bulb” temperature reading. 4. To determine relative humidity subtract the lower “wet bulb” temperature from the higher “dry bulb” temperature to determine the difference and compare to the chart.

How do you calculate wet bulb temperature from dry bulb temperature?

The technique is to first find the dewpoint depression (temperature minus dewpoint). Then take this number and divide by 3. Subtract this number from the temperature. You now have an approximation for the wet-bulb temperature.

Is dew point and wet bulb the same?

The key difference between dewpoint and wet bulb temperature is that dewpoint temperature is the temperature to which we should cool the air to saturate the air with water vapor whereas wet bulb temperature is the temperature that we get from a moistened thermometer bulb that is exposed to air flow.

What is a wet bulb used for?

The measured wet bulb is a function of relative humidity and ambient air temperature. Wet bulb temperature essentially measures how much water vapor the atmosphere can hold at current weather conditions.

What is RH humidity?

Put simply, relative humidity (RH) is a measure of the water vapor content of air. More explicitly, it is the amount of water vapor present in air expressed as a percentage (%RH) of the amount needed to achieve saturation at the same temperature.

What temperature is normal?

The average normal body temperature is generally accepted as 98.6°F (37°C). Some studies have shown that the "normal" body temperature can have a wide range, from 97°F (36.1°C) to 99°F (37.2°C). A temperature over 100.4°F (38°C) most often means you have a fever caused by an infection or illness.

What does DB and WB mean?

DB = Dry-bulb; the temperature of air without taking account for evaporation/relative humidity. WB = Wet-bulb; the temperature of the air with the evaporative effect of a “wet bulb” taken into account.

What is the difference between DPT and WBT?

Answer: i) WBT: Wet bulb Temperature twb : It is the temperature recorded by a thermometer when its bulb is covered by a wet cloth exposed to the air. ii) DPT: Dew point temperature tdp :It is the temperature of air recorded by thermometer, when the moisture (water vapour) present in its, begins to condensed.

Why is dew point lower than wet bulb temperature?

The evaporation from the wet muslin is reduced when air contains more water vapor. The Wet Bulb temperature is always between the Dry Bulb temperature and the Dew Point.

What is dew point vs humidity?

The dew point is the temperature the air needs to be cooled to (at constant pressure) in order to achieve a relative humidity (RH) of 100%. At this point the air cannot hold more water in the gas form.

What is a dry bulb thermometer?

The dry-bulb temperature (DBT) is the temperature of air measured by a thermometer freely exposed to the air, but shielded from radiation and moisture. ... Unlike wet-bulb temperature, dry bulb temperature does not indicate the amount of moisture in the air.

What are the three types of temperature?

There are three temperature scales in use today, Fahrenheit, Celsius and Kelvin.

How is dew point calculated?

It is calculated by dividing the total mass of water vapor by the volume of the air. Given the same amount of water vapor in the air, the absolute humidity does not change with the temperature at a fixed volume.

What temperature is dew point?

The dewpoint temperature is the temperature at which the air can no longer "hold" all of the water vapor which is mixed with it, and some of the water vapor must condense into liquid water. The dew point is always lower than (or equal to) the air temperature.

How do you find the dew point temperature?

Td = T - ((100 - RH)/5.) where Td is dew point temperature (in degrees Celsius), T is observed temperature (in degrees Celsius), and RH is relative humidity (in percent).
